Coilhose Pneumatics PE2510-2500B Polyethylene Tube 5/32 in

Product Description

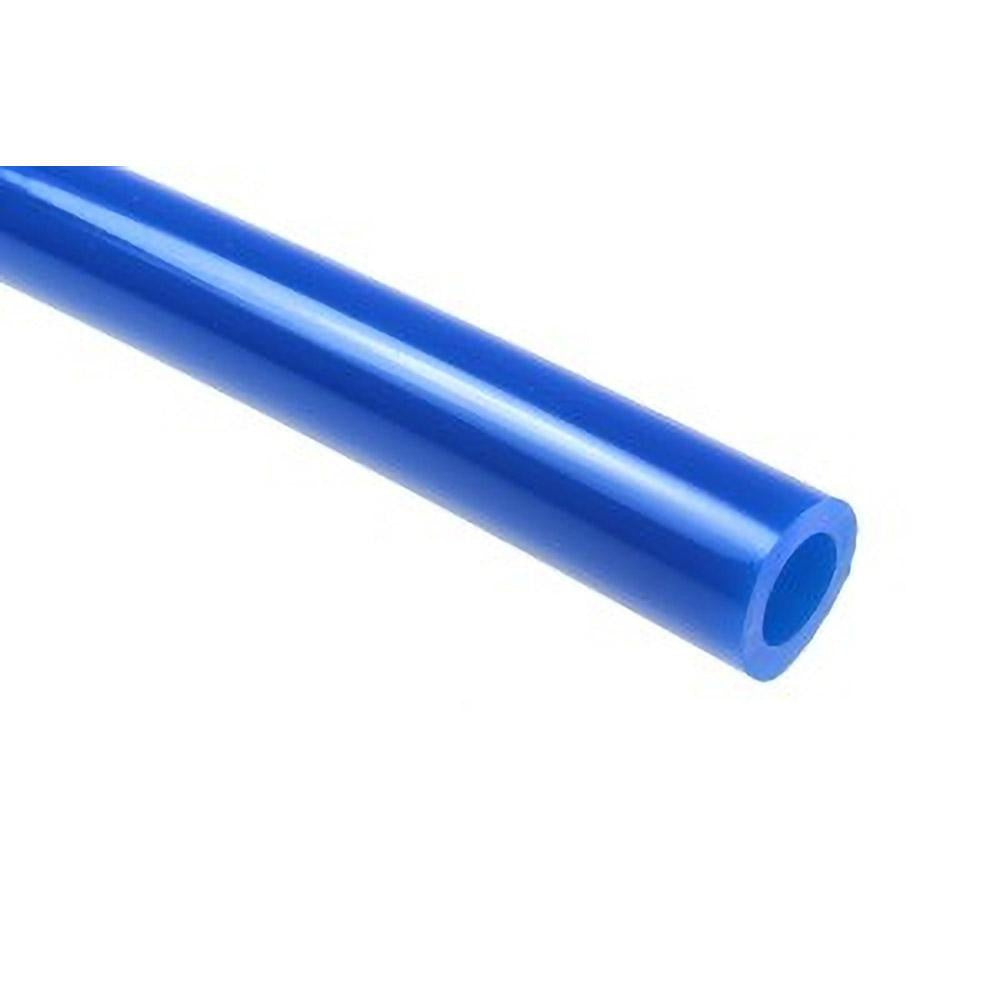

The COILHOSE PNEUMATICS PE2510-2500B is a flexible polyethylene pneumatic tubing designed for use in compressed air and fluid transfer applications. Available in a 2,500-foot coil and priced in 1-foot increments with a 25-foot minimum cut length, this tubing measures 5/32 inch OD with a 0.106 inch ID and a 0.025 inch wall thickness. It handles up to 150 psi working pressure and operates across a temperature range of -40 to 150 degrees F. The blue color aids in line identification during installation. Licensed HVAC technicians, plumbers, and pneumatic system installers typically specify this tubing for instrument air, control lines, and pneumatic signal circuits.

This tubing is suited for light industrial and commercial pneumatic systems where a flexible, chemical-resistant line is needed. Its Shore 50D hardness keeps it pliable enough for routing through tight spaces while maintaining dimensional stability under normal working pressures. The tubing is rated FDA compliant and meets NSF-51 standards, making it acceptable for applications with incidental food contact. It is compatible with Coilock push-to-connect fittings and poly-tube fittings, allowing fast, tool-free termination. Sold off the 2,500-foot master coil in 1-foot increments, with a 25-foot minimum cut length per order.

Key Features

• 150 psi maximum working pressure for standard pneumatic control circuits
• Wide service temperature range of -40 to 150 degrees F
• FDA compliant and NSF-51 certified for incidental food-contact environments
• Shore 50D hardness provides flexibility without kinking during routing
• Compatible with Coilock push-to-connect and poly-tube fittings for tool-free connections
• Blue color for easy line identification in multi-circuit installations

Compatibility

Designed for use with Coilock push-to-connect fittings and poly-tube fittings. Suitable as a general-purpose pneumatic control line in residential, commercial, and light industrial systems requiring 5/32 inch OD flexible polyethylene tubing.

Installation Notes

Installation is typically performed by licensed pneumatic, HVAC, or plumbing technicians. Depressurize and isolate the pneumatic circuit completely before cutting or connecting tubing. Use a clean, square cut with a dedicated tubing cutter to ensure a proper seal in push-to-connect fittings. Avoid routing near sharp edges or heat sources that could exceed the 150 degrees F rated service temperature.
