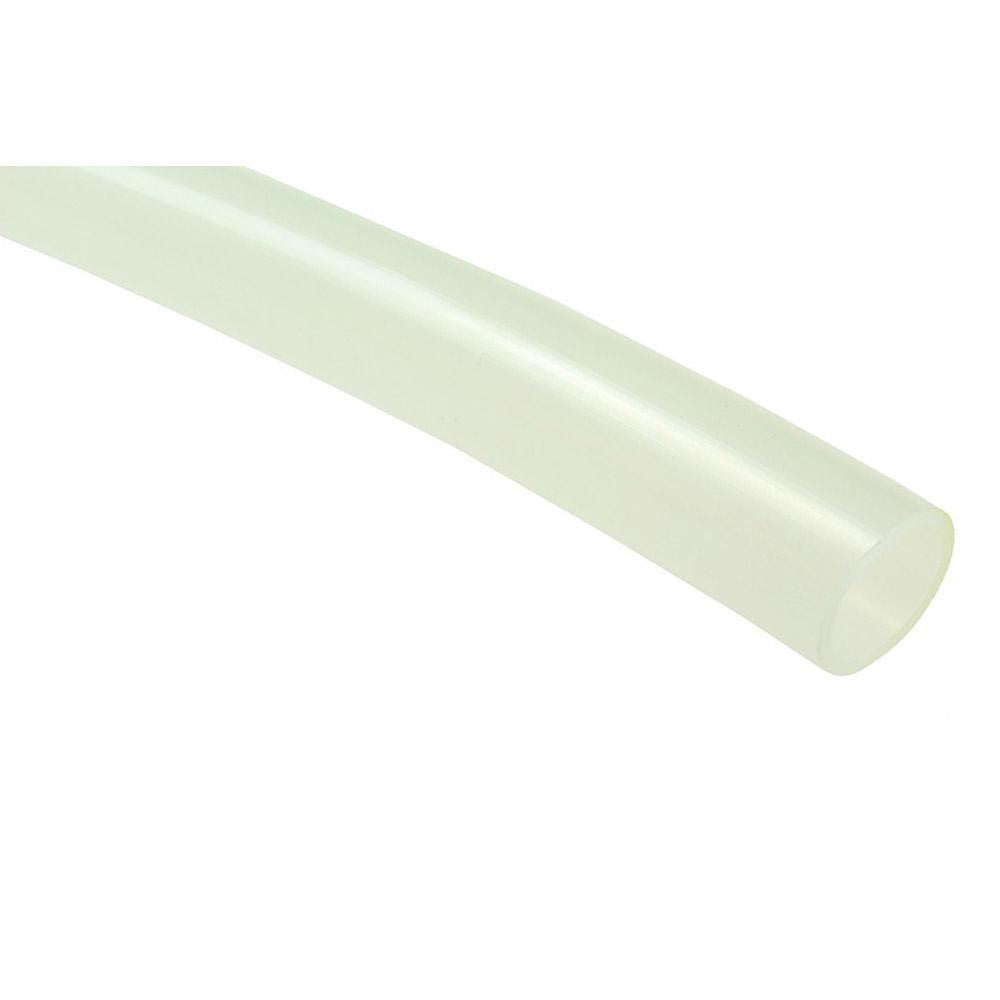

Coilhose Pneumatics PE1215-500N Polyethylene Tube 500 Ft

Product Description

The COILHOSE PNEUMATICS PE1215-500N is a flexible polyethylene pneumatic tube rated for a maximum working pressure of 113 psi and a temperature range of -40 to 150 degrees F. With a 12.00 mm outside diameter, 9.00 mm inside diameter, and a 1.50 mm wall thickness, this natural-color tubing is well suited for compressed air distribution and fluid transfer lines in industrial and commercial environments. Shore 50D hardness provides flexibility without sacrificing structural integrity under pressure. The tubing is sold in 1-foot increments with a 25-foot minimum cut length from a 500-foot coil.

This tubing is designed for use in pneumatic plumbing systems where lightweight, flexible routing is required. It is compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings. Typical applications include shop air lines, machine feed lines, and pneumatic tool supply runs in manufacturing, maintenance, and light industrial settings. FDA compliance and NSF-51 certification make it appropriate for food-contact and food-processing environments where tubing may come into incidental contact with food or potable water systems.

Key Features

• Maximum working pressure of 113 psi for standard compressed air service
• Wide operating range from -40 to 150 degrees F suits cold storage and heated industrial spaces
• FDA compliant and NSF-51 certified for food-processing and food-contact applications
• Shore 50D hardness delivers flexible routing with reliable kink resistance
• Compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings for fast assembly
• Available in continuous 500-foot coil, sold in 1-foot increments with 25-foot minimum cut

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings as specified by the manufacturer.

Installation Notes

Installation is typically performed by industrial mechanics, maintenance technicians, or plumbers working on compressed air or fluid distribution systems. Always depressurize and lock out the air supply before cutting or connecting tubing. Use a clean, square cut with a tube cutter or sharp blade to ensure a proper seal at push-to-connect fittings. Verify that all fittings and connections comply with applicable local codes before returning the system to service.
