Coilhose Pneumatics PE1215-500K Polyethylene Tube 500 Ft

Product Description

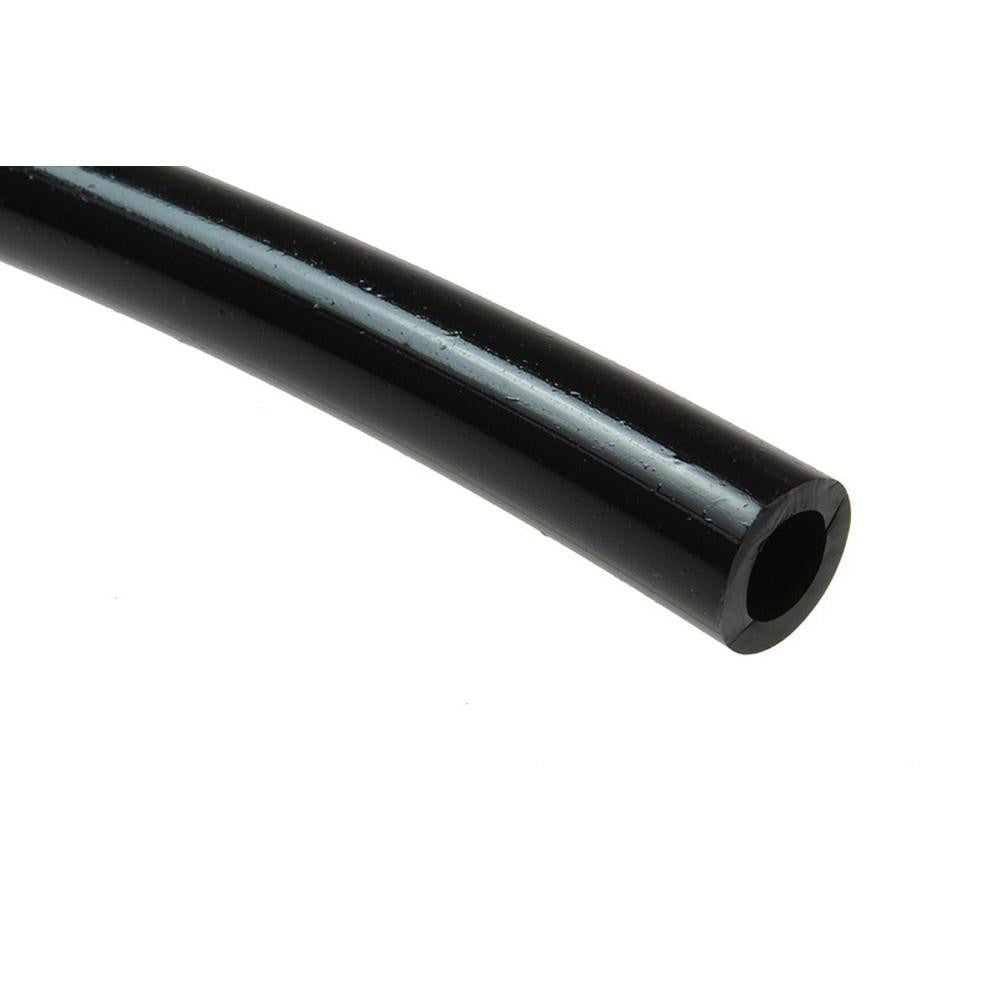

The COILHOSE PNEUMATICS PE1215-500K is a black polyethylene pneumatic tubing sold in a 500-foot coil and priced in 1-foot increments with a 25-foot minimum cut length. It handles a maximum working pressure of 113 psi and operates across a temperature range of -40 degrees F to 150 degrees F. The tubing has an outside diameter of 12.00 mm (approximately 0.47 inches), an inside diameter of 9.00 mm (approximately 0.35 inches), and a wall thickness of 1.50 mm (approximately 0.06 inches). Its flexible construction and Shore 50D hardness make it well suited for compressed-air distribution lines in pneumatic control and automation systems. Installation is performed by pneumatic technicians and maintenance mechanics.

This tubing is used in industrial and commercial pneumatic systems where a flexible, pressure-rated supply or distribution line is needed. It is rated for use with Coilock push-to-connect fittings and poly-tube fittings, making it a direct fit for modular pneumatic plumbing setups. The 500-foot coil length supports bulk runs across larger facilities or equipment layouts. Its FDA and NSF-51 compliance also makes it appropriate for food-processing and food-adjacent environments where tubing materials must meet safety standards.

Key Features

• Maximum working pressure of 113 psi for standard compressed-air service
• Wide temperature range: -40 degrees F to 150 degrees F
• Flexible polyethylene construction with Shore 50D hardness for easy routing
• Outside diameter of 12.00 mm and inside diameter of 9.00 mm
• Sold in a 500-foot coil, priced per 1-foot increment with 25-foot minimum cut
• FDA and NSF-51 compliant for food-safe applications

Compatibility

Rated for use with Coilock push-to-connect fittings and poly-tube fittings as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified pneumatic technician or maintenance mechanic. Depressurize and lock out the air supply before cutting or connecting tubing. Use a clean, square tube cut to ensure a proper seal with push-to-connect fittings. Do not exceed the rated working pressure of 113 psi or operate outside the stated temperature limits.
