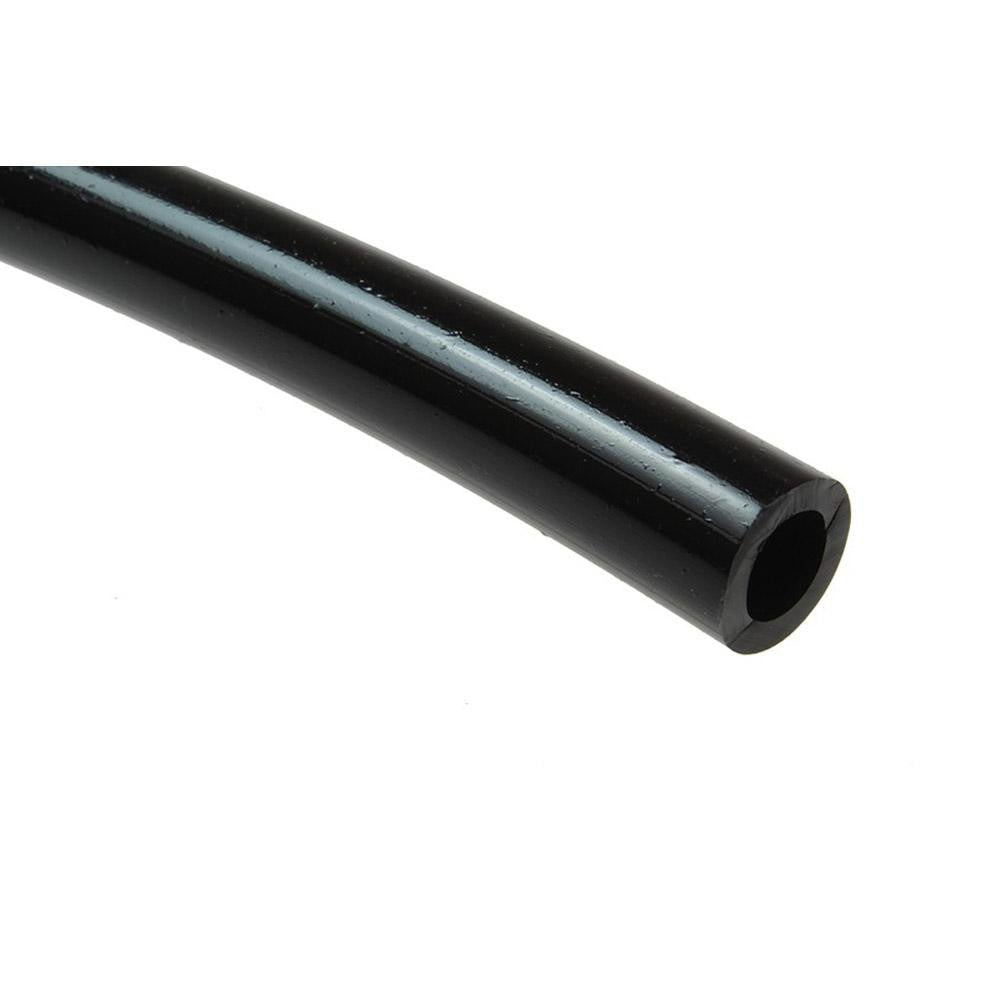

Coilhose Pneumatics PE1010-500K Polyethylene Tube 90 Psi

Product Description

The COILHOSE PNEUMATICS PE1010-500K is a flexible black polyethylene tube rated for pneumatic and fluid transfer applications in industrial and commercial settings. Built to handle a maximum working pressure of 90 psi and a temperature range of -40 to 150 degrees F, this tubing handles demanding shop and plant environments. The outside diameter measures 10.00 mm (approximately 0.394 inches), the inside diameter is 8.00 mm (approximately 0.315 inches), and the wall thickness is 1.00 mm (approximately 0.039 inches). Shore 50D hardness gives it a balance of flexibility and kink resistance. Licensed plumbers, pipefitters, and pneumatic system technicians are the primary installers.

This tubing is sold in 1-foot increments with a 25-foot minimum cut length and comes on a 500-foot total coil. It is suited for compressed air distribution lines, low-pressure pneumatic control circuits, and fluid conveyance in residential, commercial, and light industrial systems. The PE1010-500K is FDA compliant and NSF-51 listed, making it appropriate for use in food-contact and potable-water-adjacent environments where those certifications are required. Compatible with Coilhose Coilock push-to-connect fittings and Poly-Tube fittings as stated by the manufacturer.

Key Features

• Maximum working pressure of 90 psi for standard pneumatic and fluid service
• Wide temperature range of -40 to 150 degrees F for cold-storage and heated-space installations
• FDA compliant and NSF-51 listed for food-contact and sanitary applications
• Shore 50D hardness provides flexibility without excessive kink susceptibility
• 500-foot coil with 1-foot increment pricing and 25-foot minimum cut length
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings

Compatibility

Designed for use with Coilhose Coilock push-to-connect fittings and Poly-Tube fittings as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified pneumatic or plumbing technician following applicable codes including OSHA 29 CFR 1910.169 for compressed air systems. Depressurize and lock out the air supply before cutting or connecting tubing. Use a clean, square cut to ensure full insertion and a leak-free seal at push-to-connect fittings. Do not exceed the rated working pressure or temperature limits of 90 psi and 150 degrees F.
