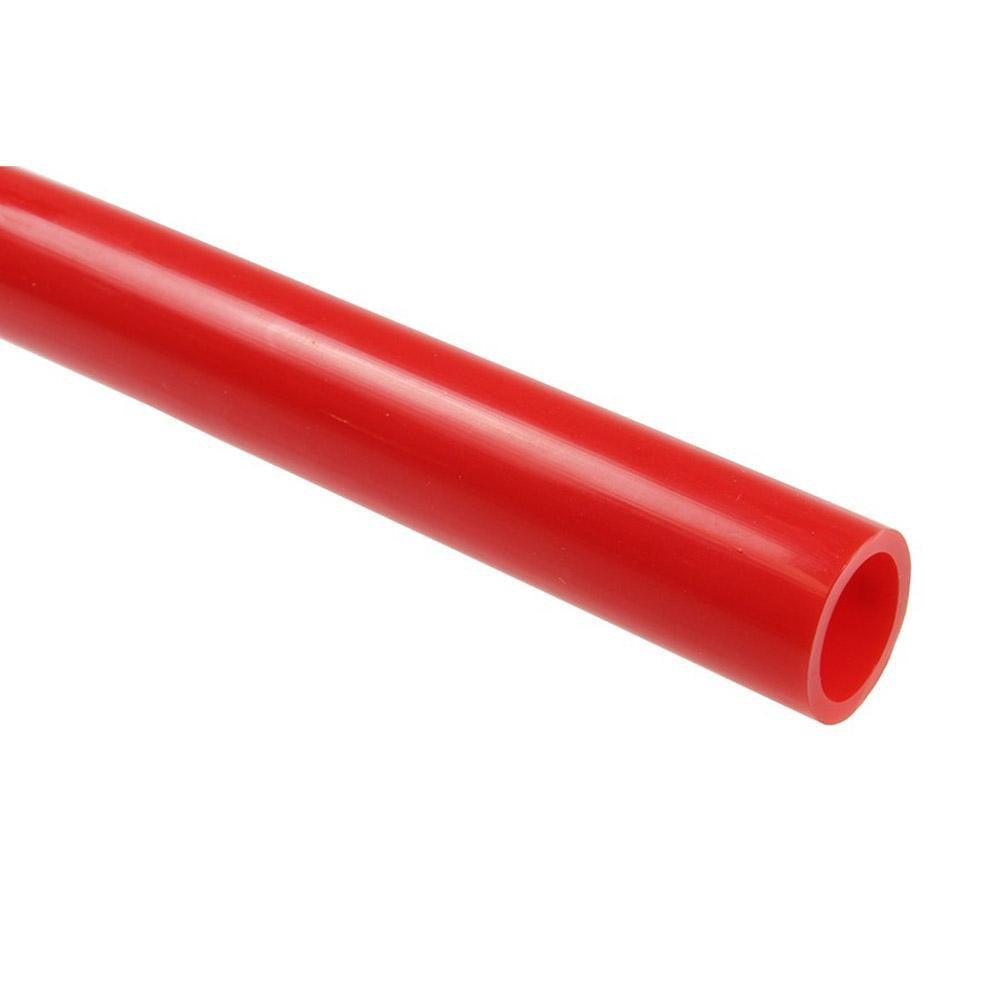

Coilhose Pneumatics PE086-500R Polyethylene Tube 500 Ft Red

Product Description

The COILHOSE PNEUMATICS PE086-500R is a flexible polyethylene pneumatic tube supplied in a 500-foot coil. It measures 3/8 inch inside diameter and 1/2 inch outside diameter, with a wall thickness of 1/16 inch. Rated to 90 psi maximum working pressure and suitable for temperatures ranging from -40 degrees F to 150 degrees F, this tube is engineered for compressed air distribution and fluid transfer in light industrial and pneumatic plumbing applications. The Shore 50D hardness rating reflects a balance of flexibility and kink resistance. It carries FDA and NSF-51 compliance, making it appropriate for applications where food-grade material standards apply. Licensed plumbers, pipefitters, and pneumatic system technicians are the primary installers.

This tube is designed for use with Coilock push-to-connect fittings and standard poly-tube fittings, making it a common choice for compressed air runs, pneumatic control lines, and light fluid conveyance in manufacturing, processing, and mechanical rooms. The 500-foot coil length suits larger installations or shops that cut to length on demand. The red color coding helps differentiate this line from other tubing runs in multi-line installations. It is sold in 1-foot increments with a 25-foot minimum cut length per order.

Key Features

• 3/8 inch ID x 1/2 inch OD with 1/16 inch wall thickness for consistent flow and pressure ratings
• 90 psi maximum working pressure for standard compressed air service
• Operating range of -40 degrees F to 150 degrees F suits a wide range of indoor and outdoor environments
• FDA and NSF-51 compliant material supports food-grade and sanitary system use
• Compatible with Coilock push-to-connect fittings and poly-tube fittings for tool-free connections
• Red color coding aids identification in multi-line pneumatic installations
• 500-foot coil allows on-site custom cutting to minimize waste

Compatibility

Designed for use with Coilock push-to-connect fittings and poly-tube fittings as specified by the manufacturer.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or qualified pneumatic system technicians. Depressurize and lock out the air supply before cutting into any existing line or connecting to an active system. Use a clean, square cut to ensure a proper seal at push-to-connect fittings — a tubing cutter designed for plastic tube is recommended over a utility knife. Verify that system pressure does not exceed the 90 psi working pressure rating of this tube under any operating condition.
