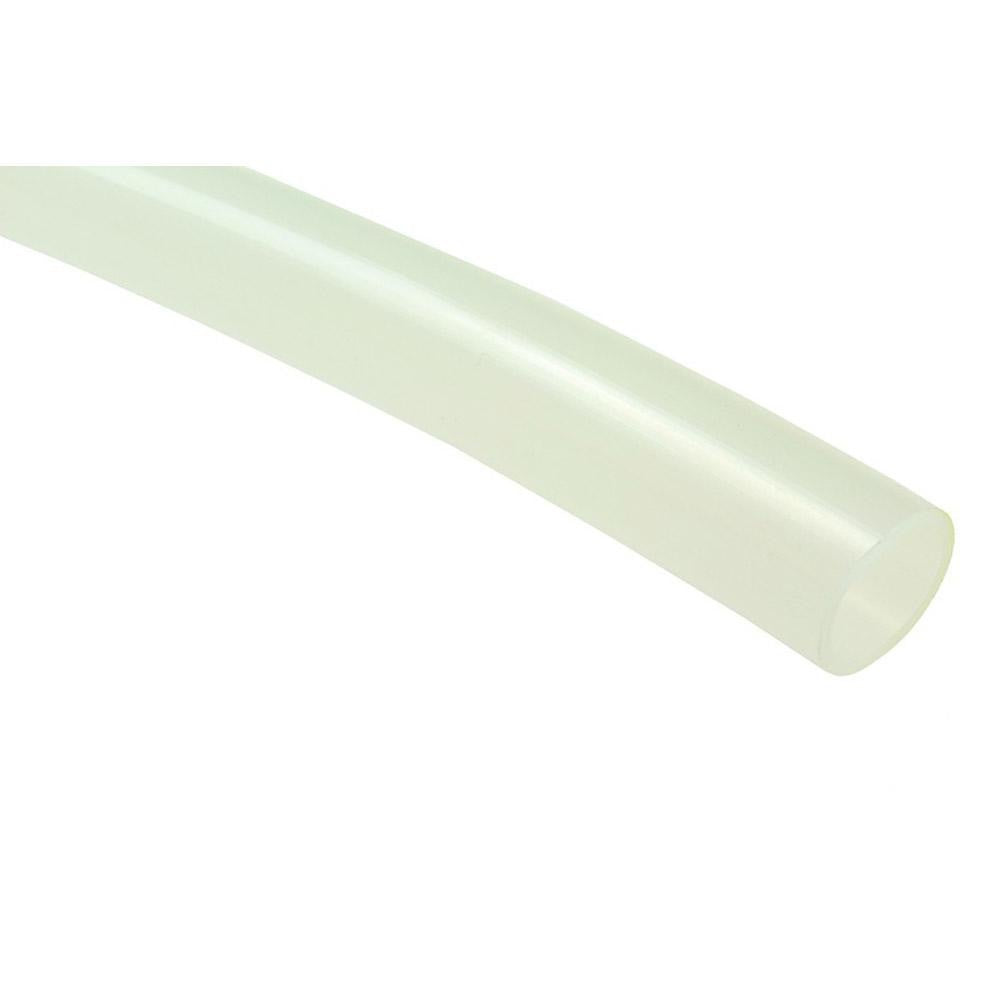

Coilhose Pneumatics PE0810-500N Polyethylene Tube 500 Ft

Product Description

The COILHOSE PNEUMATICS PE0810-500N is a flexible polyethylene pneumatic tube designed for low-pressure air distribution and fluid transfer applications. Rated to 125 psi maximum working pressure, it operates across a wide temperature range of -40 to 150 degrees F, making it suitable for both indoor and outdoor pneumatic systems. The tube features an 8.00 mm outside diameter, 6.00 mm inside diameter, and a 1.00 mm wall thickness. With a Shore 50D hardness rating and a natural color finish, this tubing is sold in 1-foot increments with a 25-foot minimum cut length from a 500-foot coil. Licensed plumbers, pipefitters, and pneumatic system technicians commonly install this product in compressed air distribution lines.

This polyethylene tube is well suited for light-duty pneumatic circuits in industrial, commercial, and light manufacturing environments. It is compatible with push-to-connect Coilock fittings and standard poly-tube fittings, making it a straightforward choice for routing air from compressors to tools, actuators, or control valves. The natural color allows for visual inspection of the line and easy identification separate from color-coded specialty circuits. Its flexible construction simplifies routing through tight spaces or around equipment frames without the need for heat or special bending tools.

Key Features

• 125 psi maximum working pressure for light-duty pneumatic air lines
• Wide service temperature range: -40 to 150 degrees F
• 8.00 mm OD, 6.00 mm ID, 1.00 mm wall thickness for consistent flow capacity
• Shore 50D hardness provides flexible yet kink-resistant routing
• FDA compliant and NSF-51 listed for applications where food-contact safety matters
• Compatible with Coilock push-to-connect fittings and poly-tube fittings for tool-free connections
• Sold by the foot with a 25-foot minimum cut length from a 500-foot coil

Compatibility

Designed for use with Coilock push-to-connect fittings and standard poly-tube fittings. No specific system model compatibility data was provided beyond fitting type.

Installation Notes

Installation is typically performed by pneumatic system technicians, pipefitters, or experienced maintenance personnel. Depressurize and lock out the compressed air supply completely before cutting, connecting, or disconnecting any tubing. Use a clean, square cut with a dedicated tube cutter to ensure a proper seal at push-to-connect fittings. Verify that all fittings and connectors are rated for the system working pressure before returning the line to service.
