Coilhose Pneumatics PE0810-500K Polyethylene Tube 125 Psi

Product Description

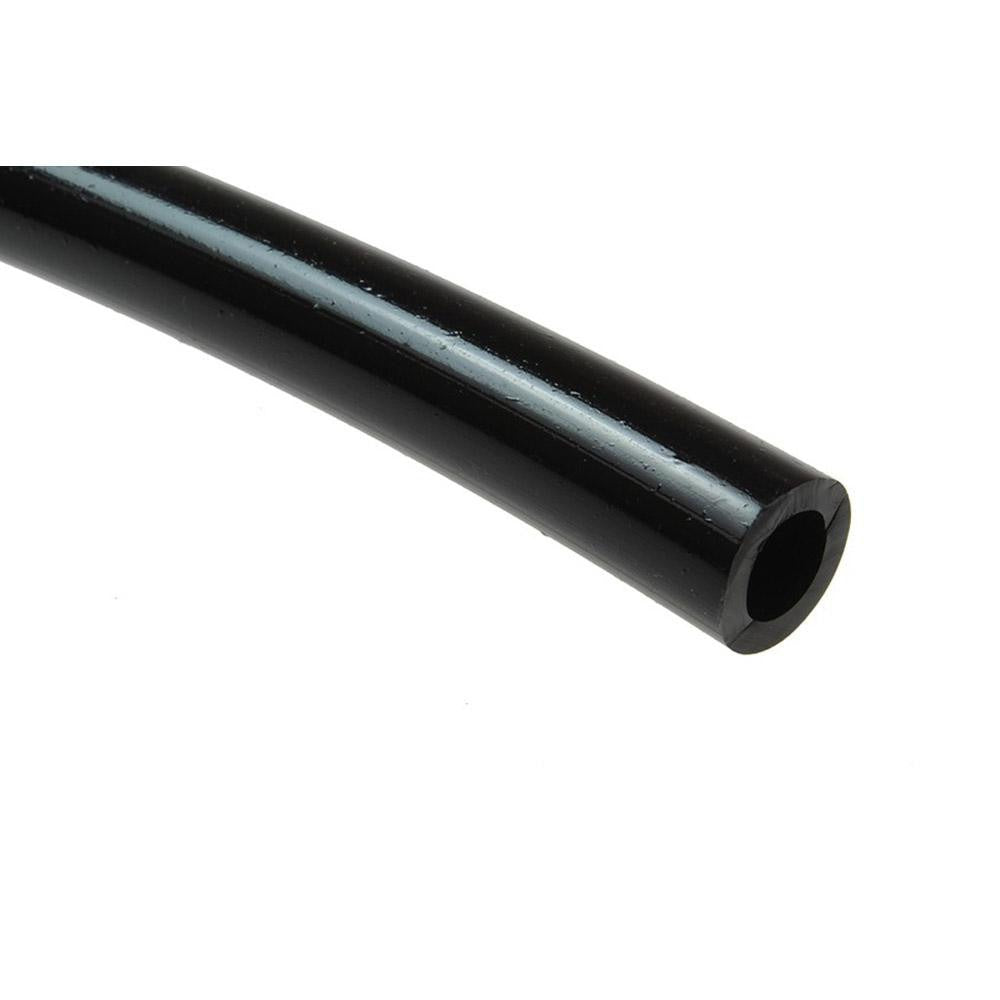

The COILHOSE PNEUMATICS PE0810-500K is a flexible black polyethylene tubing supplied in a 500-foot coil and sold in 1-foot increments with a 25-foot minimum cut length. Rated to 125 psi maximum working pressure and built to handle temperatures from -40 to 150 degrees F, this tube is suited for compressed air distribution, pneumatic control lines, and fluid transfer applications in industrial and commercial environments. The 8 mm outside diameter and 1 mm wall thickness provide a consistent bore for reliable flow. Compliance with FDA and NSF-51 standards makes it appropriate for food-adjacent service lines where regulatory requirements apply. Licensed pneumatic technicians and industrial mechanics are the primary installers.

This tubing is designed for use with Coilock push-to-connect fittings and poly-tube fittings, making it a direct fit into pneumatic plumbing systems that rely on those connection styles. Its flexible Shore 50D hardness allows routing through tight spaces and around obstructions without kinking under normal installation conditions. The 500-foot coil format suits shops, facilities, or job sites where longer continuous runs or multiple drops are needed from a single source. It is sold in 1-foot increments with a 25-foot minimum cut length per order.

Key Features

• 125 psi maximum working pressure for standard compressed air service
• Temperature range of -40 to 150 degrees F supports cold storage and warm industrial environments
• 8 mm outside diameter, 6 mm inside diameter, 1 mm wall thickness for consistent bore geometry
• FDA and NSF-51 compliant polyethylene construction for food-adjacent applications
• Compatible with Coilock push-to-connect fittings and poly-tube fittings
• Flexible Shore 50D hardness allows routing in tight or irregular spaces
• 500-foot coil with 1-foot increment pricing and 25-foot minimum cut length

Compatibility

Designed for use with Coilock push-to-connect fittings and poly-tube fittings. Suitable for compressed air and pneumatic control line installations requiring 8 mm OD flexible polyethylene tubing.

Installation Notes

Installation is typically performed by pneumatic technicians or industrial mechanics. Depressurize the system fully before cutting into an existing line or replacing tubing. Use a clean, square cut with a dedicated tubing cutter to ensure proper seating in push-to-connect fittings. Verify that all fittings and system components are rated for the working pressure of the application before pressurizing.
