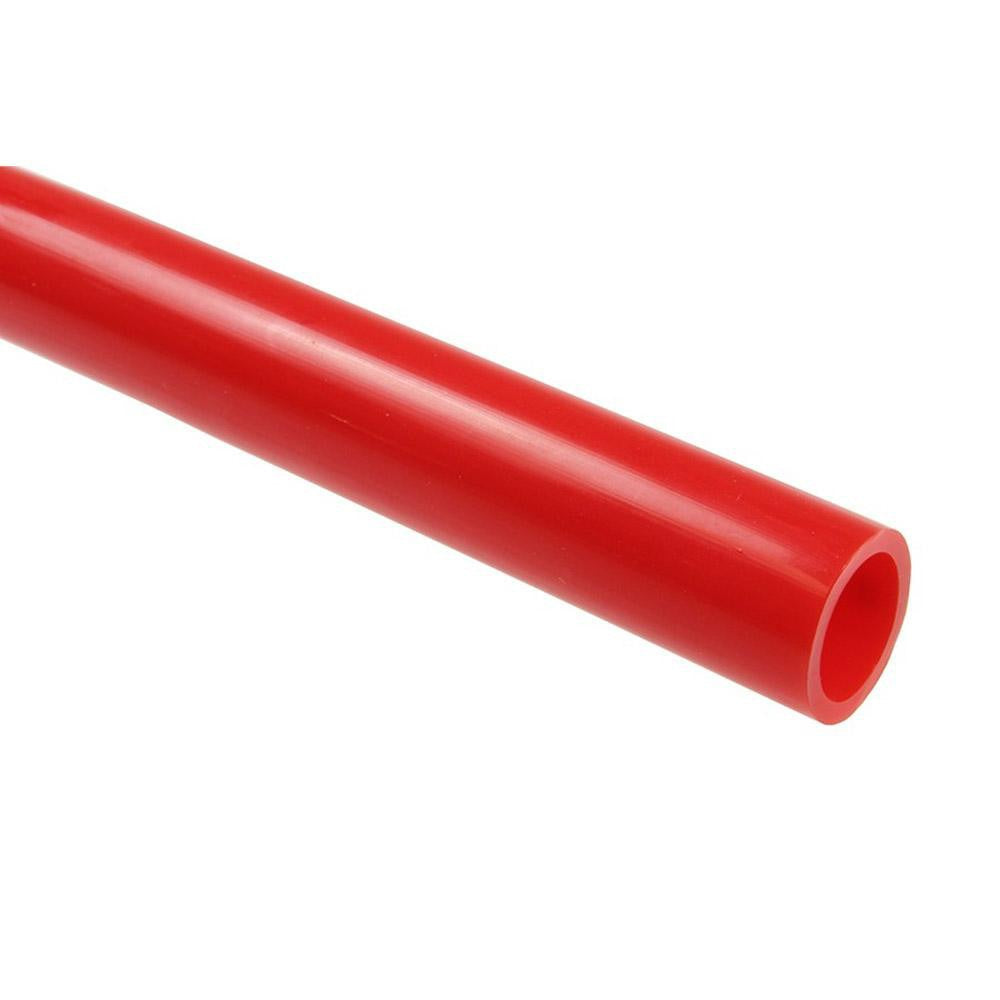

Coilhose Pneumatics PE064-500R Polyethylene Tube 500 Ft

Product Description

The COILHOSE PNEUMATICS PE064-500R is a flexible polyethylene pneumatic tube rated for general-purpose compressed air and fluid transfer applications. It measures 0.25 inches inside diameter and 0.375 inches outside diameter, with a wall thickness of 0.0625 inches. The tube carries a maximum working pressure of 120 psi and operates across a temperature range of -40 to 150 degrees F. Sold from a 500-foot coil in 1-foot increments with a 25-foot minimum cut length, it is a standard stocking item for plumbing and HVAC shops, pneumatic system integrators, and industrial maintenance teams. Shore 50D hardness gives it firm but flexible handling characteristics in tight routing paths.

This tubing is designed for use in compressed air distribution lines, pneumatic control circuits, and low-pressure fluid transfer systems. It is compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings, making it a direct-fit choice for shops already running those fitting systems. The red color aids circuit identification in multi-line installations. FDA and NSF-51 compliance expands its suitability to food-processing and potable-water-adjacent environments where material certification is required by code or inspection protocol.

Key Features

• 120 psi maximum working pressure for standard compressed air service
• Temperature range of -40 to 150 degrees F suits most indoor and unheated space installations
• Shore 50D hardness — flexible enough to route around obstacles without kinking
• Red color coding simplifies identification in multi-line pneumatic panels
• FDA and NSF-51 compliant material for food-service and potable-water-adjacent applications
• Compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings. Suitable as a general-purpose polyethylene pneumatic tube in compressed air and low-pressure fluid transfer systems requiring 1/4 inch ID by 3/8 inch OD tubing.

Installation Notes

Installation is typically performed by pneumatic system technicians or industrial maintenance personnel. Cut tubing squarely with a tube cutter or sharp shear to ensure a leak-free seat in push-to-connect fittings — angled or ragged cuts are the most common cause of fitting leaks. Depressurize and isolate the circuit before cutting into an active line or replacing a run. Verify that fitting body ratings match the 120 psi working pressure of this tube before completing the assembly.
