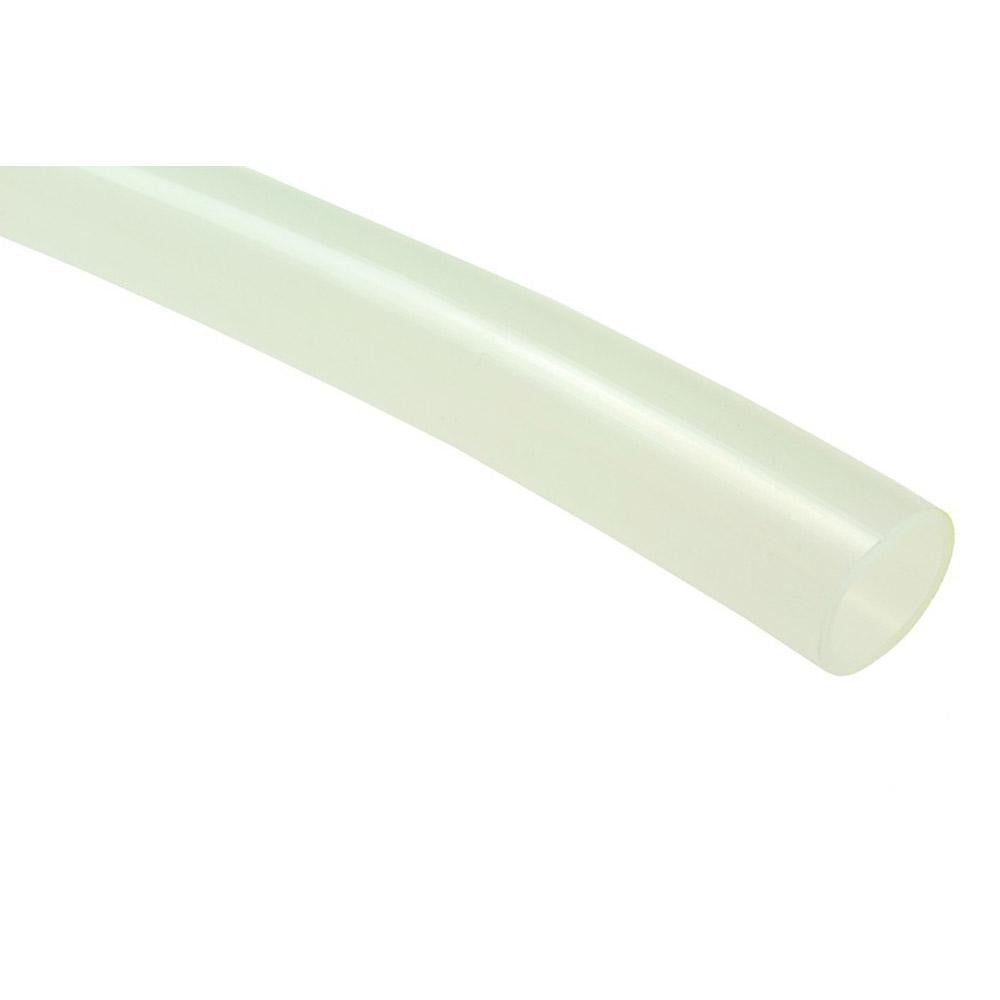

Coilhose Pneumatics PE064-500N Polyethylene Tube 500 Ft

Product Description

The COILHOSE PNEUMATICS PE064-500N is a flexible polyethylene pneumatic tube designed for use in compressed air and fluid transfer applications. It measures 0.25 inches inside diameter and 0.375 inches outside diameter, with a wall thickness of 0.0625 inches. Rated for a maximum working pressure of 120 psi and a temperature range of -40 degrees F to 150 degrees F, this tube handles demanding shop and field environments. The natural color finish suits general-purpose routing in industrial and commercial pneumatic systems. It is sold in a 500-foot coil, priced per 1-foot increment, with a 25-foot minimum cut length. HVAC technicians, plumbers, and industrial pipefitters commonly install this type of tubing in low-pressure control line and instrument air runs.

This polyethylene tube is used in residential and commercial settings wherever lightweight, flexible tubing is needed for compressed air distribution, pneumatic controls, or fluid transfer. It is rated FDA and NSF-51 compliant, making it suitable for applications with incidental food or potable water contact requirements. The tube is compatible with Coilock push-to-connect fittings and Poly-Tube fittings, allowing fast, tool-free connections in pneumatic control panels, HVAC equipment rooms, and light industrial plumbing runs. Shore 50D hardness provides enough rigidity for clean routing while remaining hand-bendable without kinking.

Key Features

• 0.25 inch ID and 0.375 inch OD with 0.0625 inch wall thickness for consistent flow and pressure retention
• 120 psi maximum working pressure for compressed air and low-pressure fluid service
• -40 degrees F to 150 degrees F operating range handles cold storage and heated mechanical room environments
• FDA and NSF-51 compliant for food-contact and potable water adjacent installations
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings for tool-free assembly
• 500-foot coil with 25-foot minimum cut length reduces waste on large jobs

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings. Suitable as a general-purpose flexible pneumatic and fluid transfer tube in applications requiring 3/8 inch OD polyethylene tubing.

Installation Notes

Installation is typically performed by licensed HVAC technicians, industrial pipefitters, or plumbers depending on the application. Depressurize and lock out the compressed air or fluid system before cutting or connecting tubing. Use a clean, square tube cut to ensure a proper seal at push-to-connect fittings. Verify that all fitting ratings are compatible with the system operating pressure and temperature before commissioning.
