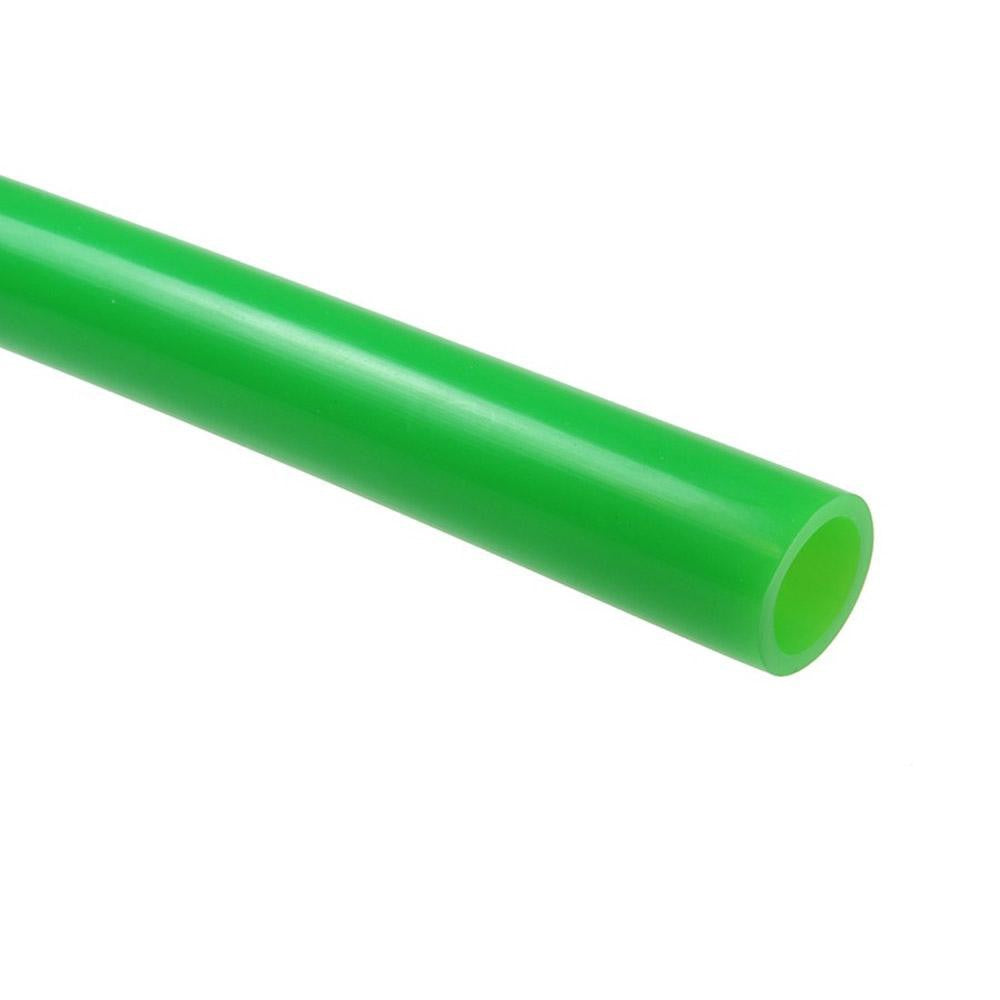

Coilhose Pneumatics PE064-500G Polyethylene Tube 500 Ft

Product Description

The COILHOSE PNEUMATICS PE064-500G is a flexible polyethylene pneumatic tube rated for a wide range of industrial and shop-air applications. It measures 0.25 inches inside diameter and 0.375 inches outside diameter, with a wall thickness of 0.0625 inches. The tubing is supplied in a 500-foot coil, color-coded green for easy line identification. It carries a maximum working pressure of 120 psi and operates across a temperature range of -40 to 150 degrees F. Priced and cut in 1-foot increments, with a 25-foot minimum cut length, this tubing is a practical choice for pneumatic installers and maintenance technicians who need a known-compatible, FDA-compliant flexible tube solution.

This tubing is designed for use in compressed-air distribution, pneumatic tool supply lines, and light industrial plumbing runs. Its flexibility and Shore 50D hardness make it well-suited for routing through tight spaces in production environments, maintenance shops, and machine installations. The PE064-500G is compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings, making it straightforward to terminate without specialized tooling. It meets FDA and NSF-51 standards, which also makes it suitable for food-processing and potable-water-adjacent installations where material compliance is required.

Key Features

• 0.25 inch ID x 0.375 inch OD with 0.0625 inch wall thickness for consistent dimensional tolerance
• Rated to 120 psi maximum working pressure
• Operating range of -40 to 150 degrees F suits year-round shop and field use
• FDA compliant and NSF-51 listed for food-contact and potable-water-adjacent applications
• Compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings for tool-free termination
• 500-foot coil with 1-foot increment pricing and 25-foot minimum cut length
• Green color coding simplifies line identification in multi-run installations

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings as specified by the manufacturer.

Installation Notes

Installation is typically performed by pneumatic system technicians or maintenance mechanics. Depressurize and lock out the air supply before cutting into or modifying any existing pneumatic line. Use a clean, square tube cutter rather than a blade to ensure a burr-free end for proper fitting seal. Confirm that all fittings and downstream components are rated for at least the system operating pressure before pressurizing the completed assembly.
