Coilhose Pneumatics PE064-500B Polyethylene Tube 500 Ft

Product Description

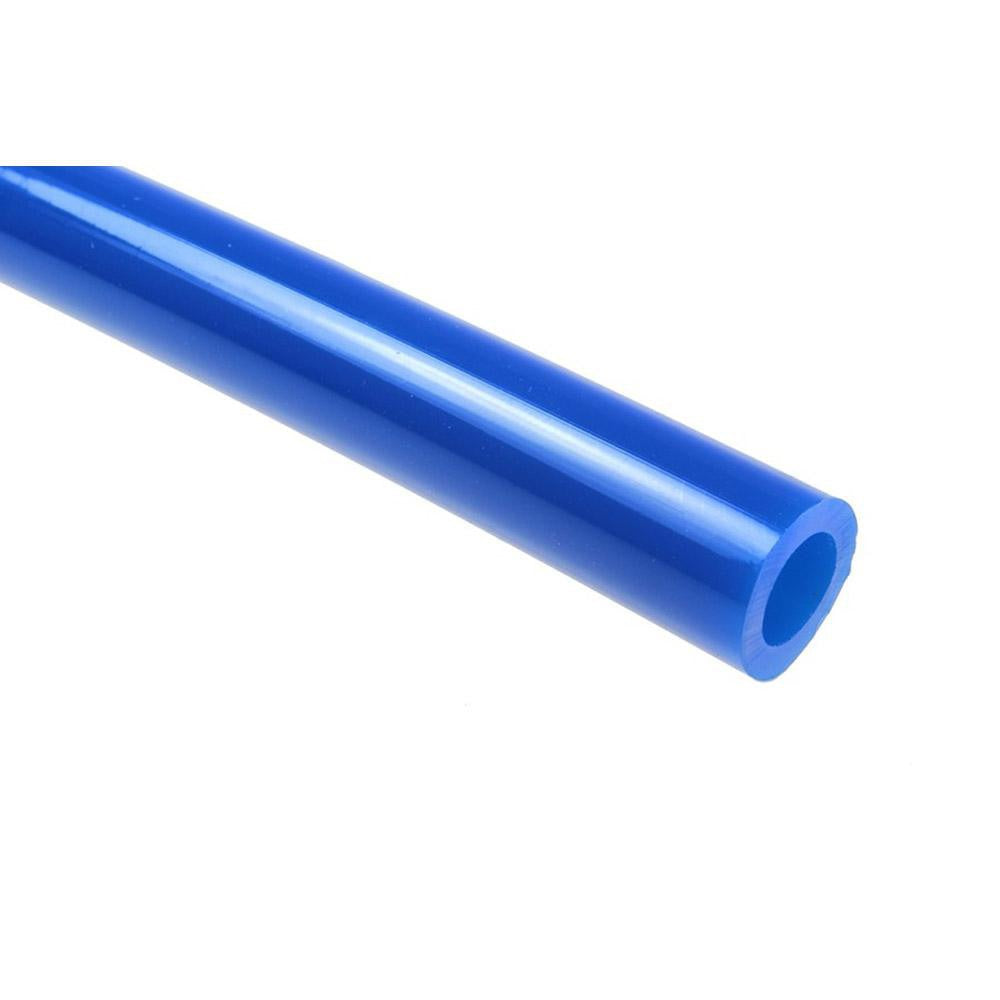

The COILHOSE PNEUMATICS PE064-500B is a flexible blue polyethylene tubing sold in a 500-foot coil, priced and cut in 1-foot increments with a 25-foot minimum cut length. It measures 0.25 inches inside diameter and 0.375 inches outside diameter, with a wall thickness of 0.0625 inches. Rated to 120 psi maximum working pressure and tested across a temperature range of -40 to 150 degrees F, this tube is suited for pneumatic distribution lines and low-pressure fluid transfer applications. The Shore 50D hardness rating reflects a balance of flexibility and resistance to kinking. Licensed plumbers, HVAC technicians, and pneumatic systems installers use this tubing in both service and new-installation work.

This tubing is designed for use with Coilock push-to-connect fittings and Poly-Tube fittings, making it a straightforward fit in modular pneumatic plumbing systems. Its FDA and NSF-51 compliance makes it appropriate for applications where incidental food or potable water contact is a consideration. Common install scenarios include compressed air distribution in light industrial and commercial settings, pneumatic control lines, and refrigeration or HVAC ancillary tubing runs where polyethylene is the specified material.

Key Features

• Flexible polyethylene construction with Shore 50D hardness — resists kinking without being rigid
• 120 psi maximum working pressure for pneumatic and low-pressure fluid service
• Wide operating temperature range: -40 to 150 degrees F
• FDA and NSF-51 compliant for food-contact and potable water-adjacent applications
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings
• Sold from a 500-foot coil in 1-foot increments; 25-foot minimum cut length

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings. Suitable as a standard polyethylene pneumatic tubing solution in systems requiring 1/4 inch ID by 3/8 inch OD flexible tube.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or pneumatic systems specialists. Depressurize and isolate the air or fluid supply line completely before cutting or connecting tubing. Use a clean, square tube cut to ensure proper seating in push-to-connect fittings and to prevent leaks. Follow applicable codes, including ANSI and local mechanical codes, when routing tubing through walls or mechanical spaces.
