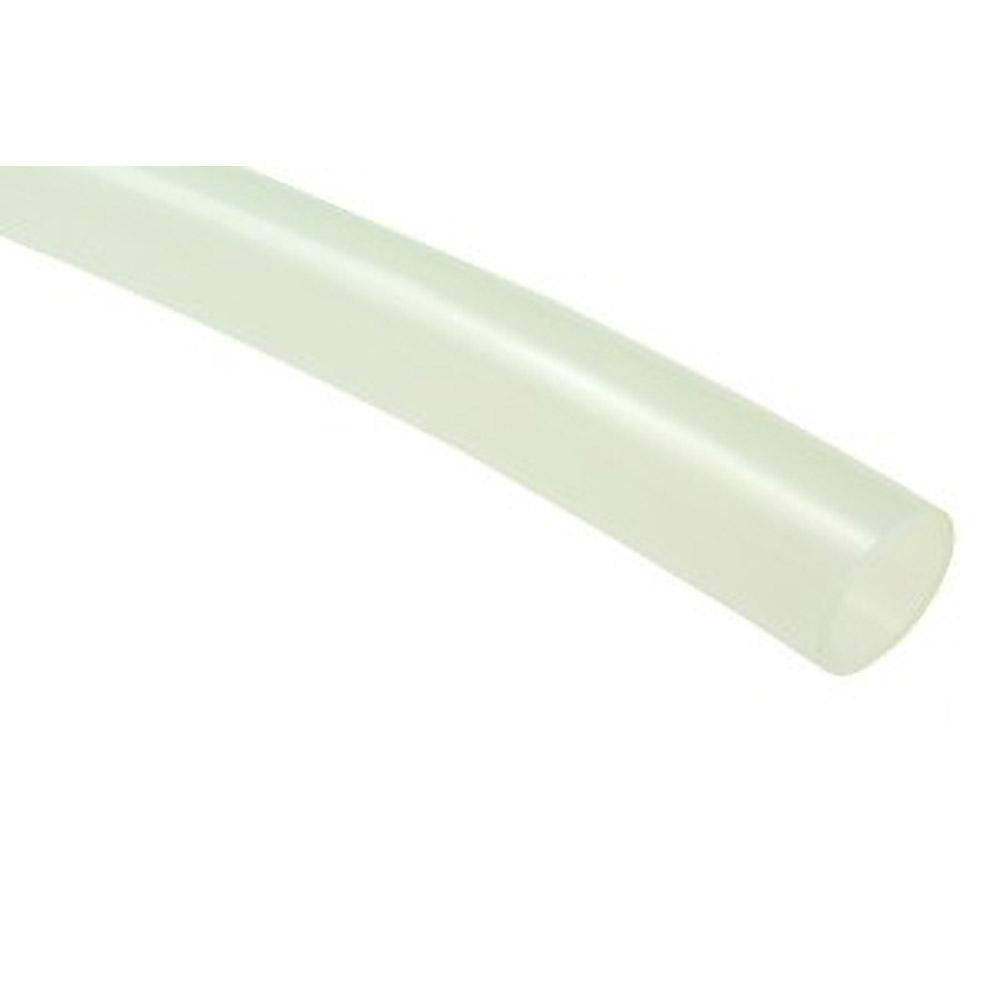

Coilhose Pneumatics PE0610-1000N Polyethylene Tube 1000 Ft

Product Description

The COILHOSE PNEUMATICS PE0610-1000N is a flexible polyethylene pneumatic tube rated for a maximum working pressure of 157 psi across a service temperature range of -40 to 150 degrees F. The tube ships in a 1,000-foot coil and is priced and cut in 1-foot increments with a 25-foot minimum cut. With a 6mm outside diameter, 4mm inside diameter, and 1mm wall thickness, it is well suited for low-pressure pneumatic distribution lines and fluid transfer applications in industrial and commercial settings. The natural color finish and Shore 50D hardness make it easy to route and identify in compressed-air systems. Licensed trades and maintenance technicians are the primary installers.

This tube is designed for use with Coilock push-to-connect fittings and poly-tube fittings. It is a common choice for pneumatic control lines, light-duty compressed-air distribution, and fluid conveyance runs in manufacturing, automation, and general industrial environments. FDA compliance and NSF-51 certification make it appropriate for installations where incidental food-contact or potable-water-adjacent applications require verified material safety standards. Both residential and commercial applications are supported where working pressures remain within the rated 157 psi limit.

Key Features

• Rated to 157 psi maximum working pressure
• Service temperature range of -40 to 150 degrees F
• 6mm outside diameter with 1mm wall thickness for consistent flow path
• Flexible construction with Shore 50D hardness for easy routing
• FDA compliant and NSF-51 certified for food-contact and potable-water-adjacent use
• Compatible with Coilock push-to-connect fittings and poly-tube fittings
• Available in 1,000-foot coil, cut in 1-foot increments with a 25-foot minimum

Compatibility

Designed for use with Coilock push-to-connect fittings and poly-tube fittings. Suitable for pneumatic and fluid transfer systems operating within the rated pressure and temperature limits of this tube.

Installation Notes

Installation is typically performed by licensed pipefitters, pneumatic system technicians, or qualified maintenance personnel. Depressurize and lock out the pneumatic system before cutting or connecting tubing. Use a clean, square cut with a proper tube cutter to ensure a reliable seal at push-to-connect fittings. Verify that all fittings and system components are rated for at least 157 psi before placing the line into service.
