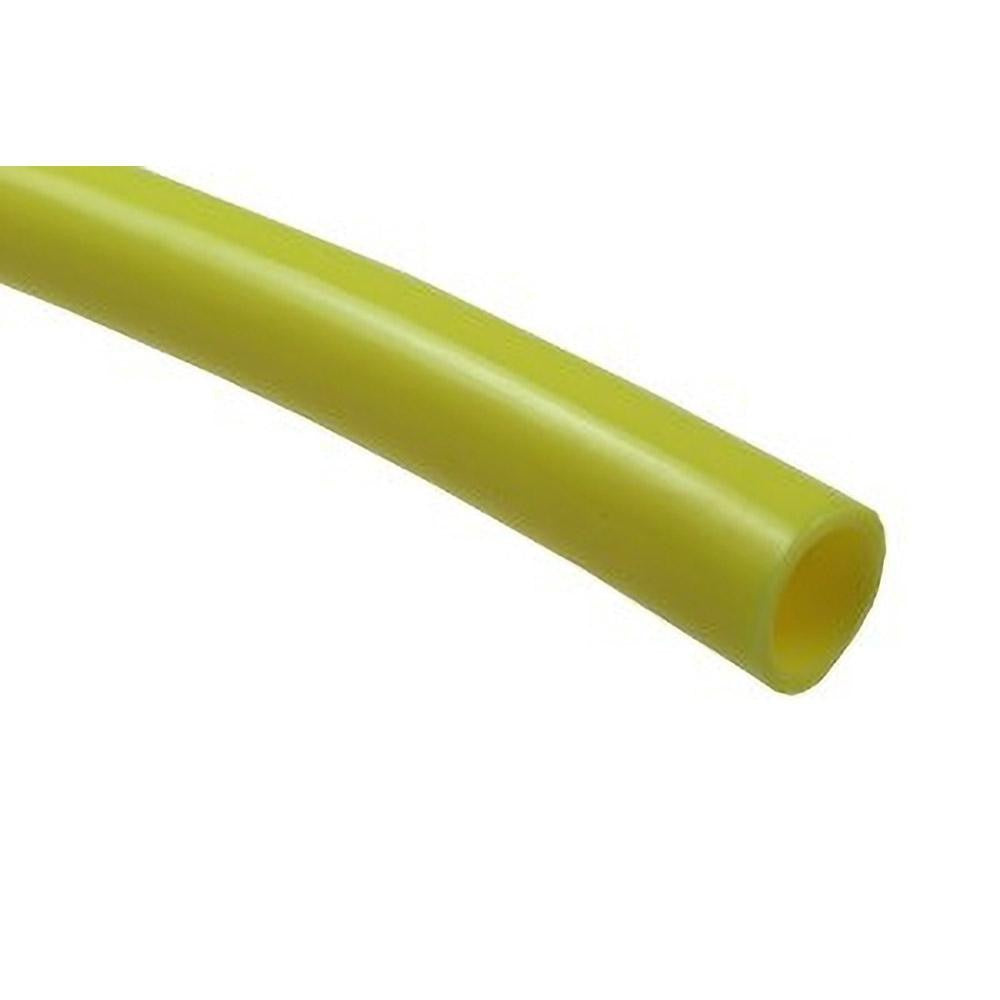

Coilhose Pneumatics PE0417-1000Y Polyethylene Tube Yellow

Product Description

The COILHOSE PNEUMATICS PE0417-1000Y is a flexible polyethylene pneumatic tube with an 11/64 inch (0.170 inch) inside diameter and a 1/4 inch outside diameter, featuring a 0.040 inch wall thickness. Rated to 173 psi maximum working pressure and tested across a temperature range of -40 to 150 degrees F, this tube is suited for compressed air distribution, pneumatic control circuits, and fluid transfer lines in industrial and light commercial environments. It carries FDA and NSF-51 certifications, making it appropriate for applications where incidental food contact compliance is required. Sold in 1-foot increments from a 1,000-foot coil with a 25-foot minimum cut length.

This yellow polyethylene tube is designed for use with Coilock push-to-connect fittings and standard poly-tube fittings, making it a common choice for instrument air lines, pneumatic actuator feeds, and compressed air branch runs. The yellow color aids in visual identification of pneumatic lines in multi-line installations. Its Shore 50D hardness provides enough rigidity to hold shape through routing while remaining flexible enough for tight-radius bends in control panels and equipment enclosures. Technicians in industrial maintenance, HVAC controls, and pneumatic automation typically specify this tube for both new installations and repair work.

Key Features

• 173 psi maximum working pressure rated for demanding pneumatic service
• Operating range of -40 to 150 degrees F suits both cold-environment and warm-air applications
• FDA and NSF-51 compliant for food-contact-adjacent pneumatic and fluid transfer use
• Compatible with Coilock push-to-connect fittings and standard poly-tube fittings
• Shore 50D hardness balances flexibility with form retention during routing
• Yellow color provides quick visual identification in multi-line pneumatic systems

Compatibility

Designed for use with Coilock push-to-connect fittings and poly-tube fittings as specified by the manufacturer. No additional specific model or system compatibility data was provided in the product information.

Installation Notes

Installation of pneumatic tubing is typically performed by qualified industrial maintenance technicians or instrumentation specialists. Depressurize and lock out the pneumatic system before cutting or connecting tubing. Use a clean, square cut with a dedicated tubing cutter to ensure proper seating in push-to-connect fittings. Minimum cut length for this product is 25 feet; plan routing and cuts accordingly before ordering.
