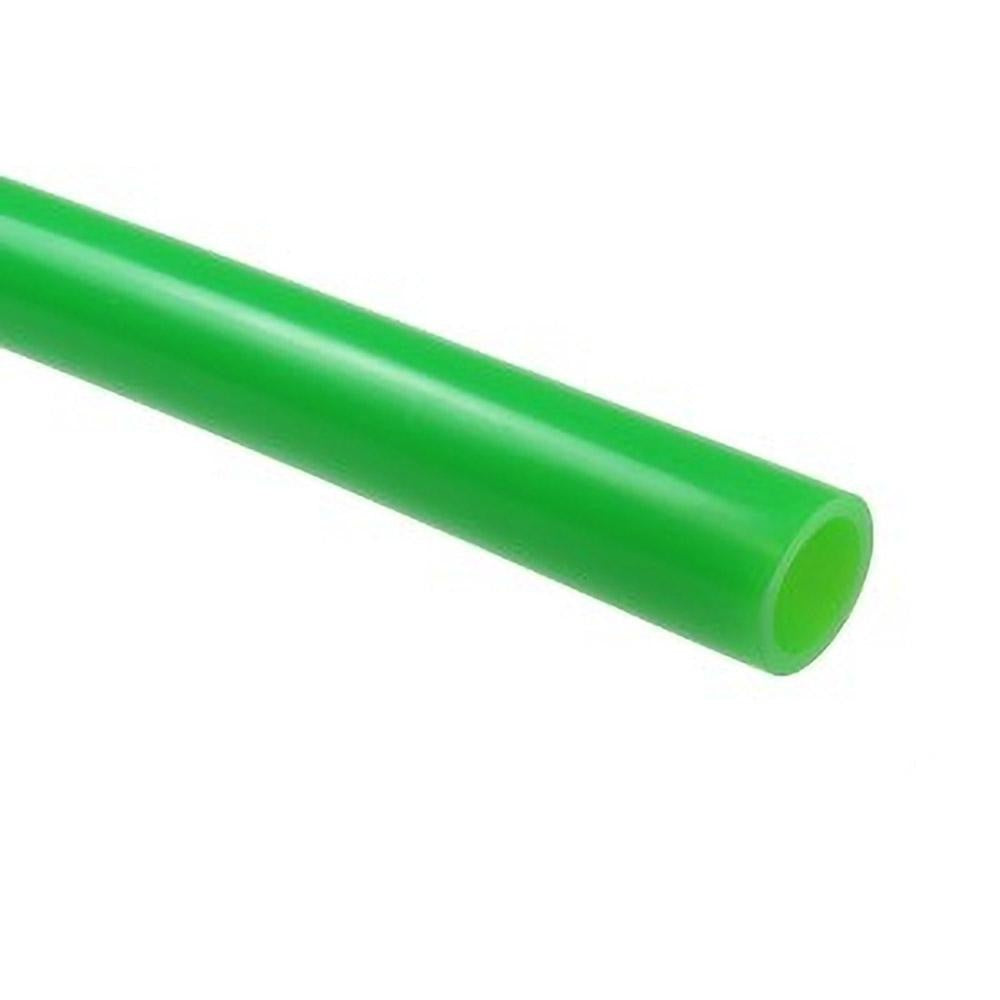

Coilhose Pneumatics PE0417-1000G Polyethylene Tube 1/4 in Od

Product Description

The COILHOSE PNEUMATICS PE0417-1000G is a flexible polyethylene pneumatic tube rated for a wide range of industrial and light-commercial air and fluid transfer applications. Measuring 11/64 inch (0.170 inch) ID and 1/4 inch OD with a 0.040-inch wall thickness, this tubing handles pressures up to 173 psi and operates across a temperature range of -40 to 150 degrees F. The green color aids in line identification in multi-tube installations. It ships as a 1,000-foot coil, sold in 1-foot increments with a 25-foot minimum cut length. Licensed tradespeople and industrial maintenance technicians are the primary installers.

This tubing is suited for compressed air distribution, pneumatic control circuits, and fluid transfer lines in residential, commercial, and light-industrial settings. Its Shore 50D hardness provides a balance of flexibility and kink resistance, making it practical for routing through tight spaces, machine enclosures, and panel assemblies. The tubing is FDA compliant and meets NSF-51 standards, making it appropriate for food-adjacent and potable-water-contact applications where low-pressure polyethylene tube is acceptable.

Key Features

• 11/64 inch ID and 1/4 inch OD with 0.040-inch wall thickness for precise fit in standard push-to-connect fittings
• Maximum working pressure of 173 psi
• Operating temperature range of -40 to 150 degrees F
• FDA compliant and NSF-51 listed for food-contact and potable-water-adjacent use
• Shore 50D hardness — flexible yet resistant to kinking during routing
• Green color for easy identification in multi-line installations
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings. Suitable as a standard 1/4 inch OD polyethylene pneumatic and fluid transfer tube in systems requiring FDA and NSF-51 compliant tubing.

Installation Notes

Installation is typically performed by pneumatic system technicians or industrial maintenance personnel. Before cutting into or disconnecting an existing pressurized line, depressurize the system fully and verify zero pressure with a gauge. Use a clean, square tube cut with a dedicated tubing cutter to ensure a proper seal in push-to-connect fittings — angled or ragged cuts will cause leaks. Verify fitting compatibility with 1/4 inch OD polyethylene tube before assembly.
