Coilhose Pneumatics PE0417-1000B Polyethylene Tube 1/4 Od

Product Description

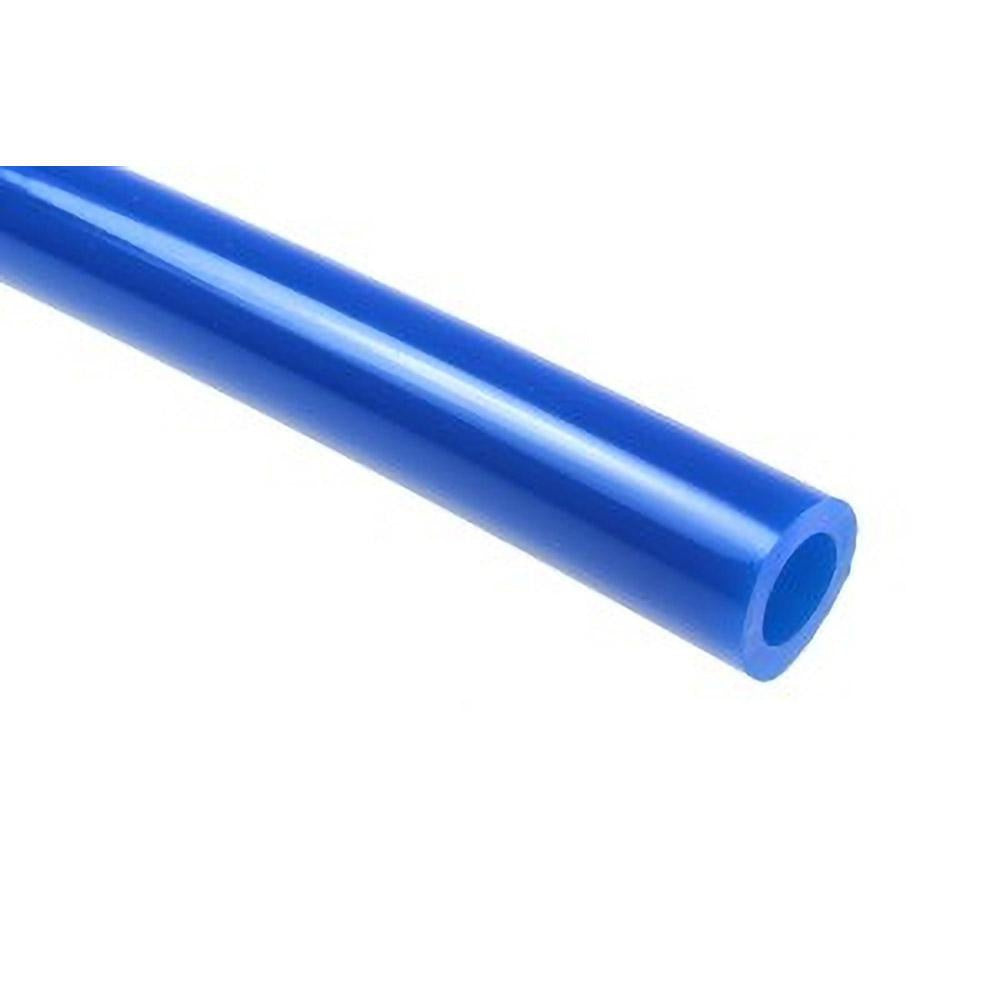

The COILHOSE PNEUMATICS PE0417-1000B is a flexible polyethylene pneumatic tube supplied in a 1,000-foot coil. It measures 11/64 inch (0.170 inch) inside diameter and 1/4 inch (0.250 inch) outside diameter, with a 0.040-inch wall thickness. Rated to 173 psi maximum working pressure and serviceable from -40 degrees F to 150 degrees F, this blue tubing handles a wide range of pneumatic plumbing applications. Shore 50D hardness gives it enough rigidity for clean routing while remaining flexible enough to bend without kinking. It meets FDA and NSF-51 standards, making it suitable where incidental food contact compliance is required.

This tubing is used in industrial and commercial pneumatic systems wherever a lightweight, flexible air line is needed. Typical applications include tool drops, machine plumbing, compressed air distribution, and push-to-connect fitting assemblies. The blue color aids line identification in multi-line installations. Tubing is priced and sold in 1-foot increments with a 25-foot minimum cut length; the full coil contains 1,000 feet. Compatible fittings include Coilock Push-to-Connect fittings and Poly-Tube fittings, making integration into existing pneumatic plumbing straightforward for maintenance technicians and pipefitters alike.

Key Features

• 173 psi maximum working pressure rated for reliable pneumatic service
• Wide temperature range: -40 degrees F to 150 degrees F
• FDA and NSF-51 compliant polyethylene construction
• Shore 50D hardness for flexible yet kink-resistant routing
• Blue color for fast identification in multi-line systems
• Compatible with Coilock Push-to-Connect and Poly-Tube fittings

Compatibility

Designed for use with Coilock Push-to-Connect fittings and Poly-Tube fittings as stated by the manufacturer. Suitable as a general-purpose pneumatic air line in industrial and commercial compressed air plumbing systems.

Installation Notes

Installation is typically performed by pipefitters, pneumatic system technicians, or maintenance mechanics. Depressurize and lock out the compressed air supply before cutting or connecting tubing. Use a clean, square tube cut for proper seating in push-to-connect fittings; a dedicated tube cutter is preferred over a knife to ensure a burr-free end. Follow local mechanical and compressed air codes for line sizing and pressure rating compliance.
