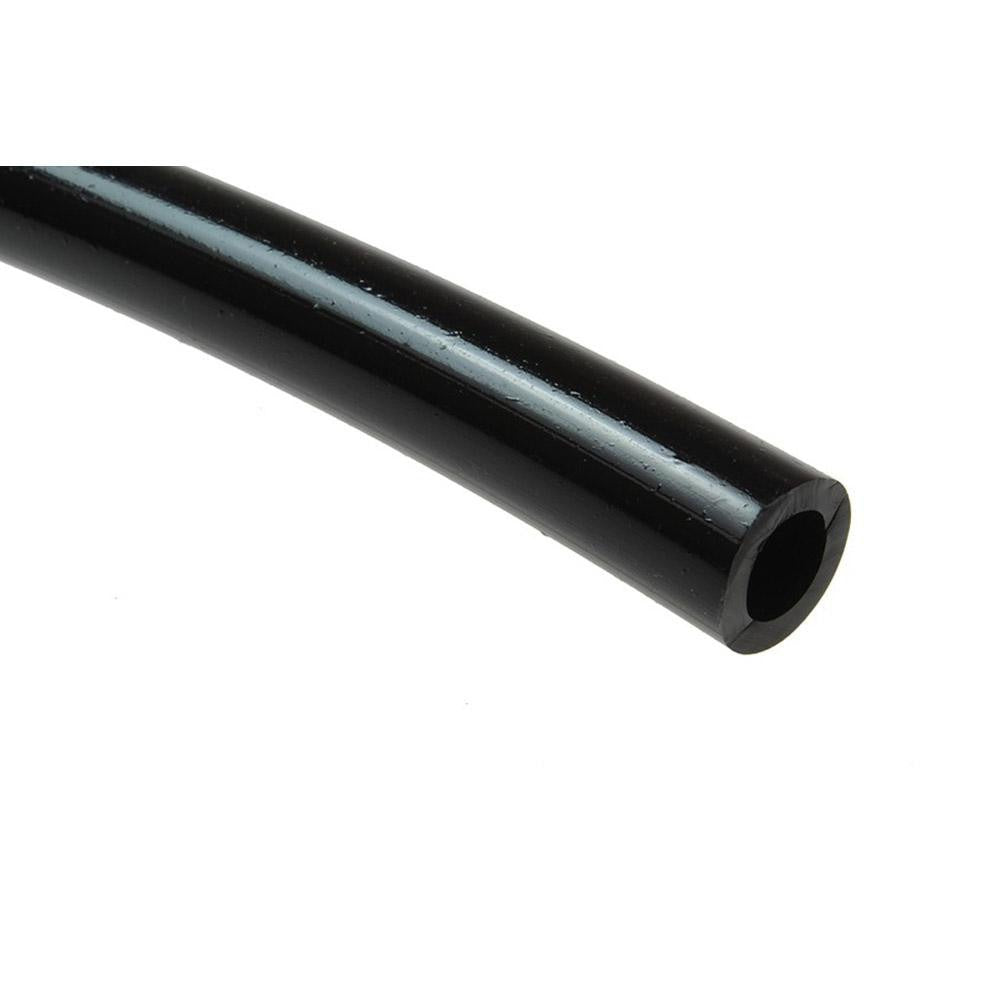

Coilhose Pneumatics PE021-2500X Polyethylene Tube 1/8 Od

Product Description

The COILHOSE PNEUMATICS PE021-2500X is a flexible polyethylene pneumatic tube rated for continuous use in compressed air and fluid transfer applications. It measures 0.062 inches inside diameter and 0.125 inches outside diameter with a wall thickness of 0.031 inches. The tube handles a maximum working pressure of 150 psi and operates across a temperature range of -40 degrees F to 150 degrees F. Shore 50D hardness gives it enough rigidity to hold its path while remaining easy to route and cut. The full coil ships at 2,500 feet and is sold in 1-foot increments with a 25-foot minimum cut length. Installation is handled by pipefitters, pneumatic system technicians, and industrial maintenance mechanics.

This tubing is suited for light-duty pneumatic lines, instrumentation runs, and fluid transfer systems in both commercial and industrial environments. Its FDA and NSF-51 compliance makes it appropriate for use in food-processing facilities or anywhere incidental food contact is a concern. The gray color aids visual identification in multi-line installations. It is designed for use with Coilock push-to-connect fittings and poly-tube fittings, making termination fast without specialized tooling.

Key Features

• 150 psi maximum working pressure for light pneumatic and fluid transfer service
• Wide temperature range: -40 degrees F to 150 degrees F
• FDA compliant and NSF-51 listed — suitable for food-contact environments
• Compatible with Coilock push-to-connect fittings and poly-tube fittings
• Flexible construction with Shore 50D hardness for easy routing and cut-to-length use
• Available in a 2,500-foot coil sold in 1-foot increments with a 25-foot minimum cut

Compatibility

Designed for use with Coilock push-to-connect fittings and poly-tube fittings as specified by the manufacturer.

Installation Notes

Depressurize the system completely before cutting, inserting, or removing tubing. Use a clean, square cut with a dedicated tube cutter to ensure a proper seat in push-to-connect fittings — angled or ragged cuts cause leaks. Pneumatic tubing installations in industrial facilities should follow applicable OSHA and local compressed air system codes. Verify fitting compatibility by confirming the outside diameter of the tube matches the fitting specification before pressurizing.
