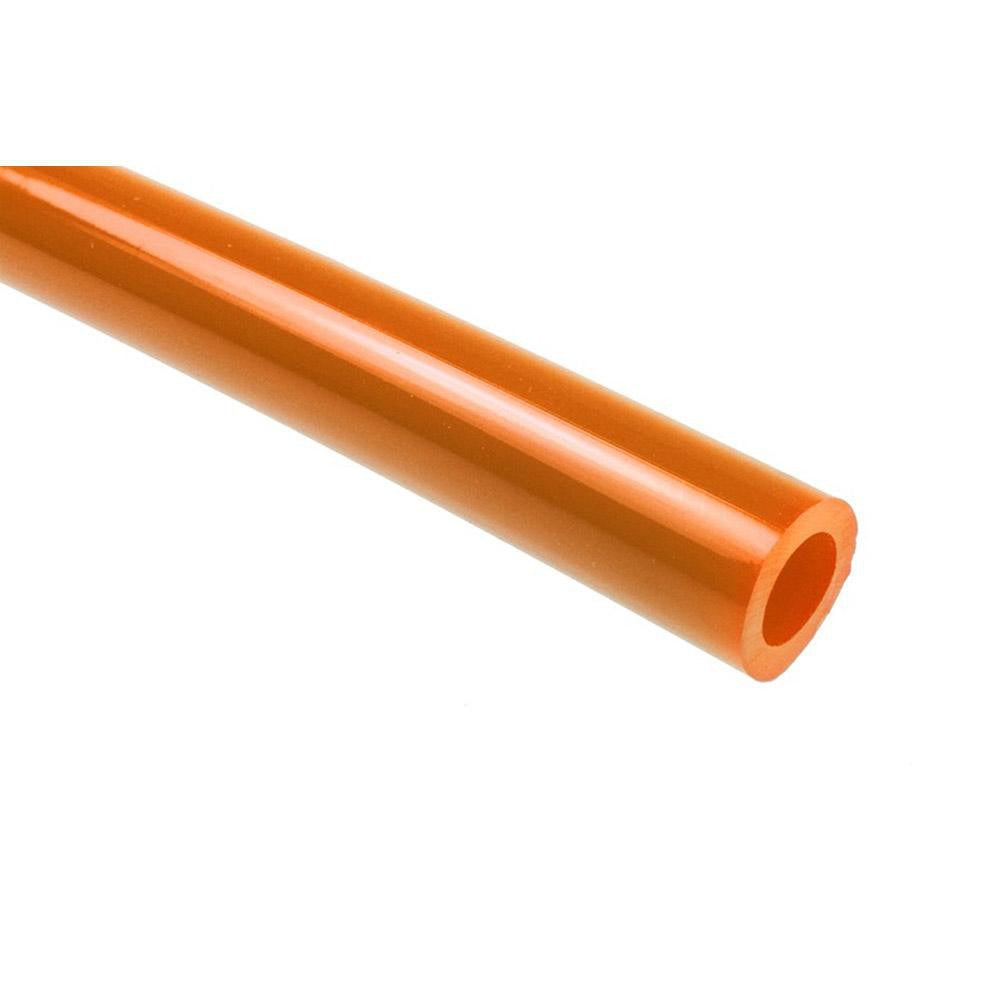

Coilhose Pneumatics PE021-2500Q Polyethylene Tube

Product Description

The COILHOSE PNEUMATICS PE021-2500Q is a flexible polyethylene pneumatic tube rated for a maximum working pressure of 150 psi and a temperature range of -40 to 150 degrees F. It measures 1/16 inch inside diameter and 1/8 inch outside diameter, with a wall thickness of 1/32 inch. The tube ships as a 2,500-foot coil and is sold in 1-foot increments with a 25-foot minimum cut length. Orange color aids identification in multi-line pneumatic installations. Licensed HVAC techs, plumbers, and pneumatic system installers use this tubing in low-pressure instrument and control-line applications.

This tube is suited for residential and light commercial pneumatic control systems, instrument air lines, and low-pressure fluid-transfer applications. The FDA-compliant and NSF-51-rated construction makes it appropriate for food-service and potable-water-adjacent environments where non-toxic tubing materials are required. It is engineered for use with Coilock push-to-connect fittings and Poly-Tube fittings, making termination fast and tool-free in tight installations. The flexible Shore 50D hardness allows routing through enclosures and around obstructions without kinking under normal bend radii.

Key Features

• 150 psi maximum working pressure for low-pressure pneumatic and instrument lines
• Wide operating temperature range: -40 to 150 degrees F
• FDA compliant and NSF-51 certified for food-contact and potable-water-adjacent use
• Shore 50D hardness for flexible routing without kinking
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings for tool-free termination
• Orange color for easy line identification in multi-tube installations
• Sold in 1-foot increments from a 2,500-foot coil; 25-foot minimum cut length applies

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings as stated by the manufacturer.

Installation Notes

Installation is typically performed by instrumentation technicians, HVAC controls mechanics, or licensed plumbers depending on the application. Depressurize and lock out the pneumatic supply line before cutting or connecting tubing. Use a clean, square cut with a dedicated tubing cutter to ensure a proper seal at push-to-connect fittings. Verify that working pressure and temperature in the application do not exceed the rated limits of 150 psi and 150 degrees F.
