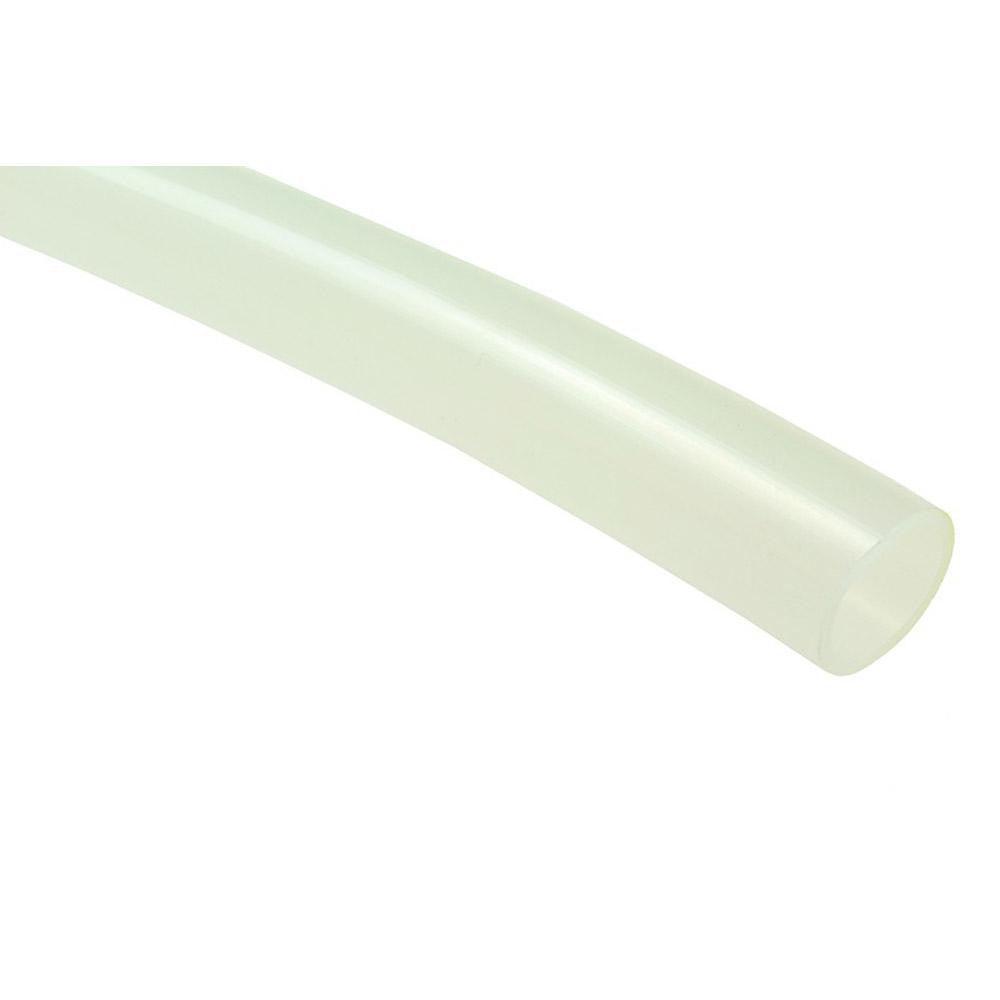

Coilhose Pneumatics PE021-2500N Polyethylene Tube

Product Description

The COILHOSE PNEUMATICS PE021-2500N is a flexible polyethylene pneumatic tube rated for a maximum working pressure of 150 psi and a temperature range of -40 to 150 degrees F. It measures 0.0620 inches inside diameter (1/16 inch nominal) and 1/8 inch outside diameter, with a wall thickness of 1/32 inch (0.0315 inches). Supplied in a 2500-foot coil in natural (translucent) color, this tube is priced and cut in 1-foot increments with a 25-foot minimum cut length. It carries FDA and NSF-51 compliance, making it suitable for food-grade pneumatic and fluid-transfer applications. Licensed pneumatic technicians, plumbers, and industrial maintenance professionals are the typical installers.

This tube is designed for compressed air lines, pneumatic control circuits, and low-pressure fluid transfer in both light industrial and commercial settings. Its Shore 50D hardness provides a balance of flexibility and kink resistance, which suits routing through equipment panels, machine frames, and control enclosures. At 2500 feet per coil, it is well suited for contractors or facilities that need a bulk supply for ongoing installation or maintenance work. The natural color allows visual inspection of tube contents or flow.

Key Features

• 1/16 inch ID x 1/8 inch OD with 1/32 inch wall thickness for precise flow control in small-bore pneumatic circuits
• 150 psi maximum working pressure for standard compressed air service
• Operating temperature range of -40 to 150 degrees F for cold-start and warm-environment applications
• FDA and NSF-51 compliant for food-grade and potable-water-adjacent pneumatic applications
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings for tool-free connections
• 2500-foot coil with 1-foot increment pricing and 25-foot minimum cut length for flexible procurement

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings as specified by the manufacturer.

Installation Notes

Installation is typically performed by pneumatic technicians or industrial maintenance personnel. Depressurize the system fully before cutting or connecting tubing. Use a clean, square tube cut to ensure a proper seal at push-to-connect fittings. Avoid routing near sharp edges or heat sources that could exceed the 150 degrees F rated limit.
