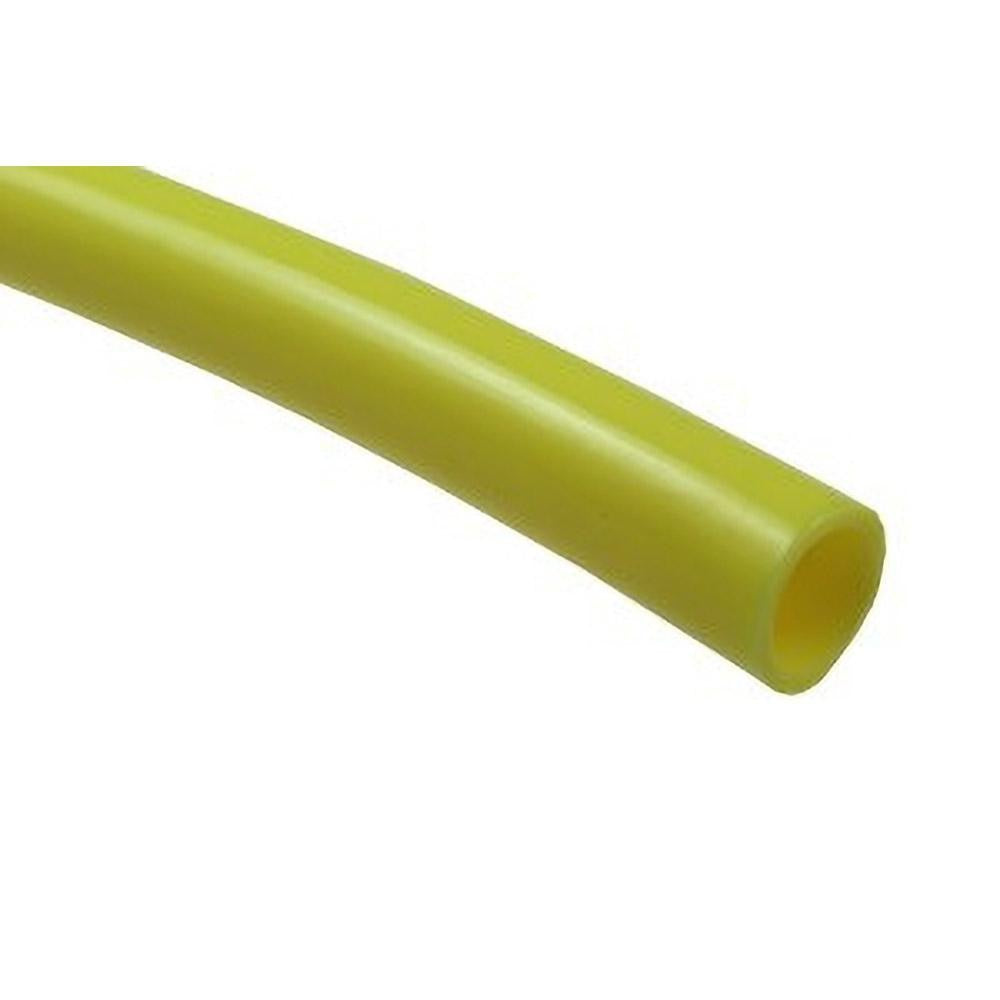

Coilhose Pneumatics NC2525-2500Y Nylon Tube 5/32 Od

Product Description

The COILHOSE PNEUMATICS NC2525-2500Y is a flexible nylon pneumatic tubing sold in a 2,500-foot coil and priced in 1-foot increments with a 25-foot minimum cut length. It has a 5/32-inch outside diameter and a 0.106-inch inside diameter with a 0.025-inch wall thickness. Rated to 275 psi maximum working pressure and suitable for temperatures from -60 to 200 degrees F, this tubing is well-suited to compressed air distribution, pneumatic control lines, and fluid transfer applications in industrial and commercial environments. Licensed HVAC technicians, plumbers, and industrial maintenance technicians install this tubing in pneumatic systems where reliable pressure containment and flexibility are required.

This yellow nylon tubing is used in pneumatic plumbing lines, automation systems, and instrumentation runs in both light industrial and commercial settings. The yellow color aids in quick visual identification of pneumatic circuits in multi-line installations. It is compatible with Coilock fittings and Poly-Tube fittings, making it a straightforward drop-in choice for common pneumatic push-to-connect and compression fitting assemblies. The 2,500-foot coil format reduces splicing in long runs and supports higher-volume service and installation work.

Key Features

• 275 psi maximum working pressure for reliable compressed air and fluid line service
• Wide temperature range from -60 to 200 degrees F suits demanding environments
• 5/32-inch OD and 0.106-inch ID with 0.025-inch wall thickness for consistent flow performance
• Flexible nylon construction with 78 HR hardness balances rigidity and bend radius
• Yellow color provides easy visual identification in multi-line pneumatic installations
• UL94HB flame-rating standard for use in applicable listed assemblies
• 2,500-foot coil format minimizes field splices on long pneumatic runs

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings. Suitable for general pneumatic tubing applications where 5/32-inch OD nylon tube is specified.

Installation Notes

Installation is typically performed by licensed industrial maintenance technicians or pneumatic system installers. Depressurize and lock out the pneumatic system before cutting or connecting tubing. Use a clean, square cut to ensure a proper seal at push-to-connect or compression fittings. Avoid routing tubing near sharp edges or heat sources that could compromise the wall over time.
