Coilhose Pneumatics NC2525-2500N Nylon Tube 5/32 in Od

Product Description

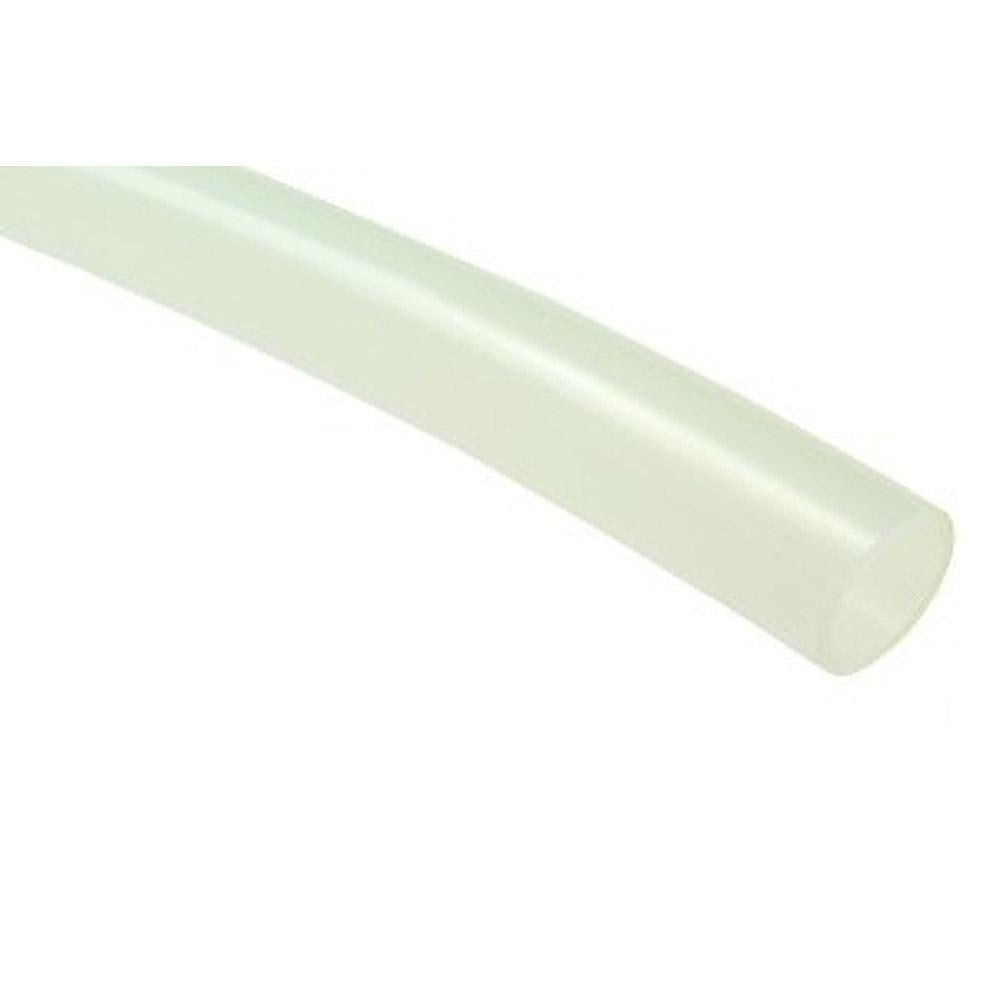

The COILHOSE PNEUMATICS NC2525-2500N is a flexible nylon pneumatic tubing supplied in a 2,500-foot coil. It carries a 0.106-inch inside diameter and a 5/32-inch outside diameter with a 0.025-inch wall thickness. Rated to 275 psi maximum working pressure and tested across a temperature range of -60 to 200 degrees F, this tubing is built for reliable service in compressed-air distribution and pneumatic control lines. The natural color nylon construction provides good chemical resistance and flexibility. It is sold by the foot in a minimum cut length of 25 feet. HVAC technicians, industrial mechanics, and pneumatic system installers are the primary users.

NC2525-2500N tubing is suited for pneumatic control circuits, air tool supply lines, and instrumentation runs in both light industrial and commercial settings. Its flexible nylon construction allows routing through tight spaces and around equipment without kinking. The 2,500-foot coil format reduces handling and minimizes splices on larger installations. Compatible with Coilock fittings and poly-tube fittings, it integrates directly into standard pneumatic assemblies without adapters in most configurations.

Key Features

• 275 psi maximum working pressure for standard compressed-air service
• Wide temperature range: -60 to 200 degrees F
• 5/32-inch OD and 0.106-inch ID with 0.025-inch wall thickness
• Flexible nylon construction with 78 HR hardness rating
• UL94HB flame rating
• Sold by the foot; 25-foot minimum cut length from a 2,500-foot coil

Compatibility

Compatible with Coilock fittings and poly-tube fittings. Designed as a general-purpose replacement or supply tubing for pneumatic control and distribution systems using 5/32-inch OD tube connections.

Installation Notes

Installation is typically performed by licensed HVAC technicians, industrial mechanics, or pneumatic system specialists. Depressurize and lock out the air supply before cutting or connecting tubing. Use a clean, square cut to ensure a proper seal at push-to-connect or compression fittings. Verify that the system operating pressure and temperature do not exceed the ratings of this tubing before placing in service.
