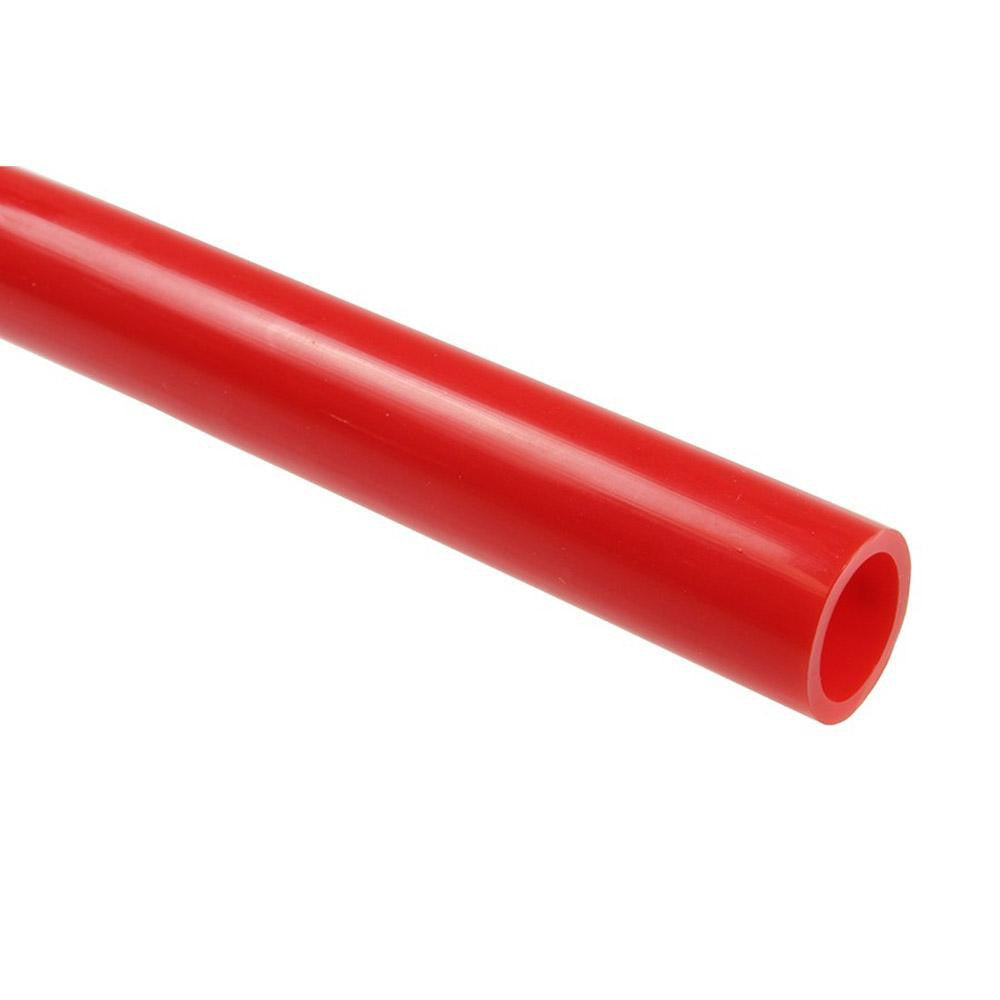

Coilhose Pneumatics NC0862-500R Nylon Tube 3/8 Id 500 Ft

Product Description

The COILHOSE PNEUMATICS NC0862-500R is a flexible nylon pneumatic tubing supplied as a 500-foot coil in red. It measures 3/8 inch inside diameter and 1/2 inch outside diameter with a 1/16 inch wall thickness. Rated to 200 psi maximum working pressure, this tube handles a wide temperature range from -60 degrees F to 200 degrees F, making it suitable for both cold-environment and standard shop-air applications. It meets UL94HB flammability standards. Licensed plumbers, HVAC technicians, and pneumatic system installers use this tubing for compressed-air distribution and fluid conveyance lines where a flexible, lightweight alternative to rigid pipe is required.

This nylon tube is suited for industrial, commercial, and light manufacturing pneumatic systems where routing flexibility and pressure resistance are priorities. It is sold in 1-foot increments with a 25-foot minimum cut length, allowing installers to order to measured runs. The red color aids identification in multi-line installations. The 500-foot coil format reduces handling and minimizes splice points in longer runs.

Key Features

• 200 psi maximum working pressure for standard compressed-air service
• Wide temperature range: -60 degrees F to 200 degrees F
• Flexible nylon construction with 78 Shore R hardness for kink resistance
• Compatible with Coilock fittings and Poly-Tube fittings
• UL94HB flammability rating
• 500-foot coil supplied; sold in 1-foot increments with 25-foot minimum cut length

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings as stated by the manufacturer. Designed for use in pneumatic tubing assemblies requiring 3/8 inch ID nylon tube connections.

Installation Notes

Installation is typically performed by a qualified pneumatic systems technician or pipefitter. Depressurize and isolate the air supply completely before cutting or connecting tubing. Use a clean, square tube cut to ensure a proper seal at push-to-connect or compression fittings. Route tubing away from sharp edges, heat sources above the rated temperature, and areas subject to prolonged UV exposure, which can degrade nylon over time.
