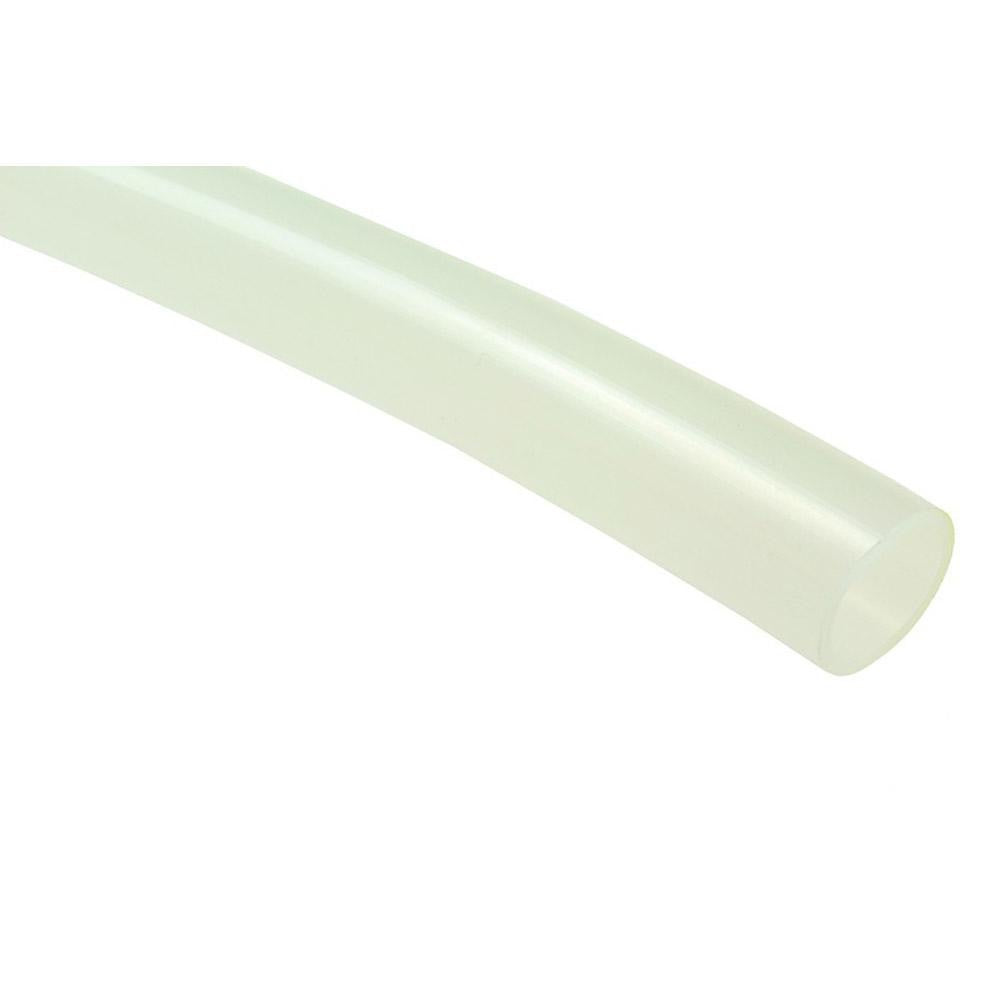

Coilhose Pneumatics NC0810-500N Nylon Tube 210 Psi 500 Ft

Product Description

The COILHOSE PNEUMATICS NC0810-500N is a flexible nylon pneumatic tube rated for working pressures up to 210 psi and a temperature range of -60 to 200 degrees F. With an outside diameter of 8.00 mm and an inside diameter of 6.00 mm, this tube is sized for a wide range of compressed-air plumbing and pneumatic control applications. The natural-colored nylon construction offers a hardness of 78 HR and carries a UL94HB flame rating, making it a dependable choice for industrial and light-commercial pneumatic systems. It is sold in 1-foot increments with a 25-foot minimum cut length from a 500-foot coil.

This tube is well suited for shop air distribution lines, pneumatic tool feeds, and automated equipment plumbing where a flexible, pressure-rated line is required. The flexible nylon material handles routing through tight spaces and around equipment framing without kinking. Installation is typically performed by maintenance technicians, pipefitters, or pneumatic system integrators in manufacturing, fabrication, and mechanical service environments.

Key Features

• 210 psi maximum working pressure for demanding compressed-air circuits
• Wide temperature range: -60 to 200 degrees F
• 8.00 mm outside diameter with 1.00 mm wall thickness for consistent fit in push-to-connect fittings
• Compatible with Coilock fittings and Poly-Tube fittings
• UL94HB flame-classification rating
• Flexible nylon construction resists kinking during routing and installation

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings as stated by the manufacturer. Designed for use in compressed-air and pneumatic control plumbing systems requiring an 8.00 mm outside diameter flexible nylon tube.

Installation Notes

Depressurize and lock out the compressed-air supply before cutting or connecting this tube. Use a clean, square tube cut to ensure a proper seal in push-to-connect or compression-style fittings. Verify that all fittings used are rated for the system working pressure and are compatible with nylon tubing. Minimum order and cut-length requirements apply; plan runs accordingly before cutting.
