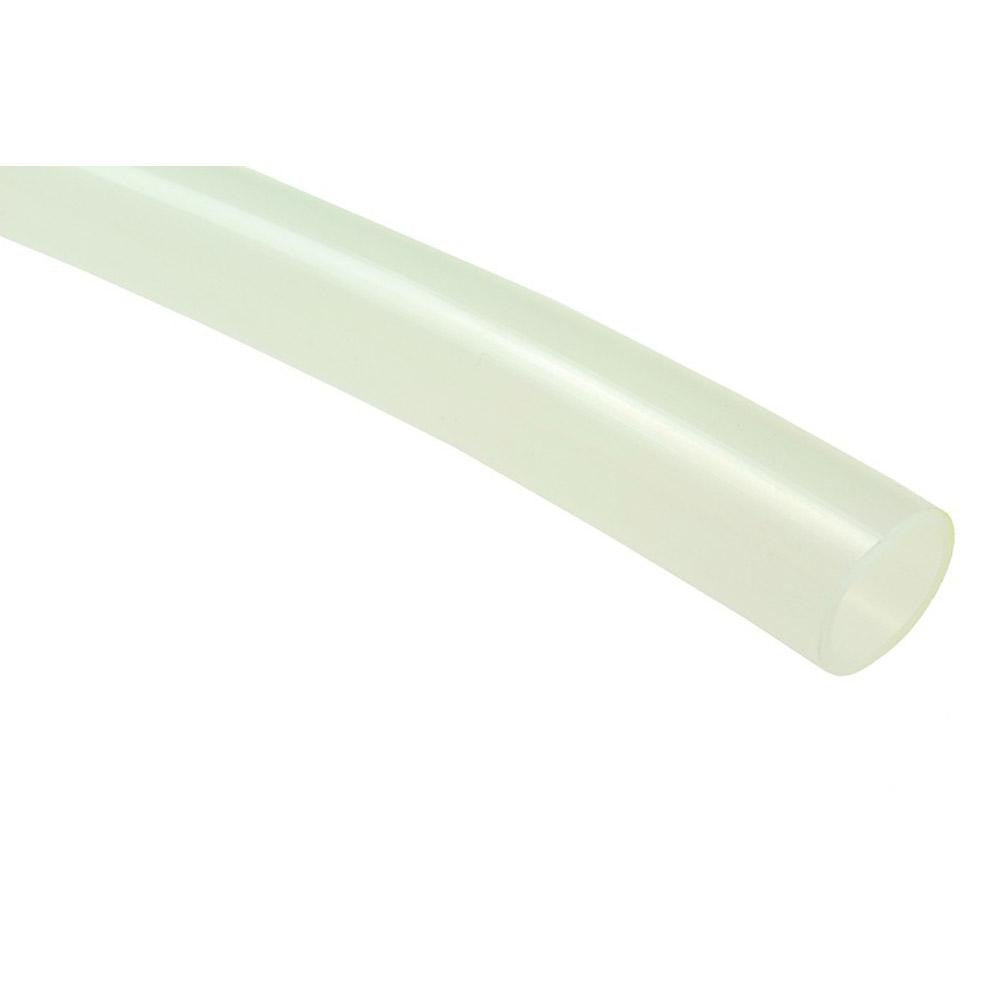

Coilhose Pneumatics NC0650-500N Nylon Tube 3/8 in Od 500 Ft

Product Description

The COILHOSE PNEUMATICS NC0650-500N is a flexible nylon pneumatic tubing supplied in a 500-foot coil, designed for use in compressed air distribution, pneumatic tool lines, and fluid transfer systems. With a 0.275-inch inside diameter and a 3/8-inch outside diameter, this tubing handles up to 220 psi maximum working pressure and performs across a wide temperature range of -60 to 200 degrees F. The natural-color nylon construction provides good chemical resistance and durability in both shop and industrial environments. Licensed trade professionals and pneumatic system installers use this tubing for routing air lines in fixed and semi-permanent pneumatic installations.

This tubing is well-suited for residential, commercial, and light industrial pneumatic systems where a reliable, pressure-rated flexible line is needed between a compressor and downstream equipment or tooling. It is compatible with Coilock fittings and poly-tube fittings, making it a practical choice for technicians already working within those fitting systems. The tubing is sold in 1-foot increments with a 25-foot minimum cut length and ships as a full 500-foot coil. It is rated to UL94HB flame standards, which is relevant for installations inside panels or enclosures where flame spread requirements apply.

Key Features

• 220 psi maximum working pressure for standard compressed air service
• Wide temperature rating: -60 to 200 degrees F for demanding environments
• 0.275-inch ID and 3/8-inch OD with a 0.050-inch wall thickness
• Compatible with Coilock fittings and poly-tube fittings
• UL94HB flame rating for installations with flame spread requirements
• Flexible nylon construction with a hardness rating of 78 HR

Compatibility

Compatible with Coilock fittings and poly-tube fittings as specified by the manufacturer. Designed for use in pneumatic systems requiring flexible nylon tubing with a 3/8-inch outside diameter.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial mechanic. De-pressurize the air supply and bleed all downstream pressure before cutting or connecting tubing. Use the appropriate tube cutter for clean, square ends to ensure a leak-free fitting connection. Verify that all fittings and end connections are rated for the system's maximum working pressure before returning the line to service.
