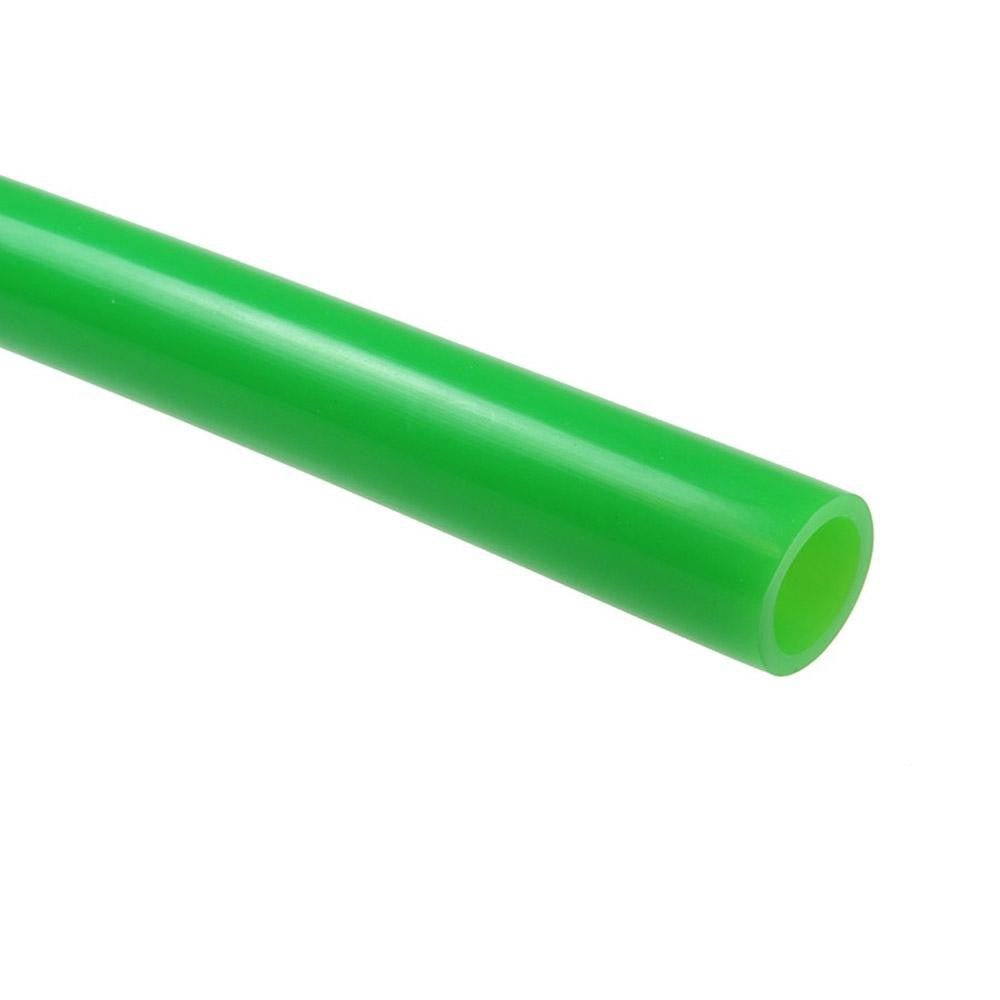

Coilhose Pneumatics NC0650-500G Nylon Tube 3/8 Od 500 Ft

Product Description

The COILHOSE PNEUMATICS NC0650-500G is a flexible nylon pneumatic tubing supplied in a 500-foot coil, designed for compressed air and fluid transfer in industrial and shop environments. It measures 0.275 inches inside diameter with a 3/8-inch outside diameter and a 0.050-inch wall thickness. Rated to 220 psi maximum working pressure and capable of operating across a temperature range of -60 to 200 degrees F, this tubing handles demanding conditions in both stationary and portable pneumatic setups. The green color coding aids line identification in multi-circuit installations. Licensed trades and industrial maintenance professionals install this product as part of pneumatic distribution systems.

This nylon tube is suited for light industrial, manufacturing, and workshop pneumatic applications where a flexible, semi-rigid air line is required. It is compatible with Coilock fittings and Poly-Tube fittings, making it a direct fit for common push-to-connect and compression-style pneumatic assemblies. The 500-foot coil length reduces the need for mid-run splices on longer runs. It is sold in 1-foot increments with a 25-foot minimum cut length, giving installers flexibility to size runs precisely without excess waste.

Key Features

• 220 psi maximum working pressure for standard compressed air service
• Wide temperature range: -60 to 200 degrees F for cold storage and high-heat environments
• 3/8-inch OD with 0.275-inch ID and 0.050-inch wall thickness for consistent flow and fit
• Compatible with Coilock fittings and Poly-Tube fittings for easy termination
• UL94HB flame-rating standard compliance
• Green color for circuit identification in multi-line pneumatic systems
• 500-foot coil minimizes mid-run joints on extended pneumatic distribution runs

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings as specified by the manufacturer. This tubing is designed for use in standard pneumatic distribution systems utilizing 3/8-inch OD push-to-connect or compression-style fittings.

Installation Notes

Installation should be performed by qualified pneumatic or industrial maintenance technicians familiar with compressed air system plumbing. Depressurize and lock out the compressed air supply completely before cutting or connecting tubing. Use a clean, square tube cutter rather than a knife to ensure a proper seating surface at fittings and prevent leaks. Verify that all fittings used are rated for the system working pressure and are listed as compatible with nylon tubing construction.
