Coilhose Pneumatics NC0510-1000N Nylon Tube 375 Psi

Product Description

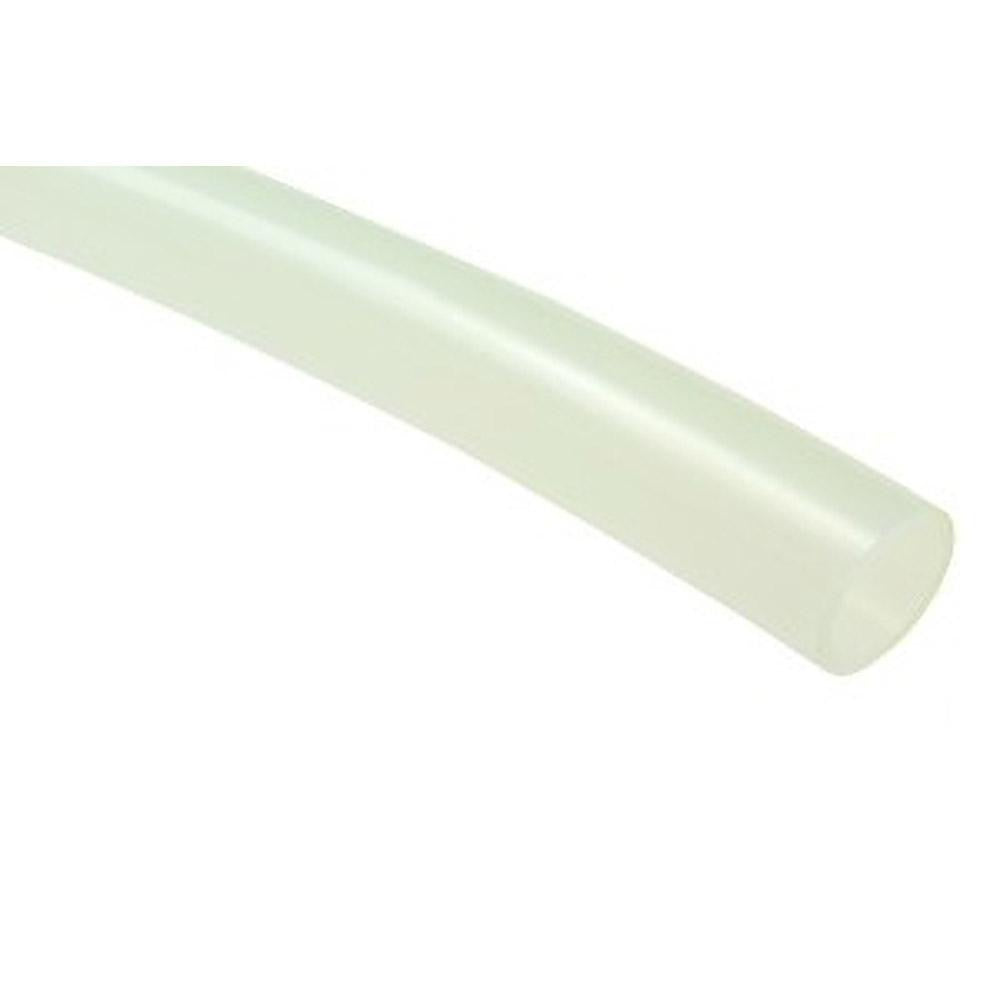

The COILHOSE PNEUMATICS NC0510-1000N is a flexible nylon pneumatic tube rated for working pressures up to 375 psi and a temperature range of -60 to 200 degrees F. It features a 5.00 mm outside diameter, 3.00 mm inside diameter, and a 1.00 mm wall thickness. The tube arrives in a 1,000-foot coil in a natural (clear) color and is sold in 1-foot increments with a 25-foot minimum cut length. Licensed HVAC technicians, plumbers, and industrial maintenance professionals use this tubing in compressed air, pneumatic control, and fluid-transfer applications where lightweight, chemical-resistant line routing is required.

This tubing is suited for residential and light commercial pneumatic systems where a durable, flexible line is needed between components such as valves, actuators, regulators, and instrumentation. Its flexible construction allows routing through tight spaces without kinking. The natural color aids in visual inspection of internal flow. It is compatible with Coilock fittings and Poly-Tube fittings, making it straightforward to terminate without specialty tooling in most standard pneumatic assemblies.

Key Features

• 375 psi maximum working pressure for demanding compressed-air service
• Wide temperature range: -60 to 200 degrees F for both cold-climate and heat-exposed installations
• 5.00 mm OD x 3.00 mm ID with 1.00 mm wall thickness for consistent flow and pressure integrity
• Flexible nylon construction with 78 HR hardness resists kinking and abrasion
• UL94HB flame-classification rating
• Compatible with Coilock fittings and Poly-Tube fittings for easy termination
• 1,000-foot coil minimizes splice points on large runs; priced per 1-foot increment with 25-foot minimum cut

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings as stated by the manufacturer. Suitable for use in compressed-air and pneumatic control plumbing as an OEM-style flexible tube solution.

Installation Notes

Installation is typically performed by licensed pipefitters, HVAC technicians, or pneumatic system technicians. Depressurize and lock out the air supply before cutting or connecting tubing. Use a clean, square tube cut to ensure a full seat inside push-to-connect or compression fittings. Follow applicable codes such as OSHA 29 CFR 1910.147 for lockout/tagout procedures when servicing pressurized pneumatic systems.
