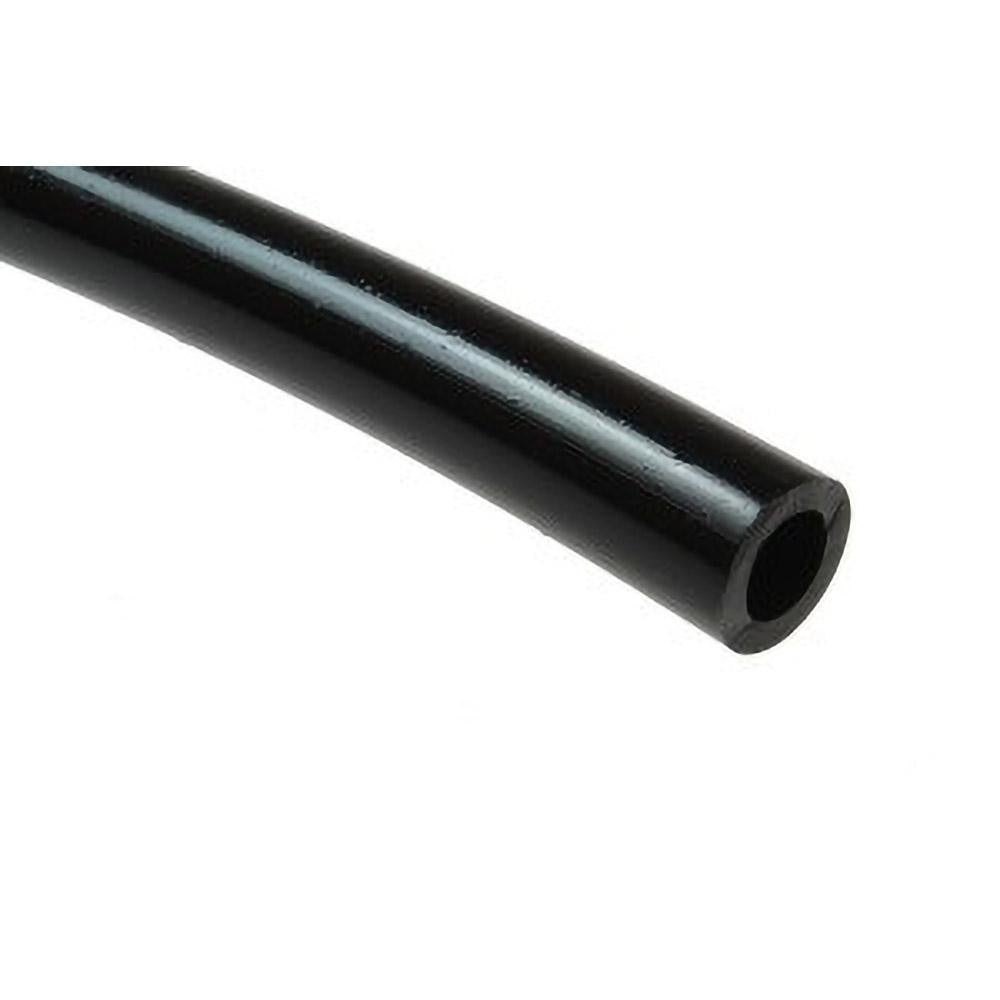

Coilhose Pneumatics NC0510-1000K Nylon Tube 375 Psi

Product Description

The COILHOSE PNEUMATICS NC0510-1000K is a flexible black nylon pneumatic tubing rated for a maximum working pressure of 375 psi and a temperature range of -60 to 200 degrees F. With a 5.00 mm outside diameter, 3.00 mm inside diameter, and a 1.00 mm wall thickness, this tubing is engineered for compressed air lines, pneumatic tool feeds, and general-purpose fluid conveyance in industrial and commercial environments. It ships as a 1,000-foot coil, sold in 1-foot increments with a 25-foot minimum cut length. Licensed HVAC technicians, plumbers, and mechanical contractors working with pneumatic control and tool supply lines rely on this tubing for dependable, long-run installations.

This tubing is suited for use in plant air distribution, pneumatic tool supply, and light-duty fluid transfer applications where flexibility and chemical resistance matter. The nylon construction handles both the low temperatures common in unheated spaces and the elevated temperatures near compressor discharge points. It is appropriate for residential and commercial mechanical rooms, manufacturing floors, and service vehicle reel setups where a full 1,000-foot coil provides continuous runs without splices. The minimum order quantity is 25 feet per cut.

Key Features

• 375 psi maximum working pressure suitable for standard compressed air systems
• Wide service temperature range of -60 to 200 degrees F for cold-climate and warm-environment installs
• 5.00 mm OD and 3.00 mm ID with 1.00 mm wall thickness for consistent fitment with compatible fittings
• Compatible with Coilock fittings and Poly-Tube fittings for straightforward terminations
• UL94HB flame rating for installations where code compliance is required
• Flexible construction with 78 HR hardness for easy routing through tight spaces
• 1,000-foot coil minimizes splices on long pneumatic runs

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings per manufacturer specifications. Designed as a general-purpose OEM-style replacement or new-installation nylon pneumatic tube for systems requiring 5.00 mm OD tubing.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic system codes and practices. Depressurize the entire pneumatic line before cutting or connecting tubing, and verify that all fittings are rated to match the 375 psi working pressure of this tube. Use a clean, square cut to ensure full insertion depth into push-to-connect or compression fittings. Avoid routing near sharp edges or heat sources that could compromise the nylon wall over time.
