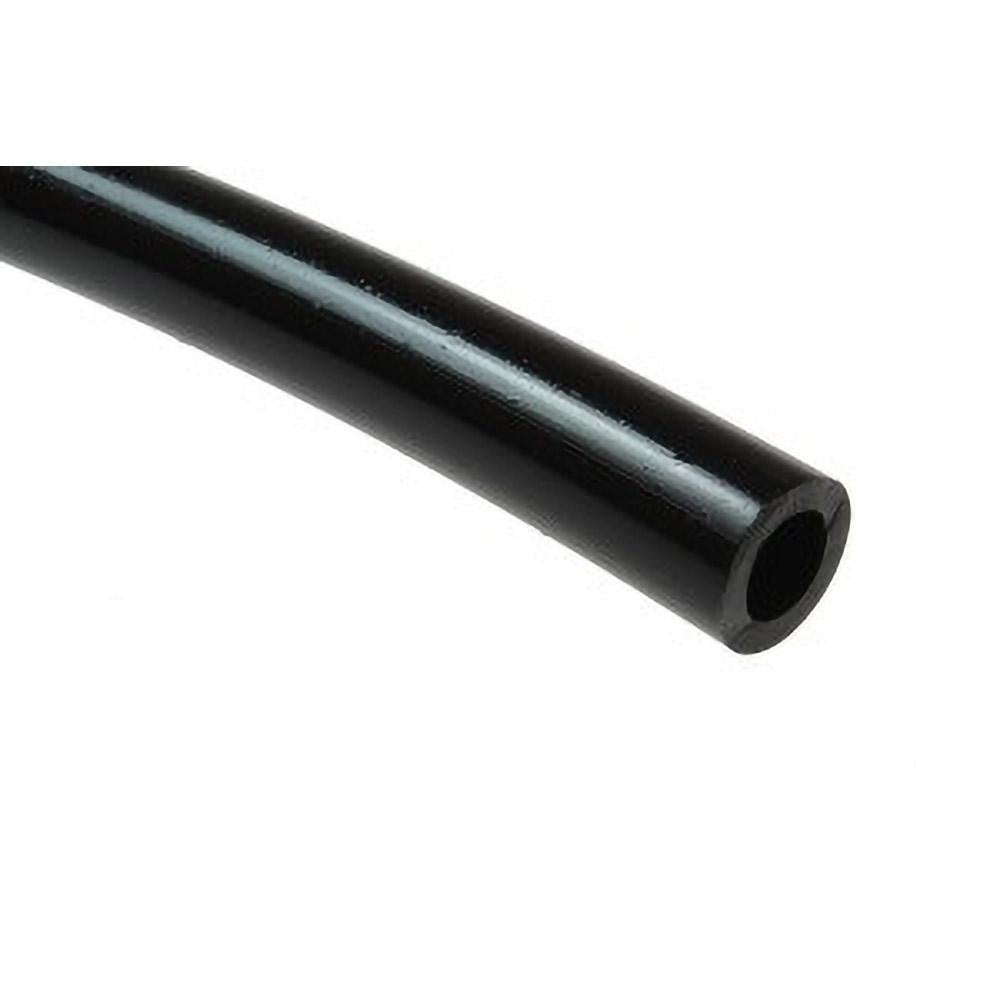

Coilhose Pneumatics NC0465-2500K Nylon Tubing 275 Psi

Product Description

The COILHOSE PNEUMATICS NC0465-2500K is a flexible black nylon pneumatic tubing supplied in a 2,500-foot coil and sold in 1-foot increments with a 25-foot minimum cut length. Rated to 275 psi maximum working pressure and designed to operate across a temperature range of -60 to 200 degrees F, this tubing is built for demanding compressed air and fluid transfer applications. The nylon construction delivers a hardness rating of 78 HR with a wall thickness of 0.65 mm, balancing flexibility with pressure retention. Licensed HVAC technicians, plumbers, and pneumatic system installers rely on this tubing for routing air lines through tight spaces in commercial and industrial environments.

This tubing is suited for residential and commercial pneumatic systems where reliable air delivery and resistance to temperature extremes are required. The 4.00 mm outside diameter and 2.70 mm inside diameter make it a compact, lightweight option for instrument air lines, control circuits, and tool supply runs. It is compatible with Coilock fittings and Poly-Tube fittings, making it a practical choice for shops and job sites already running those fitting systems. The 2,500-foot coil format reduces splices on long runs and suits contractors who need continuous lengths on larger installations.

Key Features

• 275 psi maximum working pressure for standard compressed air and fluid transfer service
• Wide temperature range of -60 to 200 degrees F suits both cold-environment and elevated-temperature installations
• Flexible nylon construction with 78 HR hardness resists kinking while maintaining structural integrity
• UL94HB flame rating provides a baseline fire-performance standard for installed systems
• Compatible with Coilock fittings and Poly-Tube fittings for easy termination
• Sold in 1-foot increments with a 25-foot minimum cut length from a 2,500-foot coil

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings as stated by the manufacturer. Suitable for use in pneumatic control and compressed air distribution systems requiring 4.00 mm OD nylon tubing.

Installation Notes

Installation is typically performed by pneumatic system technicians or licensed mechanical contractors. Before cutting or connecting tubing, depressurize and lock out the air supply line in accordance with applicable safety procedures. Use appropriate tubing cutters to ensure a clean, square cut for leak-free fitting engagement. Verify that all fittings are rated to at least the system operating pressure before pressurizing the completed assembly.
