Coilhose Pneumatics NC0440-100RD Nylon Tube 1/4in Od 100ft

Product Description

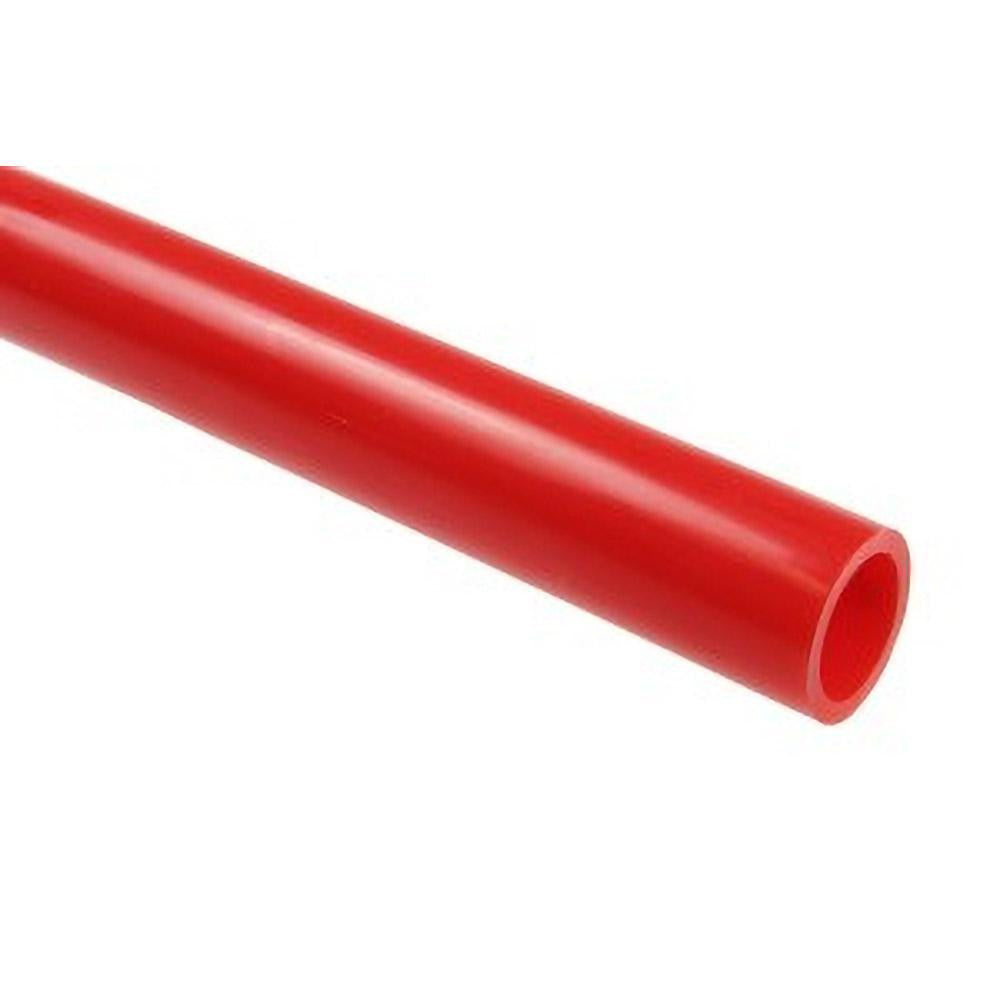

The COILHOSE PNEUMATICS NC0440-100RD is a flexible nylon pneumatic tube rated for demanding compressed-air and fluid-transfer applications. With a 0.25-inch outside diameter and a 0.170-inch inside diameter, this tube delivers a maximum working pressure of 265 psi across a wide service temperature range of -60 to 200 degrees F. Supplied as a 100-foot coil weighing 1.1 pounds, it is color-coded red for easy circuit identification. Licensed HVAC technicians, plumbers, pneumatic system installers, and industrial maintenance technicians all work with this type of tubing in both shop and field environments.

This nylon tube is suited for pneumatic control lines, compressed-air distribution, and light fluid-transfer runs in residential, commercial, and light-industrial settings. The flexible construction allows routing through tight spaces and around obstacles without kinking. The 100-foot coil length is practical for longer runs or multiple branch drops from a single spool. Its UL94HB flame rating and broad temperature tolerance make it appropriate for use in equipment enclosures and conditioned mechanical spaces alike.

Key Features

• 265 psi maximum working pressure for reliable pneumatic service
• Operating range of -60 to 200 degrees F suits a wide range of environments
• Flexible construction with 78 Rockwell hardness for kink-resistant routing
• Red color coding supports fast circuit identification during installation and service
• UL94HB flame-rating standard compliance
• Compatible with Coilock fittings and poly-tube fittings for easy termination

Compatibility

Designed for use with Coilock fittings and poly-tube fittings as stated by the manufacturer. Suitable as a general-purpose nylon pneumatic tube in compressed-air systems requiring a 0.25-inch OD tube.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic system assembly and applicable codes. Depressurize and lock out the air supply before cutting or connecting tubing. Use a clean, square cut to ensure a proper seal at push-to-connect or compression fittings. Avoid routing near sharp edges or heat sources that exceed the 200 degrees F maximum service temperature rating.
