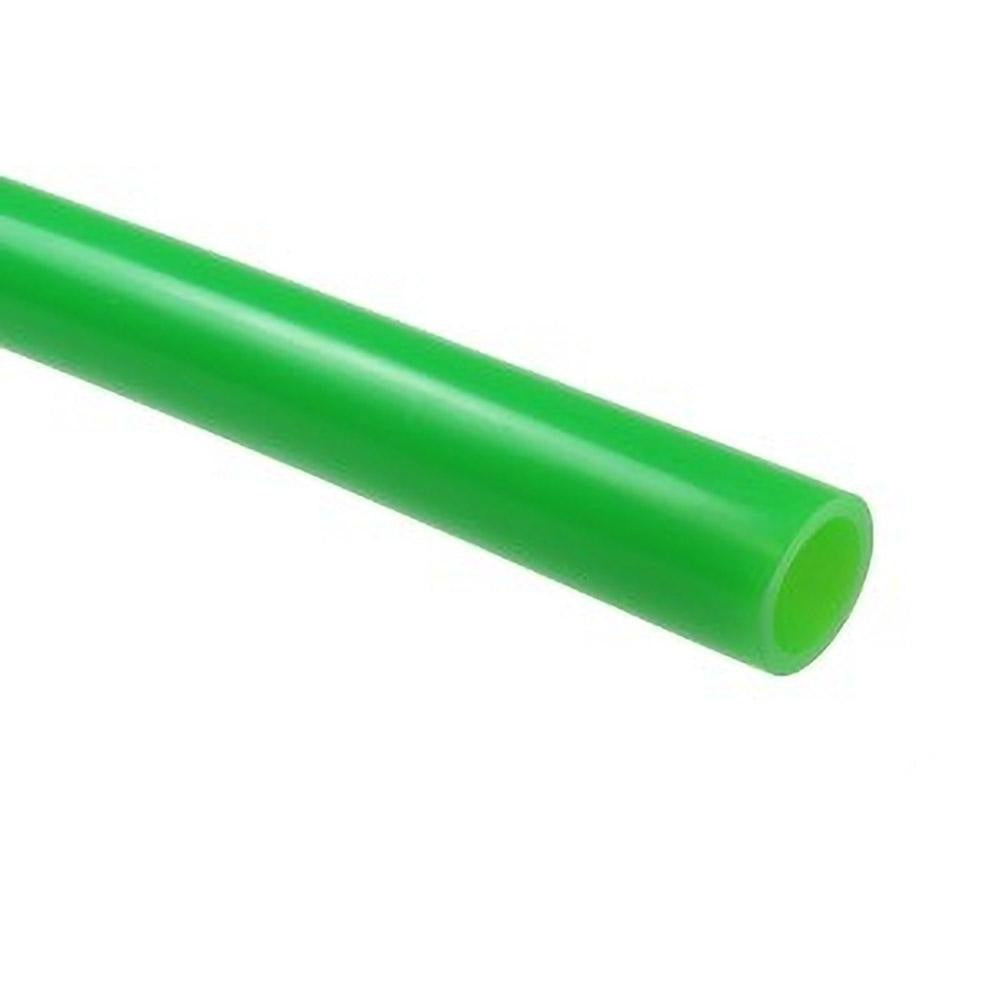

Coilhose Pneumatics NC0440-1000G Nylon Tube 1/4 Od 1000ft

Product Description

The COILHOSE PNEUMATICS NC0440-1000G is a flexible nylon pneumatic tube designed for use in compressed air and fluid transfer applications. It has an outside diameter of 1/4 inch, an inside diameter of 11/64 inch (0.170 inch), and a wall thickness of 0.040 inch. Rated to a maximum working pressure of 225 psi, it handles a wide temperature range from -60 degrees F to 200 degrees F, making it suitable for demanding shop and industrial environments. The tube ships as a 1,000-foot coil sold in 1-foot increments with a 25-foot minimum cut length. Licensed HVAC technicians, plumbers, and pneumatic system installers work with this type of tubing in both fixed and flexible line installations.

This nylon tube is intended for use in pneumatic plumbing systems, air tool supply lines, and low-pressure fluid transfer setups in residential and light commercial applications. Its green color aids in system identification. It is rated UL94HB for flammability and carries a hardness rating of 78 HR. The tube is confirmed compatible with Coilock fittings and Poly-Tube fittings, making it a practical choice for shops already using those fitting systems.

Key Features

• 1/4 inch OD with 0.170 inch ID for consistent flow and fitting engagement
• 225 psi maximum working pressure for standard pneumatic service
• Wide service temperature range: -60 degrees F to 200 degrees F
• Flexible nylon construction with 78 HR hardness rating
• UL94HB flame rating for code-sensitive installations
• Green color for easy system identification in multi-line setups
• 1,000-foot coil sold in 1-foot increments, 25-foot minimum cut

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings as specified by the manufacturer. Designed for pneumatic tube applications requiring 1/4 inch OD nylon tubing.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or pipefitter familiar with compressed air plumbing practices. Shut off and bleed all system pressure before cutting or connecting tubing. Use a clean, square cut to ensure a proper seal at push-to-connect or compression fittings. Verify that all fitting and pressure ratings are compatible with the intended system operating pressure before pressurizing.
