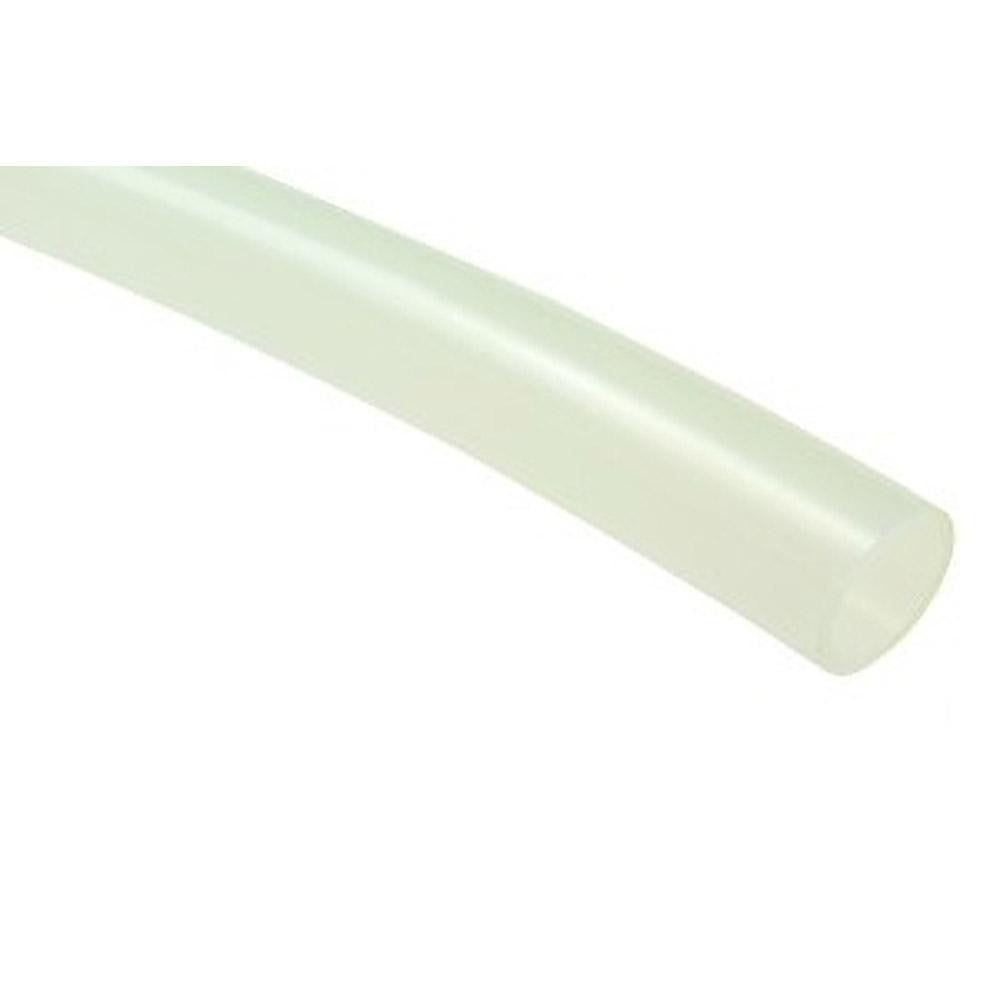

Coilhose Pneumatics NC0325-2000N Nylon Tube 9/64 Id

Product Description

The COILHOSE PNEUMATICS NC0325-2000N is a flexible nylon pneumatic tube designed for use in compressed air and fluid transfer applications. It features a 9/64 inch (0.138 inch) inside diameter and a 3/16 inch outside diameter with a 0.025 inch wall thickness. Rated to 225 psi maximum working pressure and suitable for temperatures ranging from -60 degrees F to 200 degrees F, this tube handles demanding shop and field conditions. It arrives as a 2,000 foot coil, priced per 1 foot increment with a 25 foot minimum cut length. Installation is handled by plumbers, pipefitters, and pneumatic system technicians.

This nylon tube is suited for light industrial, commercial, and trade applications where a flexible, pressure-rated line is needed between pneumatic components. Its natural color and flexible construction make it easy to route through tight spaces or along equipment frames. The tube is compatible with Coilock fittings and Poly-Tube fittings, making it a practical choice for building or extending pneumatic circuits in HVAC, manufacturing, and general trade environments. The 2,000 foot coil format is intended for contractors and shops that cut custom lengths in the field or at the bench.

Key Features

• 9/64 inch ID and 3/16 inch OD with 0.025 inch wall thickness for consistent flow and pressure retention
• 225 psi maximum working pressure for standard pneumatic service
• Wide temperature range: -60 degrees F to 200 degrees F
• Flexible nylon construction with 78 HR hardness rating for durability without brittleness
• Compatible with Coilock fittings and Poly-Tube fittings
• UL94HB flame rating for use in applications with fire-retardancy requirements
• 2,000 foot coil with 1 foot increment pricing and 25 foot minimum cut length

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings. Designed for use in pneumatic tubing systems requiring a flexible nylon line at 3/16 inch OD.

Installation Notes

Pneumatic tubing installation is typically performed by pipefitters, HVAC technicians, or pneumatic system technicians. Before making or breaking any connections, depressurize the system completely and verify zero pressure with a gauge. Use the appropriate tube cutter for nylon to ensure a clean, square cut before inserting into fittings. Follow the fitting manufacturer's instructions for insertion depth and retention to maintain rated pressure integrity.
