Coilhose Pneumatics LRM0808 Barbed Male Hose Connector

Product Description

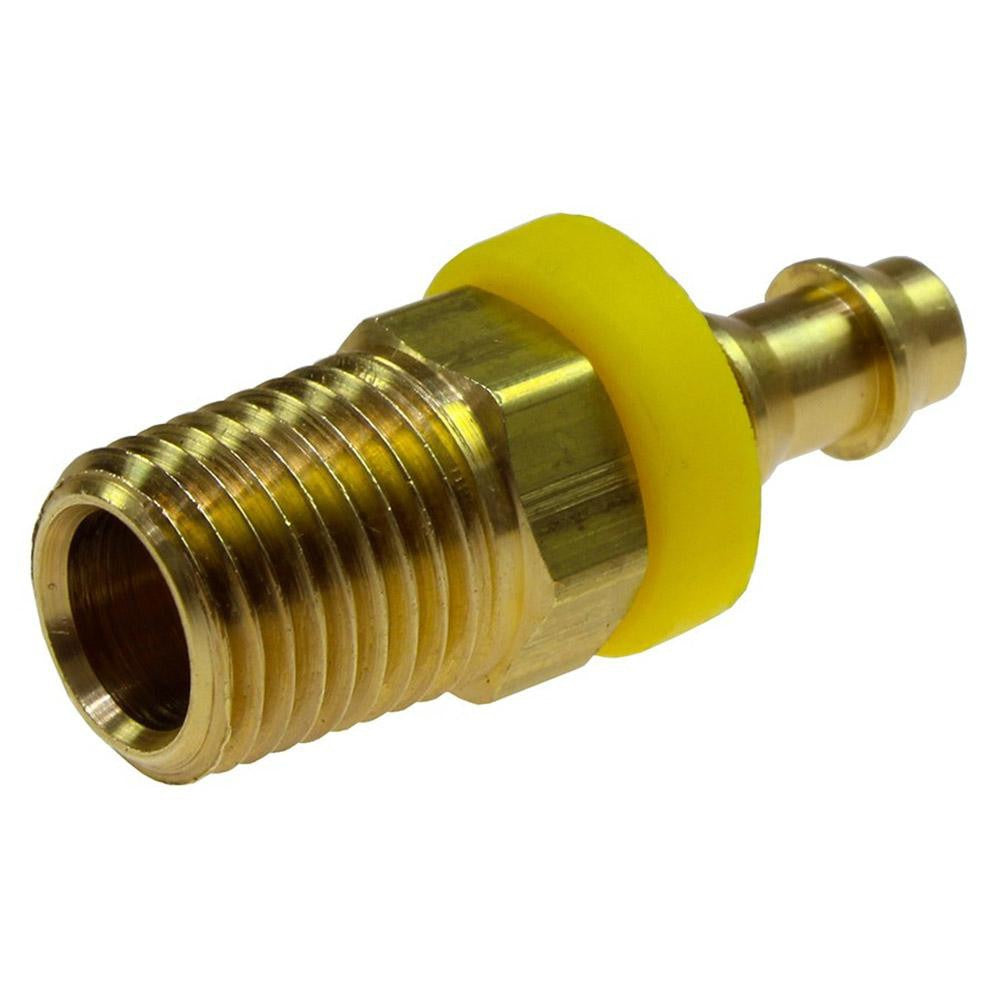

The COILHOSE PNEUMATICS LRM0808 is a barbed push-on hose male connector designed for pneumatic and fluid transfer plumbing applications. Machined from brass, this fitting accepts a 1/2-inch barbed hose connection on one end and threads into a 1/2-inch NPT female port on the other. The threaded connection secures the fitting into manifolds, valves, cylinders, or distribution blocks, while the barbed end grips push-on hose without the need for clamps in standard-pressure service. Rated to 300 psi maximum working pressure, it handles operating temperatures from -40 degrees F to 212 degrees F, making it suitable for compressed air, water, and compatible industrial fluid lines. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers.

This connector is used in light industrial and commercial pneumatic systems where 1/2-inch push-on hose must terminate at a threaded NPT port. Common install scenarios include air tool drops, compressor outlet piping, lubrication lines, and equipment manifold connections. The NPT thread profile provides a standard fit across a wide range of North American equipment and replacement components. Both residential shop air systems and commercial production environments regularly use this fitting size and configuration.

Key Features

• Brass construction resists corrosion and withstands moderate mechanical stress in pneumatic service
• 1/2-inch NPT male thread for connection into standard North American threaded ports
• 1/2-inch barb end accepts push-on hose without additional clamp hardware in standard service
• Rated to 300 psi maximum working pressure
• Wide temperature range: -40 degrees F to 212 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation fitting for pneumatic and fluid transfer systems using 1/2-inch inside diameter push-on hose and 1/2-inch NPT threaded ports.

Installation Notes

Installation is typically performed by a licensed pipefitter, plumber, or qualified pneumatic technician. Depressurize and lock out the air or fluid supply before removing or installing any fitting. Apply thread sealant or PTFE tape to the NPT male threads per standard piping practice before torquing into the female port. Inspect the barbed hose connection under initial pressure to confirm a leak-free seal before returning the system to full service.
