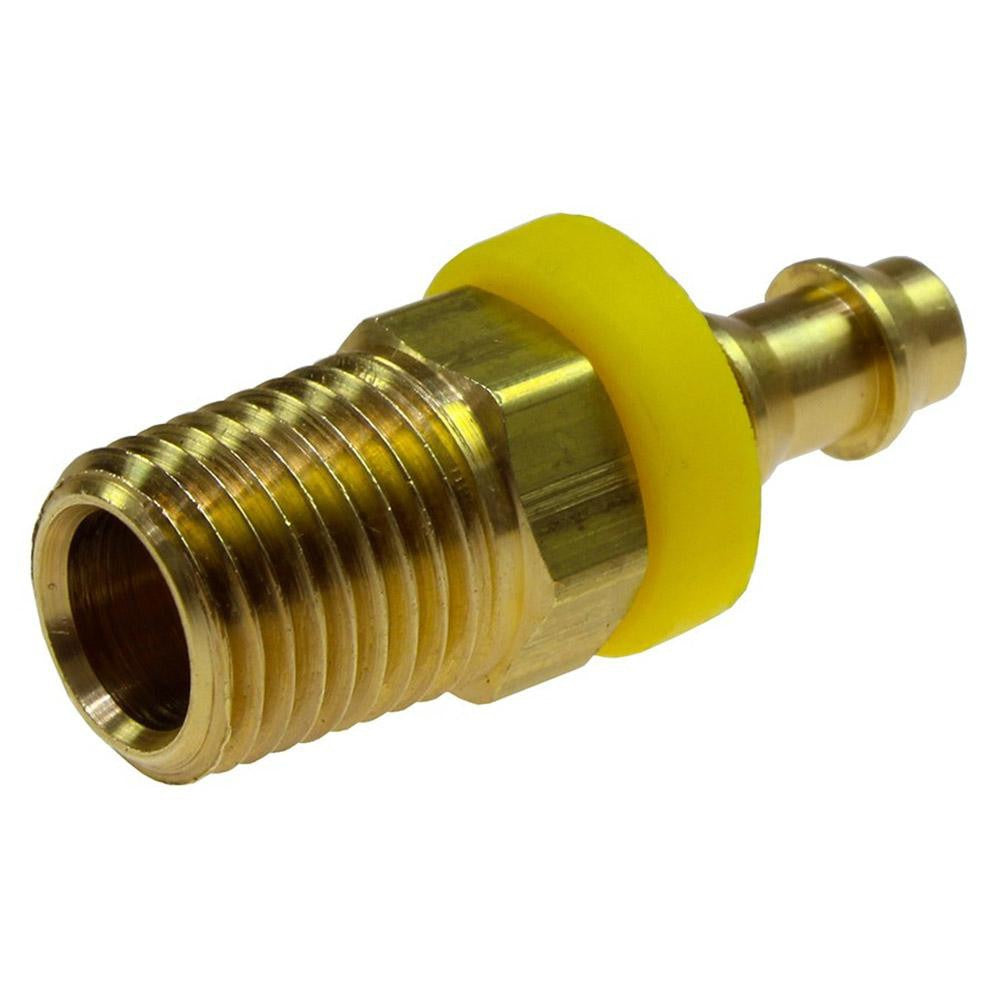

Coilhose Pneumatics LRM0604 Male Hose Connector Brass

Product Description

The COILHOSE PNEUMATICS LRM0604 is a barbed push-on hose male connector designed for use in pneumatic and fluid transfer lines. It features a 3/8 inch barb for secure push-on hose attachment and a 1/4 inch NPT threaded end for connection to equipment ports, manifolds, or inline fittings. Constructed from brass, the LRM0604 handles a working pressure range up to 300 psi and operates across a temperature range of -40 degrees F to 212 degrees F. This fitting is sized and rated for demanding shop-air and compressed-air service environments where a reliable barb-to-male-thread transition is required.

The LRM0604 is suited for use in compressed air distribution systems, pneumatic tool lines, and general-purpose fluid handling assemblies. It is commonly installed at connection points where a push-on hose needs to terminate at a threaded port on a valve, manifold, compressor outlet, or pneumatic component. The 1/4 inch NPT thread is a standard size found throughout commercial and light industrial pneumatic plumbing. This fitting is appropriate for both shop maintenance applications and production-floor pneumatic systems.

Key Features

• 3/8 inch barb accepts push-on hose without clamps for fast, secure assembly
• 1/4 inch NPT male thread provides compatibility with standard pneumatic and fluid system ports
• Brass construction resists corrosion and withstands shop-air service conditions
• Rated to 300 psi maximum working pressure
• Operating temperature range of -40 degrees F to 212 degrees F suits a wide range of environments

Compatibility

Designed as a standard barbed push-on male connector fitting for pneumatic hose assemblies using 3/8 inch inside diameter push-on hose and 1/4 inch NPT threaded ports.

Installation Notes

Installation is performed by pneumatic or mechanical service technicians. Depressurize the system completely before removing or installing any fittings. Apply thread sealant or PTFE tape to the NPT male threads per standard practice before threading into the receiving port. Push-on barb connections should be fully seated over the hose bead to ensure a secure, leak-free assembly.
