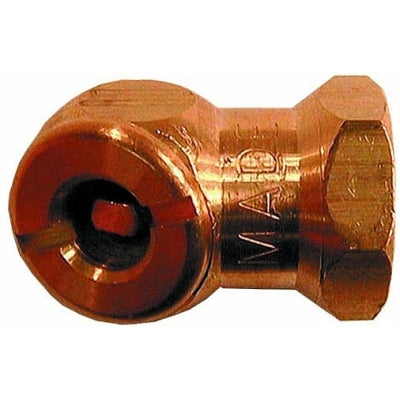

Coilhose Pneumatics CH10 Chuck Assembly 1/4 in (NPT) F

Product Description

The Coilhose Pneumatics Chuck Assembly CH10 is a reliable component for tire inflation systems. This chuck assembly features a brass closed check ball and a dual foot design with an offset shape. The connection type is 1/4 inch (NPT) female thread, ensuring a secure and firm fit.

• Brass closed check ball chuck
• Dual foot chuck with closed check
• Engages the tire valve to allow air flow

Product Highlights

Ideal for tire inflation, this chuck assembly is made from durable brass material and has an offset shape for easy use. The assembly only allows air flow once the tire valve is engaged, ensuring controlled inflation.

Product Information

Standard Information

• Brand: Coilhose Pneumatics
• Manufacturer Part Number: CH10
• UPC: 292923171777
• UNSPSC: 27131600
• Country of Origin: China (CN)

Technical Specifications

• Weight: 0.105 lbs
• Length: 1.15 inches
• Width: 0.75 inches
• Height: 0.75 inches
• Material: Brass
• Connection Type: Female/Female
• Female Thread: 1/4 inch (NPT)
• Shape: Offset
• Application: Tire Inflation
