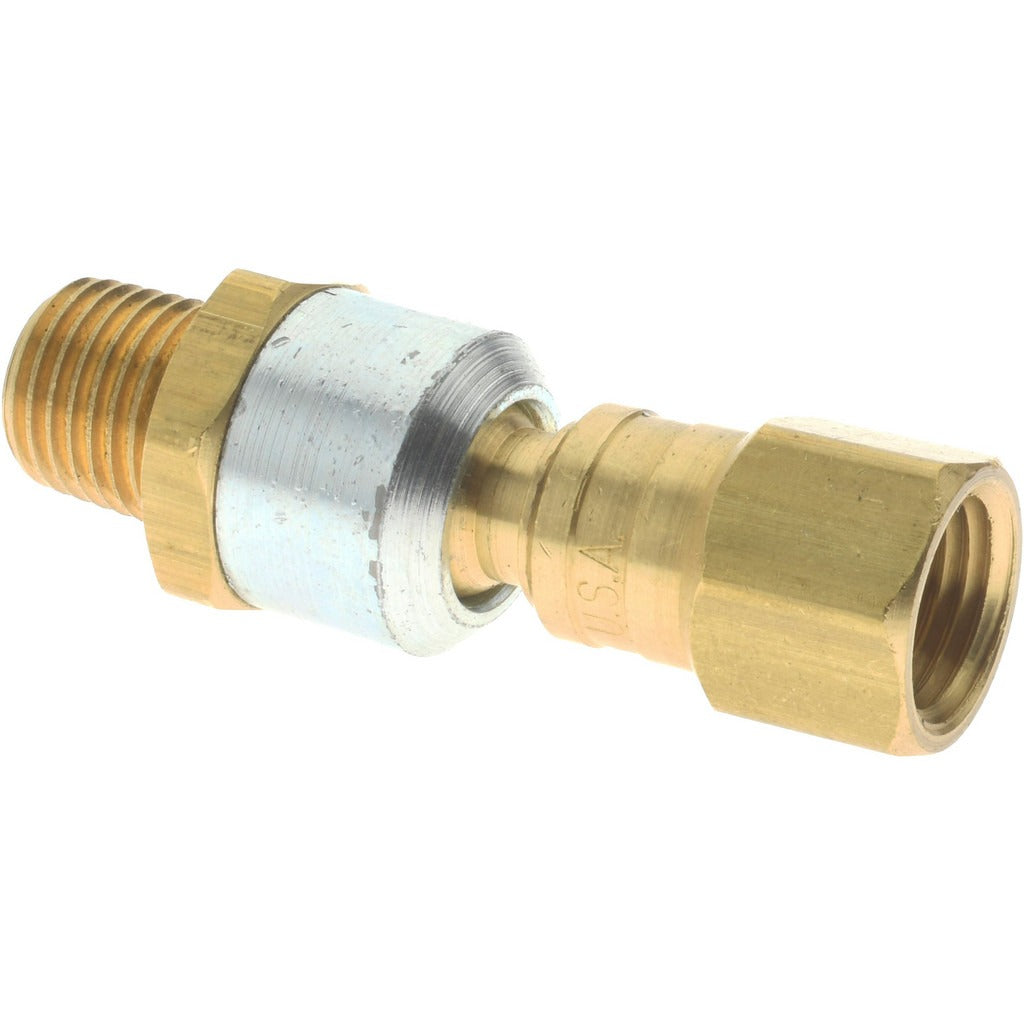

Coilhose Pneumatics CF0404BS Ball Swivel Plug 1/4 Npt

Product Description

The COILHOSE PNEUMATICS CF0404BS is a ball swivel plug-style pneumatic hose coupling designed for use in compressed air systems. It features a 1/4-inch male x female NPT threaded connection and is machined from brass for durability in industrial and shop environments. The swivel ball design allows the hose to rotate freely at the connection point, reducing hose kinking and tangling during use. Rated to 225 psi maximum working pressure, this coupling is appropriate for general compressed air service in both production and maintenance settings. Licensed trades and industrial technicians install this type of fitting as part of hose assemblies, quick-connect manifolds, and air tool supply lines.

This ball swivel plug coupling is suited for use in light to medium industrial compressed air systems, automotive service bays, woodworking shops, and general manufacturing environments. The 1/4-inch NPT thread size is one of the most common sizes found in portable compressor setups and stationary shop air systems. It is typically installed inline on air hoses to allow tool-end rotation without twisting the hose body. The brass construction makes it appropriate for dry compressed air applications where resistance to corrosion and moderate mechanical stress is required.

Key Features

• Ball swivel design allows hose rotation at the connection point to reduce kinking
• 1/4-inch male x female NPT threaded connection for standard shop air compatibility
• Brass construction provides corrosion resistance and durability in compressed air service
• Rated to 225 psi maximum working pressure
• Compact and lightweight at 0.25 pounds

Compatibility

Designed as an OEM-style replacement or upgrade fitting for pneumatic hose assemblies using 1/4-inch NPT threaded connections in standard compressed air systems.

Installation Notes

Installation is performed by a pipefitter, industrial mechanic, or qualified pneumatic technician. Depressurize the air supply line completely before removing or installing any pneumatic fittings. Apply thread sealant tape or pipe compound appropriate for compressed air service to the male NPT threads before assembly. Do not exceed the rated 225 psi working pressure for this fitting.
