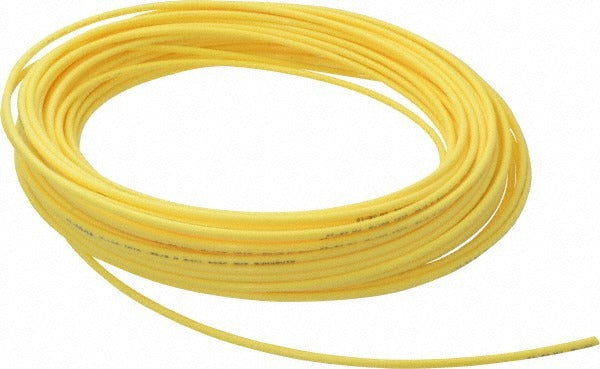

Coilhose Pneumatics ADOT532-100D-Y Nylon Tube 5/32 in Od 100 Ft

Product Description

The COILHOSE PNEUMATICS ADOT532-100D-Y is a single-wall nylon pneumatic tube rated for continuous use in compressed air and fluid transfer applications. It measures 3/32 inches (0.092 inches) inside diameter and 5/32 inches (0.156 inches) outside diameter, supplied as a 100-foot coil in yellow. The tube handles pressures up to 150 psi and operates across a temperature range of -40 to 200 degrees F, making it suitable for both indoor shop environments and outdoor service conditions. Licensed technicians and service professionals use this tubing in pneumatic control circuits, instrument air lines, and light-duty fluid conveyance runs.

This tube is a fit for residential and commercial pneumatic systems where small-bore, flexible tubing is needed for instrument air, control signal lines, or push-to-connect fitting assemblies. The yellow color supports quick visual identification of tubing runs in multi-line installations. With a minimum bend radius of 0.5 inches, it routes cleanly through tight spaces without kinking. It meets SAE Specification J844 Type A, which is a common requirement for pneumatic brake and control tubing in trade and OEM applications.

Key Features

• 150 psi maximum working pressure for compressed air and fluid service
• Operating temperature range: -40 to 200 degrees F
• 3/32 inches ID and 5/32 inches OD with 0.32-inch wall thickness
• 0.5-inch minimum bend radius for routing in confined spaces
• Yellow color for easy identification in multi-line pneumatic layouts
• Meets SAE J844 Type A specifications

Compatibility

Designed for use with standard push-to-connect and compression fittings sized for 5/32-inch OD nylon tubing in pneumatic control and instrument air systems meeting SAE J844 Type A requirements.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic system plumbing. Depressurize and lock out the pneumatic circuit before cutting or connecting tubing. Use a clean, square cut to ensure a proper seal at push-to-connect or compression fittings. Verify all fitting connections meet applicable system pressure ratings before returning the circuit to service.
