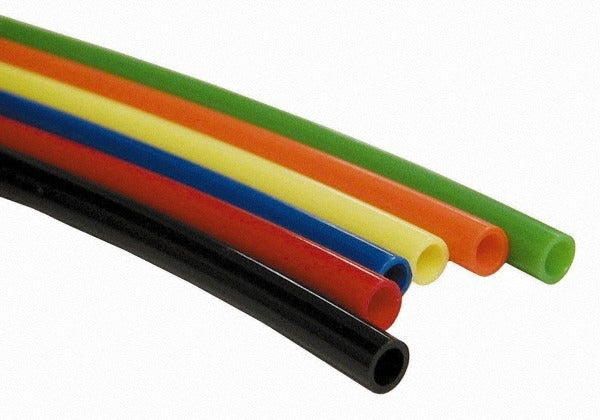

Coilhose Pneumatics ADOT532-100D-O Nylon Tube 5/32 in Od 100 Ft

Product Description

The COILHOSE PNEUMATICS ADOT532-100D-O is a nylon pneumatic tubing coil designed for compressed air and fluid transfer applications in industrial and trade settings. It features a 3/32-inch inside diameter (0.092 inches) and a 5/32-inch outside diameter (0.156 inches), with a 100-foot coil length. Rated to a maximum working pressure of 150 psi and a temperature range of -40 to 200 degrees F, this tubing handles the demands of shop air systems, pneumatic control lines, and light fluid service. Licensed plumbers, HVAC technicians, and industrial mechanics install this type of tubing for pneumatic instrumentation and control circuits.

This nylon tube is suited for residential and light commercial pneumatic systems where flexible, pressure-rated tubing is required for air lines, instrument connections, and low-pressure fluid routing. The orange color aids in visual identification during installation and service. The 100-foot coil length provides enough material for longer runs or multiple shorter drops without splicing. It meets SAE Specifications J844 Type A, making it appropriate for air brake and general pneumatic tubing applications in trade environments.

Key Features

• 3/32-inch ID and 5/32-inch OD nylon construction for reliable pneumatic line integrity
• 150 psi maximum working pressure rating
• Operating temperature range from -40 to 200 degrees F
• 0.50-inch minimum bend radius for routing in tight spaces
• Orange color for easy visual identification in multi-line installations
• Meets SAE Specifications J844 Type A

Compatibility

Designed as an OEM-style replacement and standard-fit nylon pneumatic tube for compressed air and fluid transfer applications requiring SAE J844 Type A compliant tubing with 5/32-inch OD fittings.

Installation Notes

Installation is typically performed by licensed mechanics, HVAC technicians, or plumbers familiar with pneumatic systems. Depressurize and lock out the air supply before cutting or connecting tubing. Use proper nylon tube cutters to ensure a clean, square cut for leak-free fitting connections. Follow applicable codes and fitting manufacturer torque guidance when securing compression or push-to-connect fittings.
