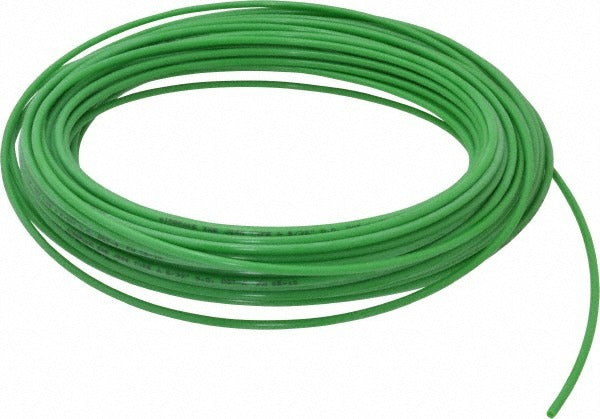

Coilhose Pneumatics ADOT532-100D-G Nylon Tube 5/32 in Od 100 Ft

Product Description

The COILHOSE PNEUMATICS ADOT532-100D-G is a flexible nylon pneumatic tubing designed for compressed air and fluid transfer applications in industrial and workshop environments. It features a 3/32 inch (0.092 inch) inside diameter and a 5/32 inch (0.156 inch) outside diameter with a wall thickness of 0.320 inches. Rated to 150 psi maximum working pressure and suitable for temperatures ranging from -40 degrees F to 200 degrees F, this tubing handles demanding service conditions. The 100-foot coil length provides ample material for routing runs in pneumatic control systems, automation lines, and air tool supply circuits. The green color aids in system identification.

This nylon tube is suited for light industrial pneumatic systems, instrumentation lines, and small-bore air distribution where flexibility and chemical resistance are required. With a minimum bend radius of 0.500 inches, it routes easily through tight spaces in panel enclosures, machinery frames, and tool stations. It meets SAE Specification J844 Type A, making it appropriate for pneumatic brake and air system tubing applications in both stationary and mobile equipment. Installation is typically performed by pneumatic system technicians, millwrights, or maintenance professionals.

Key Features

• 150 psi maximum working pressure for reliable compressed air service
• Wide temperature range of -40 degrees F to 200 degrees F suits harsh environments
• 3/32 inch ID and 5/32 inch OD for precise fitment with compatible push-to-connect and compression fittings
• 0.500 inch minimum bend radius allows routing through tight clearances
• 100-foot coil length reduces splices and fittings in long runs
• Green color supports color-coded pneumatic system organization
• Meets SAE J844 Type A specifications

Compatibility

Designed for use with standard 5/32 inch OD pneumatic push-to-connect and compression fittings in compressed air and fluid transfer systems meeting SAE J844 Type A requirements.

Installation Notes

Depressurize and lock out the pneumatic system before cutting or connecting tubing. Use a clean, square tubing cut to ensure a leak-free seal at push-to-connect fittings. Avoid kinking below the minimum bend radius of 0.500 inches, as kinks reduce flow and can weaken the tube wall. Route tubing away from sharp edges, extreme heat sources, and moving parts to prevent abrasion and premature wear.
