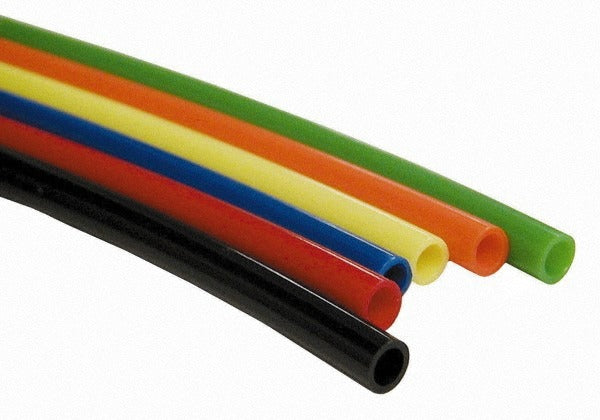

Coilhose Pneumatics ADOT516-100D-Y Nylon Tube 5/16in Od 100ft

Product Description

The COILHOSE PNEUMATICS ADOT516-100D-Y is a 100-foot coil of yellow nylon pneumatic tubing rated for compressed air and fluid transfer applications in industrial and commercial environments. With an outside diameter of 5/16 inches (0.3125 inches) and an inside diameter of 15/64 inches (0.2320 inches), this tube delivers a 0.040-inch wall thickness suited for moderate-pressure service. It handles a maximum working pressure of 150 psi and operates across a temperature range of -40 to 200 degrees F. Licensed pneumatic technicians, maintenance mechanics, and industrial pipefitters install this tubing as part of compressed air distribution systems, tooling lines, and control circuits.

This nylon tube is appropriate for use in pneumatic control lines, air tool supply runs, and low-to-medium pressure fluid transfer in both industrial facilities and commercial settings. The yellow color provides visual identification in multi-line installations where quick differentiation of tubing runs is important. The 100-foot coil length allows flexible routing across equipment and workstations without intermediate splices. It meets SAE Specifications J844 Type A, making it a recognized standard for automotive and industrial pneumatic tubing applications.

Key Features

• 150 psi maximum working pressure for moderate-pressure compressed air service
• Temperature range of -40 to 200 degrees F suits both cold storage and heated industrial environments
• 5/16-inch OD with 0.040-inch wall thickness provides consistent dimensional accuracy for fittings
• 1.25-inch minimum bend radius allows tight routing without kinking
• Yellow color coding aids identification in multi-line pneumatic systems
• Meets SAE Specifications J844 Type A

Compatibility

Designed as a standard 5/16-inch OD nylon pneumatic tube compatible with push-to-connect and compression fittings sized for 5/16-inch OD tubing in compressed air and fluid transfer systems meeting SAE J844 Type A specifications.

Installation Notes

Installation is typically performed by licensed pneumatic technicians or maintenance mechanics. Depressurize and lock out the air supply before cutting or connecting tubing. Use a clean, square tube cut to ensure a proper seal at push-to-connect or compression fittings. Avoid exceeding the 1.25-inch minimum bend radius to prevent kinking and flow restriction.
