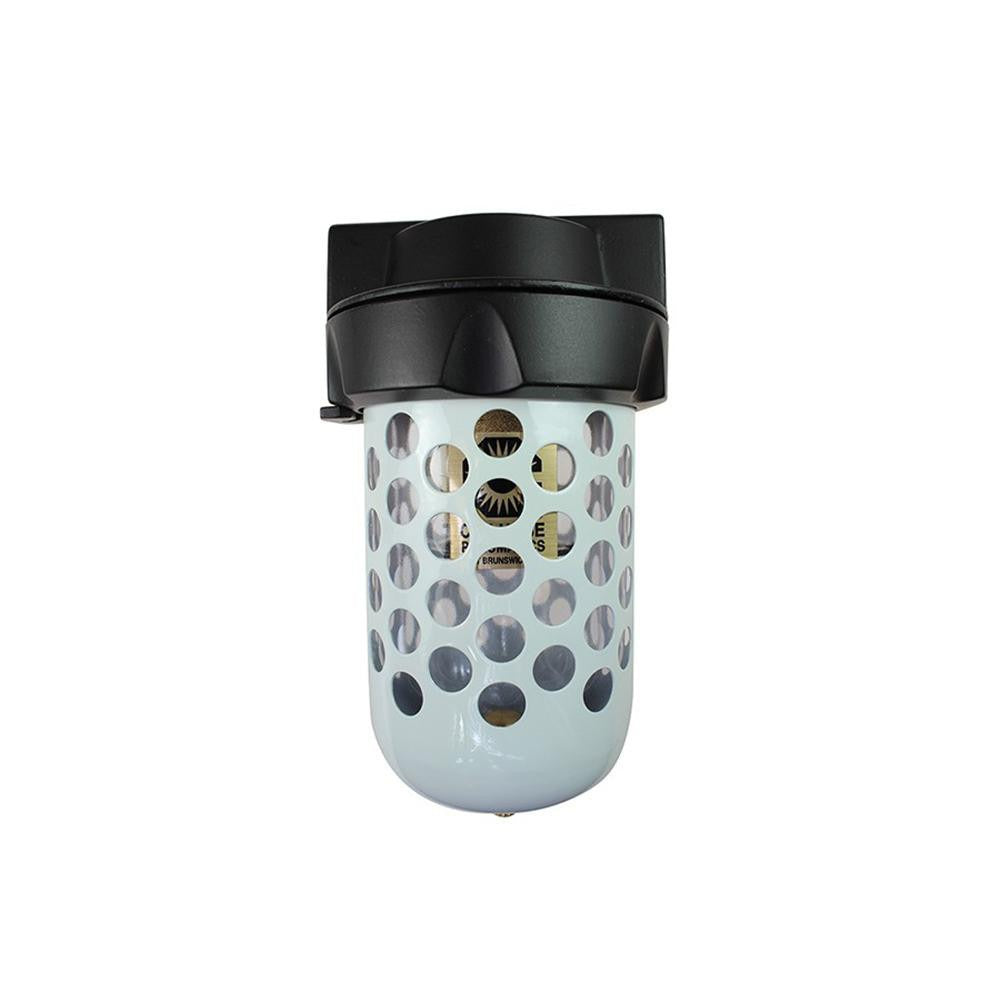

Coilhose Pneumatics 8828D Air Filter 1 Inch Npt Auto Drain

Product Description

The COILHOSE PNEUMATICS 8828D is a heavy-duty compressed air filter designed to remove particulates from compressed air lines in industrial and commercial pneumatic systems. Rated at 40 microns, the sintered bronze filter media captures contaminants before they reach downstream tools and equipment. The 1 inch NPT port handles high-volume air flow, while the automatic drain eliminates manual service intervals. The polycarbonate bowl holds 23 ounces and provides a clear view of collected moisture and debris. This filter is installed by industrial maintenance technicians, pneumatic system specialists, and mechanical contractors working on compressed air distribution systems.

The 8828D is suited for use on compressed air supply lines feeding pneumatic tools, automated machinery, spray finishing equipment, and process air systems in manufacturing, assembly, and maintenance environments. The 1 inch NPT end connections allow direct inline installation into standard threaded pipe runs. The automatic drain function makes this unit well-suited for installations where access for manual draining is limited or inconvenient. This is a Series 88 heavy-duty unit intended for demanding, continuous-duty applications.

Key Features

• 40-micron sintered bronze filter media removes particulates from compressed air
• Automatic drain eliminates manual drainage requirements
• 1 inch NPT end connections for direct inline installation
• Polycarbonate bowl with 23-ounce capacity for visible contamination monitoring
• Series 88 heavy-duty construction rated for demanding pneumatic applications
• Overall height of 9 inches for straightforward clearance planning

Compatibility

Designed as a heavy-duty inline compressed air filter for pneumatic systems using standard 1 inch NPT threaded pipe connections. Part of the COILHOSE PNEUMATICS Series 88 filter lineup.

Installation Notes

Installation should be performed by a qualified industrial mechanic or pneumatic systems technician. Depressurize and lock out the compressed air supply before installing or servicing this filter. Thread sealant rated for compressed air service should be applied to all NPT connections per standard practice. Mount the unit vertically with the bowl facing downward to allow proper condensate collection and automatic drain operation.
