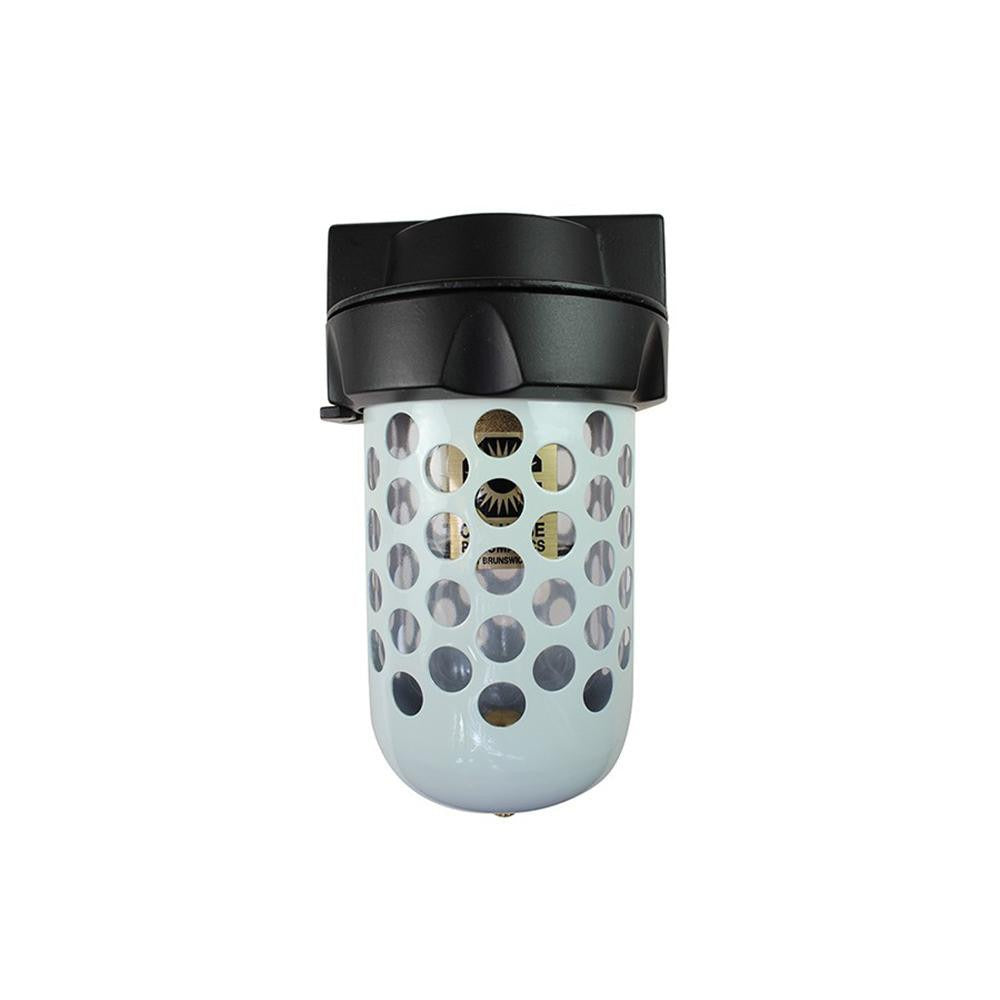

Coilhose Pneumatics 8824R Compressed Air Filter 1/2 in Npt

Product Description

The COILHOSE PNEUMATICS 8824R is a heavy-duty compressed air filter designed to remove particulates from compressed air lines in industrial and trade applications. Featuring a sintered bronze filter media with a 40-micron rating, it traps contaminants before they reach downstream equipment such as pneumatic tools, regulators, and actuators. The polycarbonate bowl holds up to 8 ounces of accumulated liquid and debris and uses a manual drain for controlled purging. Connections are 1/2 inch NPT on both inlet and outlet. HVAC technicians, plumbers, pipefitters, and industrial maintenance professionals install this filter as part of a compressed air preparation system.

The 8824R fits into compressed air systems where clean, dry air is required upstream of sensitive pneumatic components. It is suited for workshop air lines, service bays, light manufacturing environments, and mechanical rooms where tools and controls rely on consistent air quality. The manual drain allows the technician to purge collected moisture and debris at scheduled intervals, which is standard practice in any preventive maintenance routine for compressed air systems. The Series 88 designation places this unit within a product family that includes matching regulators and lubricators for modular air preparation assemblies.

Key Features

• 40-micron sintered bronze filter media removes particulates from compressed air supply
• 1/2 inch NPT end connections for direct inline installation
• Polycarbonate bowl with 8-ounce capacity for visible monitoring of collected contaminants
• Manual drain for controlled purging of accumulated moisture and debris
• Series 88 design allows pairing with compatible regulators and lubricators
• 7-inch overall height for straightforward dimensional planning during installation

Compatibility

Designed as an OEM-style replacement or new-installation filter for compressed air preparation systems using 1/2 inch NPT threaded connections. Compatible with Series 88 modular air preparation components from COILHOSE PNEUMATICS.

Installation Notes

Installation is typically performed by a pipefitter, HVAC technician, or industrial maintenance mechanic. Depressurize and lock out the compressed air supply before installing or servicing this filter. Use appropriate thread sealant on NPT connections and verify all joints are leak-free before returning the system to pressure. The bowl should be inspected and drained regularly to prevent overflow of accumulated liquid into the downstream air line.
