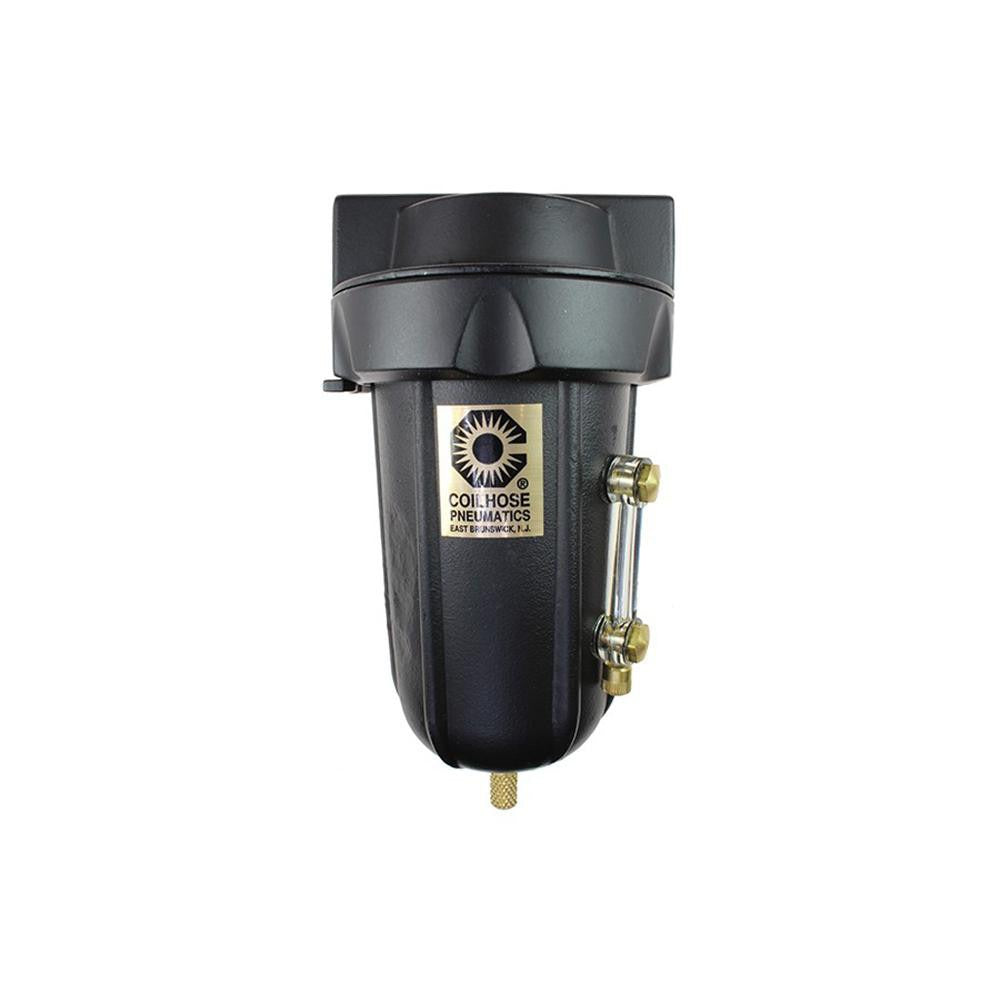

Coilhose Pneumatics 8824MD Air Filter 1/2 in Npt

Product Description

The COILHOSE PNEUMATICS 8824MD is a heavy-duty compressed air filter designed to remove particulate contamination from pneumatic systems. Built around a sintered bronze filter media with a 40-micron rating, it captures debris before it reaches downstream tools, valves, and cylinders. The cast aluminum body and aluminum bowl are built for industrial service. An automatic drain eliminates manual bowl servicing during normal operation, and an integrated sight glass lets technicians check bowl level at a glance without disassembly. This filter is installed by millwrights, pipefitters, and industrial maintenance technicians working on compressed air distribution systems.

The 8824MD is suited for industrial and commercial compressed air applications where continuous particulate filtration is required. The 1/2 inch NPT end connections make it a straightforward drop-in addition to standard compressed air headers, branch lines, and point-of-use supply drops. At 7 inches in height, it fits within typical inline filter station envelopes. The 8-ounce bowl capacity handles moderate condensate loads between drain cycles, and the automatic drain function keeps the bowl from flooding during high-humidity operation.

Key Features

• 40-micron sintered bronze filter media for reliable particulate removal
• Automatic drain eliminates manual bowl dumping during normal service
• Integrated sight glass for quick visual bowl-level inspection
• Cast aluminum body and aluminum bowl for industrial durability
• 1/2 inch NPT end connections for standard compressed air piping integration
• 8-ounce bowl capacity suited for moderate condensate volumes

Compatibility

Designed as an OEM-style inline compressed air filter for industrial and commercial pneumatic systems equipped with 1/2 inch NPT ported filter stations and air preparation assemblies.

Installation Notes

Installation should be performed by a qualified pipefitter or industrial maintenance technician following applicable compressed air system safety procedures. Depressurize and lock out the air supply before installing or servicing the filter. Mount the unit vertically with the bowl pointing downward to allow proper condensate collection and automatic drain function. Verify all NPT connections are sealed with appropriate thread sealant rated for compressed air service.
