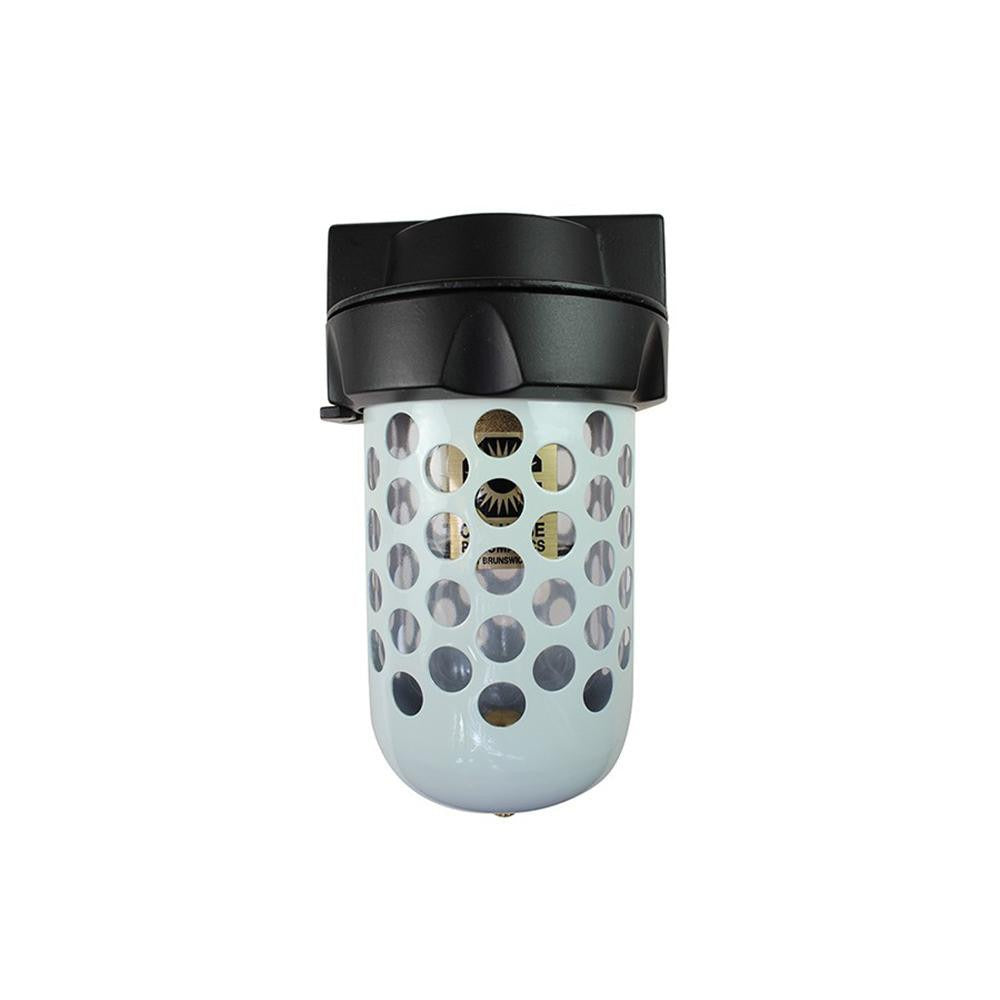

Coilhose Pneumatics 8823R Air Filter 3/8 Inch Npt

Product Description

The COILHOSE PNEUMATICS 8823R is a heavy-duty compressed air filter designed to remove particulates from compressed air lines in industrial and commercial pneumatic systems. Built around a sintered bronze filter media with a 40-micron rating, it captures contaminants before they reach downstream tools, valves, and cylinders. The polycarbonate bowl holds up to 4 ounces of collected fluid and debris, and a manual drain allows controlled purging without line shutdown. At 5 inches tall with 3/8 inch NPT end connections, this filter suits a wide range of air preparation assemblies.

This filter is suited for use in point-of-use air preparation systems on shop floors, maintenance lines, and equipment installations where compressed air quality is critical. The 3/8 inch NPT port size makes it compatible with common branch-line piping found in light manufacturing, assembly, and general industrial environments. It is part of the Coilhose Series 88 product line and is installed by industrial technicians, maintenance mechanics, and pipefitters as part of filter-regulator-lubricator (FRL) assemblies or standalone filtration setups.

Key Features

• 40-micron sintered bronze filter media removes particulates from compressed air flow
• 3/8 inch NPT end connections for straightforward inline installation
• Polycarbonate bowl with 4-ounce capacity for visible contaminant monitoring
• Manual drain for controlled, on-demand purging of collected fluid
• Heavy-duty construction rated for demanding industrial compressed air applications
• Part of the Coilhose Series 88 air preparation line

Compatibility

Designed as an OEM-style replacement or direct-fit component for compressed air preparation systems using 3/8 inch NPT piping connections in industrial and commercial pneumatic installations.

Installation Notes

Installation is typically performed by a licensed pipefitter, industrial mechanic, or qualified maintenance technician. Depressurize and lock out the compressed air supply before removing any existing filter or making connections. Apply thread sealant to NPT threads per shop practice and verify all connections are leak-free before returning the system to service. Inspect the polycarbonate bowl periodically and drain accumulated fluid as needed to maintain filter performance.
