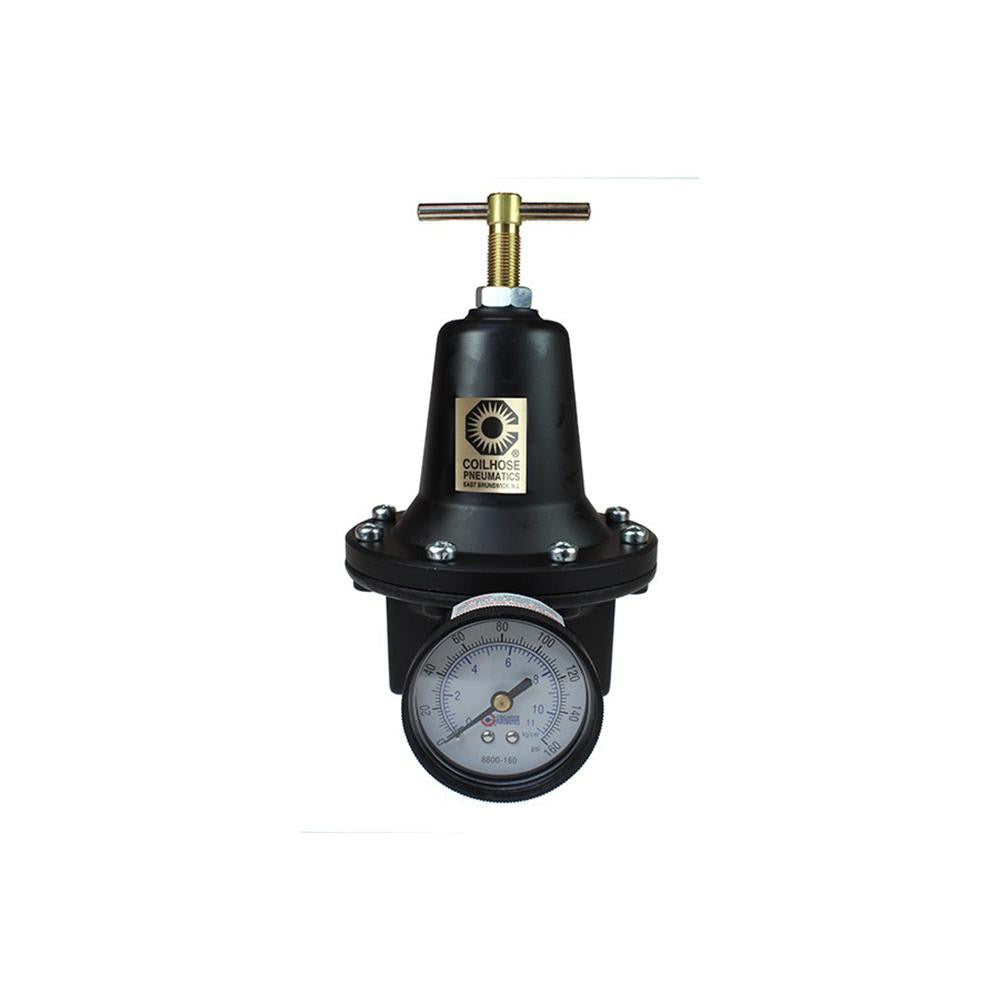

Coilhose Pneumatics 8802GH Air Regulator 1/4 Npt 250 Psi

Product Description

The COILHOSE PNEUMATICS 8802GH is a heavy-duty compressed air regulator designed to maintain consistent downstream pressure in pneumatic systems. Built from cast aluminum, it handles maximum supply pressures up to 250 psi and delivers up to 40 CFM of airflow through a 1/4 inch NPT port. The integrated T-handle allows tool-free pressure adjustments on the line, and the included pressure gauge gives a direct visual readout of regulated output pressure. A built-in relief function automatically vents excess pressure when the regulated set point is lowered. This regulator is suited for installation in compressed air distribution systems in industrial shops, service bays, and similar trade environments.

The 8802GH is intended for use with compressed air systems where precise pressure regulation is required at individual drop lines, tool stations, or equipment connections. The 1/4 inch NPT end connections make it compatible with standard compressed air piping and fitting assemblies. The heavy-duty T-handle design is well suited for applications where pressure adjustments are made frequently without the use of tools. It is not rated for use with fluids other than compressed air.

Key Features

• Maximum supply pressure of 250 psi with an output range of 0 to 200 psi
• Maximum airflow of 40 CFM through 1/4 inch NPT ports
• Cast aluminum body for lightweight durability in demanding shop environments
• Heavy-duty T-handle design allows tool-free pressure adjustment
• Pressure gauge included for direct visual monitoring of regulated output
• Built-in relief function vents pressure automatically when set point is reduced

Compatibility

Designed as an OEM-style replacement or new-installation regulator for standard compressed air distribution systems using 1/4 inch NPT connections.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system plumbing. Depressurize and lock out the air supply before installing or removing this regulator. Use thread sealant appropriate for compressed air service on all NPT connections. Verify that upstream supply pressure does not exceed the 250 psi maximum rating before placing the system back in service.
