Coilhose Pneumatics 770-S-BAG Air Blow Gun Safety Tip

Product Description

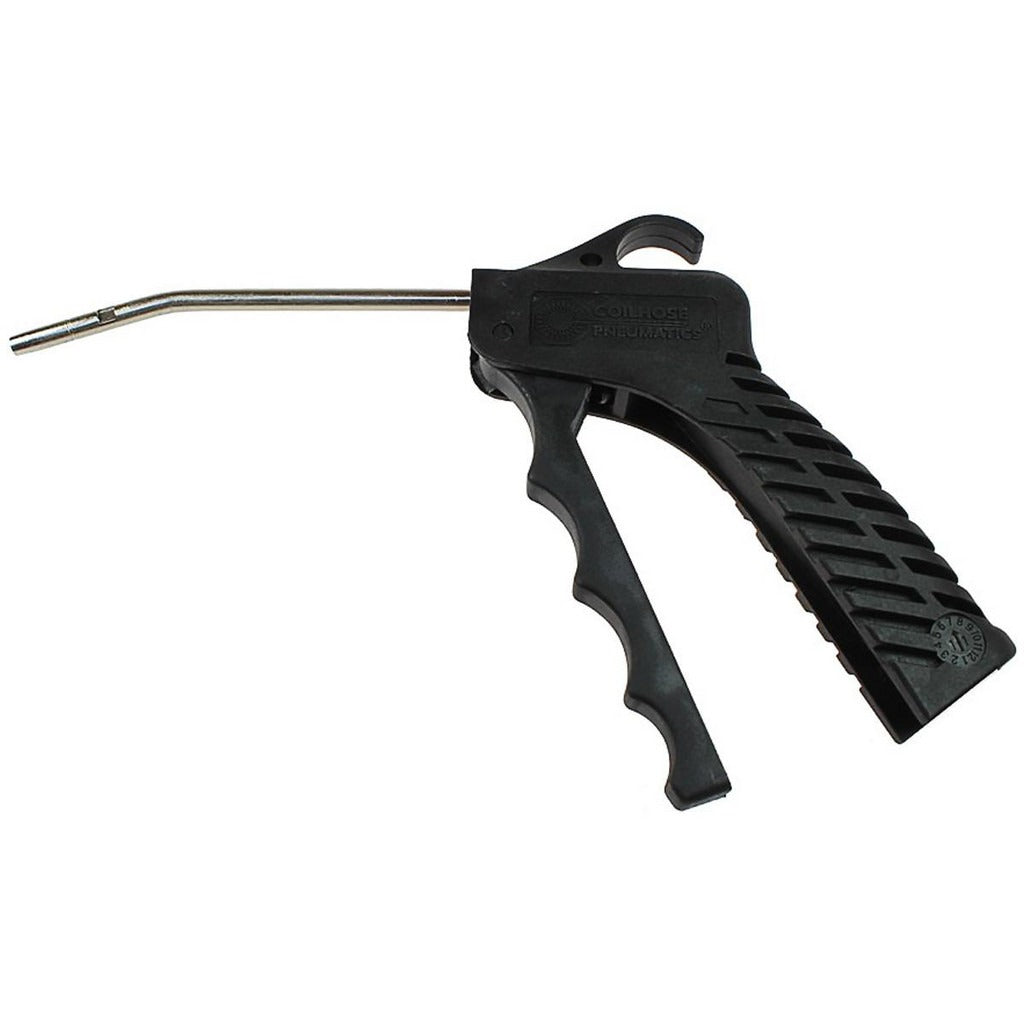

The COILHOSE PNEUMATICS 770-S-BAG is a pistol-grip air blow gun fitted with a bent fixed safety extension tube, designed for controlled, directed airflow in industrial and shop environments. The 1/4 NPT female inlet connects to standard compressed air lines, and the 5-inch tube delivers up to 10 SCFM of airflow. The bent safety tip is OSHA 1910.242(b) compliant, meaning it limits dead-end pressure to safe levels and reduces the risk of air injection injury. The ergonomic pistol grip reduces hand fatigue during extended use. Licensed technicians, machinists, and general shop personnel use this gun for blowing out debris, drying parts, and clearing work surfaces.

This blow gun suits general-purpose compressed air applications in automotive shops, HVAC service vehicles, manufacturing floors, and maintenance facilities. The safety extension tube configuration is required in many facilities to meet OSHA 1910.242(b) workplace standards. The bent tip aids access to tight or angled areas where a straight nozzle would not reach effectively. It is rated for operating temperatures from -40 degrees F to 175 degrees F, making it suitable for both cold-weather outdoor service and heated indoor environments.

Key Features

• OSHA 1910.242(b) and OSHA 1910.95 compliant safety extension tube
• Bent fixed tip for angled access in confined or obstructed areas
• Pistol grip body style for comfortable, extended one-handed operation
• 1/4 NPT female inlet fits standard shop air quick-connects and fittings
• 10 SCFM airflow capacity for effective debris clearing and part drying
• Wide operating temperature range: -40 degrees F to 175 degrees F

Compatibility

Designed as a direct-fit replacement or add-on blow gun for any compressed air system with a 1/4 NPT outlet connection. Suitable for shop air lines operating within standard industrial pressure ranges.

Installation Notes

Installation is performed by connecting the 1/4 NPT female inlet to a male-threaded air outlet or quick-connect fitting on the supply line. Depressurize and lock out the air supply before attaching or removing the blow gun. Use thread sealant tape on male NPT fittings to ensure a leak-free connection. Always point the nozzle away from personnel and wear eye protection during use, per OSHA 1910.95 noise and 1910.242(b) pressure guidelines.
