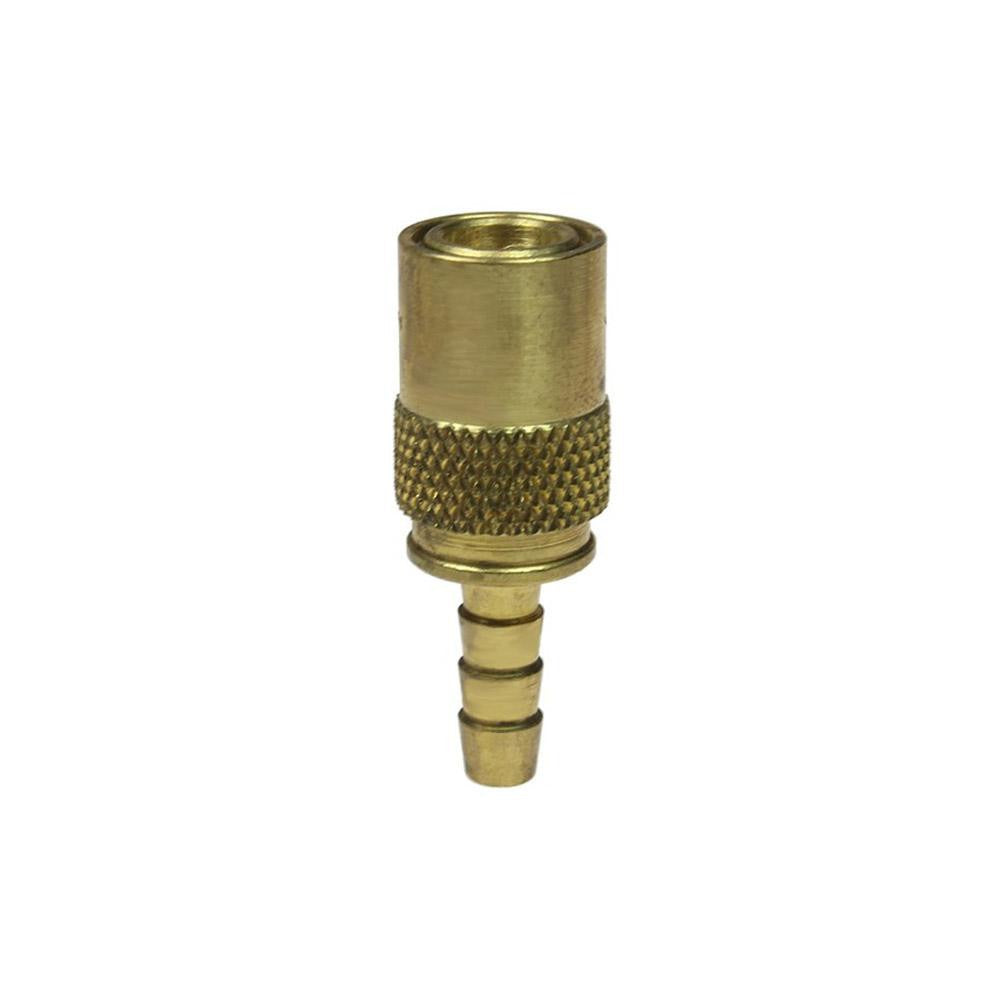

Coilhose Pneumatics 6-308 Pneumatic Coupler 3/8 in Brass

Product Description

The COILHOSE PNEUMATICS 6-308 is a straight pneumatic hose coupler designed for use in compressed air systems. It features a Moldflow interchange configuration and a hose barb thread type, allowing it to connect directly to hose ends without threaded fittings. The body measures 3/8 inches in diameter and accepts a hose with a 1/2 inch inside diameter. Constructed from brass, it provides solid corrosion resistance in typical shop and industrial air line environments. Mechanics, pneumatic tool technicians, and industrial maintenance crews install this type of coupler to terminate air supply hoses or create quick-connect drop lines at workstations and machinery.

This coupler is suited for use in both light industrial and commercial compressed air distribution systems. The Moldflow interchange standard ensures it mates with compatible Moldflow-series quick-disconnect bodies and plugs. The hose barb end slips over the inside diameter of a 1/2 inch ID hose and is typically secured with a clamp. Common installation scenarios include tool drops in assembly lines, garage air systems, and pneumatic equipment feeds where a reliable, reusable coupler-to-hose termination is required.

Key Features

• Straight coupler design for direct in-line hose termination
• Moldflow interchange type for compatibility with Moldflow quick-connect systems
• Hose barb thread type for secure push-on hose attachment
• 3/8 inch body diameter for standard air line sizing
• Accepts 1/2 inch inside diameter hose
• Brass construction for corrosion resistance in compressed air service

Compatibility

Designed as a Moldflow interchange straight coupler for use with 1/2 inch ID compressed air hose in pneumatic tool and air distribution systems.

Installation Notes

Installation is typically performed by pneumatic system technicians or industrial maintenance personnel. Depressurize and bleed down the air supply line completely before removing or installing any coupler. The hose barb end should be fully seated onto the hose and secured with an appropriate clamp to prevent blowoff under pressure. Follow applicable OSHA compressed air safety guidelines and equipment manufacturer recommendations during service.
