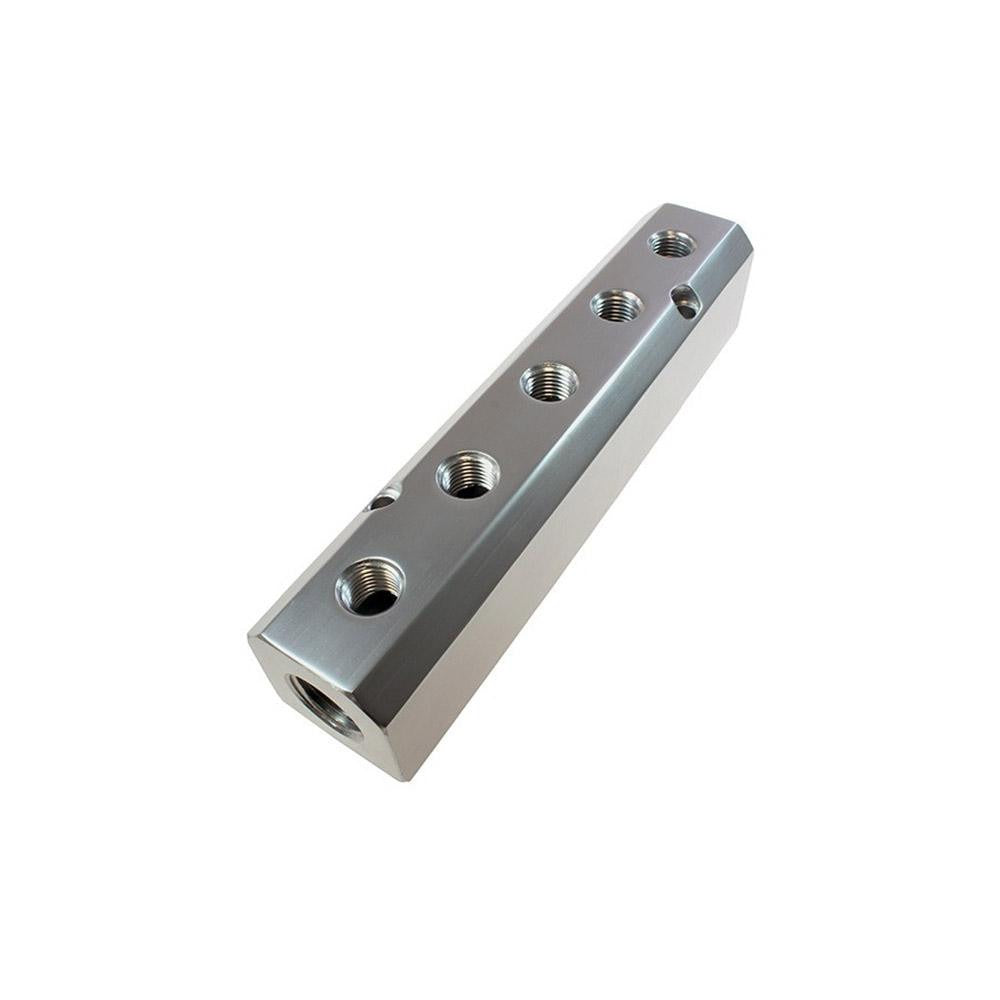

Coilhose Pneumatics 3054 Pneumatic Manifold 2 Inlet 5 Outlet

Product Description

The COILHOSE PNEUMATICS 3054 is an aluminum pneumatic manifold designed to distribute compressed air from a single supply line to multiple branch circuits. With two 1/2-inch NPT inlet ports and five 1/4-inch NPT outlet ports, this manifold centralizes air distribution in a compact, rigid body. The aluminum construction keeps weight low at 1.36 pounds while maintaining structural integrity under typical shop-air pressures. At 7.5 inches in overall length and 1.58 inches in both height and width, it fits neatly in tight panel or machine enclosures. Licensed pneumatic technicians and industrial maintenance mechanics install this part in compressed air systems requiring multi-zone distribution from a central supply point.

The 3054 manifold is suited for industrial, commercial, and production environments where a single compressed air line must feed multiple tools, actuators, or pneumatic circuits simultaneously. The five outlet ports are spaced 1.35 inches center to center, allowing standard fittings and tubing assemblies to connect without crowding. The two inlet ports provide flexibility for inline or looped supply configurations. This manifold is a practical solution for plumbing boards, automation panels, and air-tool drop systems where organized, multi-point distribution is required.

Key Features

• Two 1/2-inch NPT inlet ports and five 1/4-inch NPT outlet ports for multi-zone air distribution
• Aluminum body construction for lightweight durability
• Outlet port spacing of 1.35 inches center to center accommodates standard fittings without interference
• Compact overall dimensions: 7.5 inches long, 1.58 inches wide, 1.58 inches tall
• NPT thread type for compatibility with standard American pipe fittings
• Mounting holes (0.235-inch diameter) allow fixed panel or surface installation

Compatibility

Designed as an OEM-style replacement or direct-fit manifold for compressed air distribution systems using 1/2-inch NPT supply lines and 1/4-inch NPT branch connections in industrial and commercial pneumatic plumbing applications.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance mechanic. Depressurize and lock out the compressed air supply line before removing any existing fittings or mounting hardware. Apply thread sealant appropriate for pneumatic service to all NPT connections and tighten to fitting manufacturer specifications. Secure the manifold body using fasteners through the 0.235-inch mounting holes to prevent movement or vibration stress on connected tubing.
