Coilhose Pneumatics 3052 Pneumatic Manifold 5 Outlet Npt

Product Description

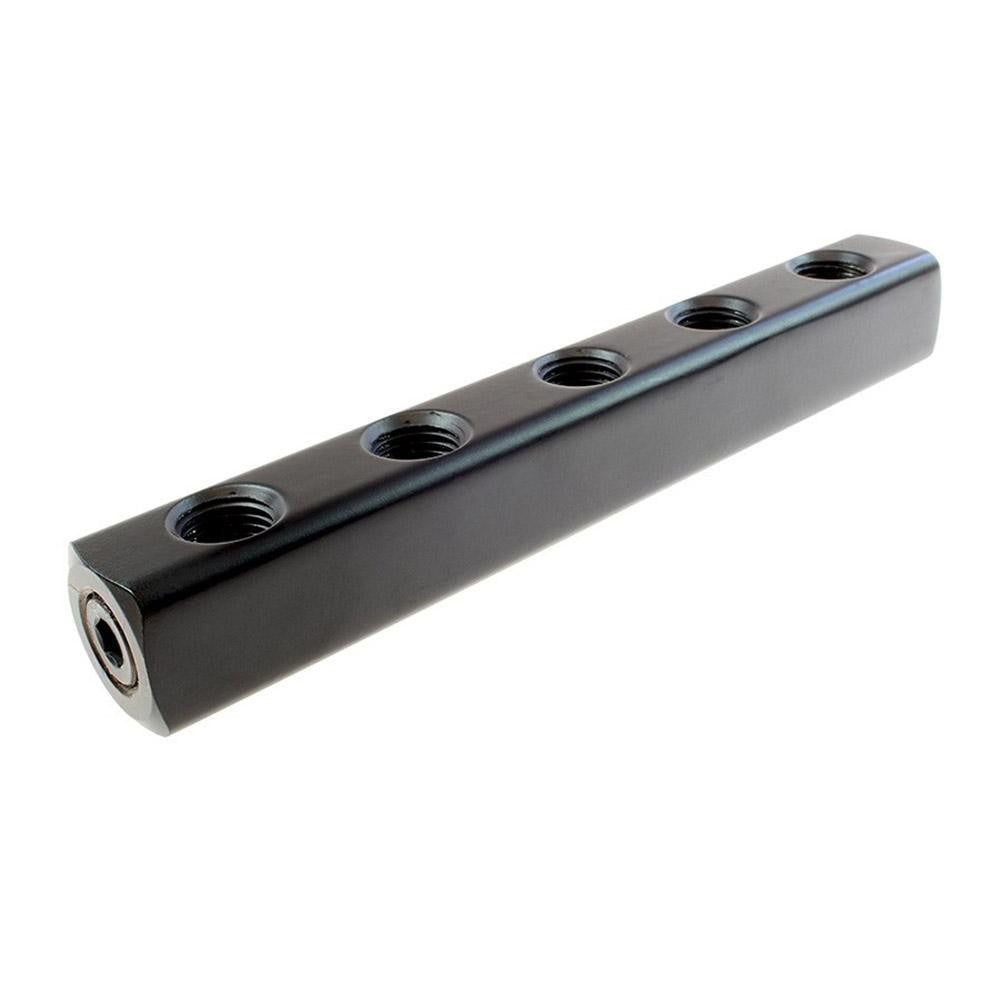

The COILHOSE PNEUMATICS 3052 is a pneumatic air manifold designed to distribute compressed air from a single inlet source to multiple outlet lines. Built with an aluminum body, it accepts 1/4 inch NPT connections at both the inlet and each of the five outlet ports. Overall dimensions are 6.25 inches in length, 0.81 inches in width, and 0.81 inches in height, making it a compact solution for tight panel or equipment installations. It weighs 0.3 pounds. This manifold is installed by pneumatic system technicians, industrial maintenance professionals, and HVAC mechanics who need to branch a single compressed air supply into multiple working circuits without additional fittings or tee assemblies.

The 3052 is suited for light industrial and trade applications where a single 1/4 inch compressed air supply must feed several downstream tools, valves, or actuators simultaneously. The five outlet ports are spaced 1.25 inches center to center, allowing standard push-to-connect or NPT fittings to be installed without crowding. Common install scenarios include pneumatic tool stations, air-operated control panels, and HVAC equipment bays where multiple pneumatic actuators share one supply line.

Key Features

• Single 1/4 inch NPT inlet port feeds five 1/4 inch NPT outlet ports simultaneously
• Aluminum body construction for lightweight, corrosion-resistant performance
• Compact footprint at 6.25 inches overall length and 0.81 inches height
• Outlet ports spaced 1.25 inches center to center for easy fitting access
• NPT thread type ensures compatibility with standard pneumatic fittings and tubing

Compatibility

Designed as an OEM-style replacement or new-installation manifold for pneumatic systems using 1/4 inch NPT compressed air distribution lines in light industrial and trade service environments.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance mechanic familiar with compressed air systems. Depressurize and lock out the compressed air supply before removing or installing any manifold component. Apply thread sealant rated for pneumatic service to all NPT connections and verify for leaks before returning the system to pressure. Ensure all downstream lines and fittings are rated for the operating pressure of the supply system.
