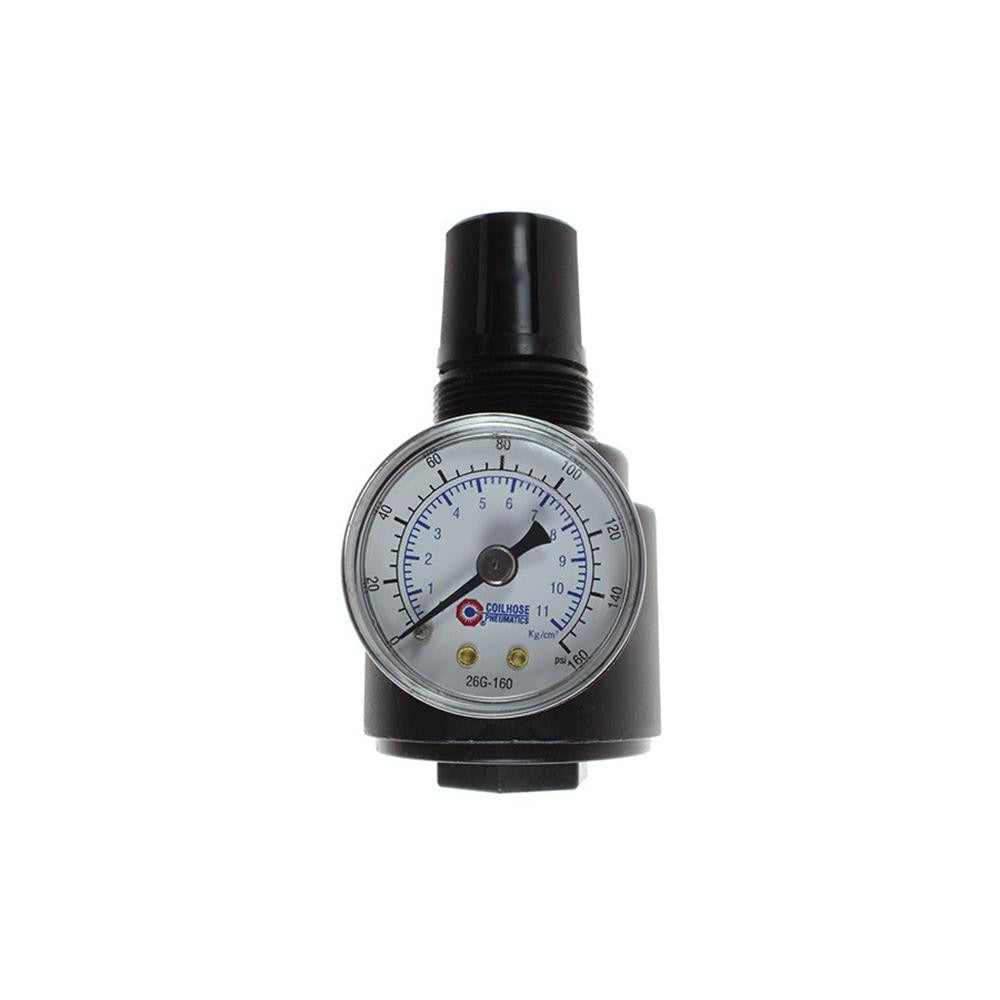

Coilhose Pneumatics 26R2-G Compact Air Regulator 1/4 Npt

Product Description

The COILHOSE PNEUMATICS 26R2-G is a compact inline compressed air regulator designed to control and reduce supply pressure in pneumatic systems. Built from zinc construction, it accepts a maximum supply pressure of 250 psi and regulates output across a 0 to 125 psi working range. Flow capacity reaches 60 CFM, making it suitable for tools, equipment, and distribution points that require steady, adjustable pressure. A built-in relief function vents excess pressure automatically. A pressure gauge is included, giving technicians an immediate visual of downstream pressure without adding a separate fitting. The 1/4 inch NPT port size keeps installation straightforward in standard compressed air lines.

The 26R2-G fits into light industrial, commercial, and trade service applications where a compact regulator is needed at a branch point, at a tool drop, or directly upstream of pneumatic equipment. Its small footprint makes it practical in tight panel or manifold installations. Compressed air system installers, pipefitters, and maintenance technicians typically specify this type of regulator when managing pressure zones within a shop or service vehicle air system. The included gauge port uses a 1/8 inch thread, compatible with standard gauge fittings.

Key Features

• Compact regulator design for space-constrained pneumatic installations
• 0 to 125 psi adjustable output range with 250 psi maximum supply pressure
• 60 CFM maximum air flow capacity
• Built-in relief function automatically vents excess downstream pressure
• Pressure gauge included; 1/8 inch gauge port thread for direct mounting
• 1/4 inch NPT end connections for standard compressed air piping
• Zinc body construction for durability in shop environments

Compatibility

Designed as an OEM-style replacement and general-use compact regulator for compressed air systems using 1/4 inch NPT connections with supply pressures up to 250 psi.

Installation Notes

Installation is performed by qualified pipefitters or pneumatic system technicians. Depressurize and lock out the compressed air supply completely before removing any existing regulator or fitting connections. Apply thread sealant rated for compressed air service to all NPT connections and verify for leaks before returning the system to operating pressure. Do not exceed the 250 psi maximum supply pressure marked on the unit.
