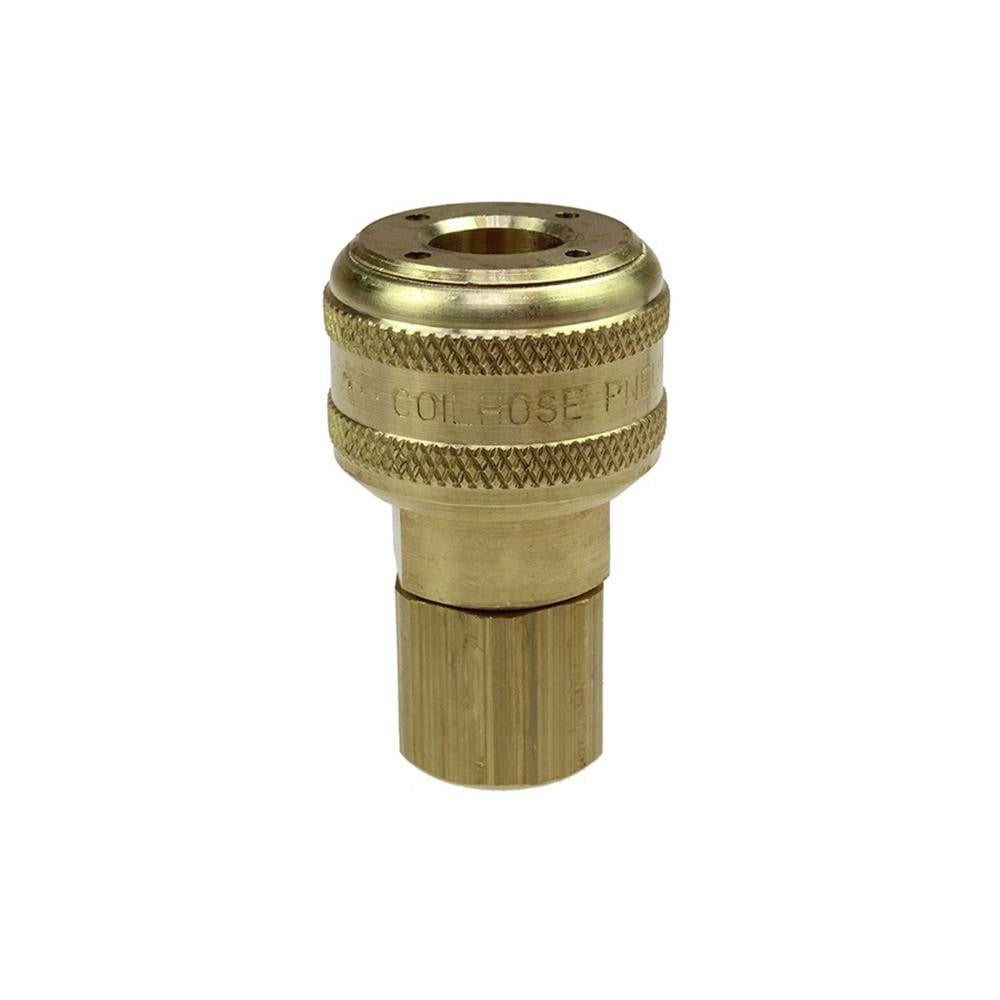

Coilhose Pneumatics 150A 1/4 Inch Fnpt Pneumatic Coupler

Product Description

The COILHOSE PNEUMATICS 150A is a brass pneumatic hose coupler designed for compressed air and pneumatic tool applications. Built to the Industrial Interchange standard, it accepts a 1/4-inch FNPT threaded connection and features a 1/4-inch body diameter. This coupler is rated for a maximum working pressure of 300 psi and handles temperatures from -40 degrees F up to 250 degrees F, making it suitable for a wide range of shop and field conditions. It is the female coupler half of a quick-connect fitting pair, installed inline on air hoses, manifolds, or equipment ports by mechanical contractors, HVAC technicians, and general trade professionals.

The 150A fits standard Industrial Interchange quick-connect systems, which are among the most widely used pneumatic coupling formats in North American trade and industrial settings. It is appropriate for use on portable air compressors, stationary shop compressors, and pneumatic tool drop lines. The threaded FNPT connection allows direct installation into pipe fittings, hose ends, and equipment ports. Both residential shop and light commercial service environments are typical install scenarios for this coupler style.

Key Features

• Industrial Interchange format for broad compatibility with standard pneumatic fittings and plugs
• 1/4-inch FNPT threaded connection for direct installation into standard pipe or hose end fittings
• 300 psi maximum working pressure suitable for most compressed air service applications
• Operating temperature range of -40 degrees F to 250 degrees F for year-round use
• Brass construction provides corrosion resistance and durability in pneumatic service

Compatibility

Designed for use with Industrial Interchange style pneumatic plugs and hose assemblies using 1/4-inch FNPT threaded connections. Compatible with standard compressed air systems operating within the rated pressure and temperature limits.

Installation Notes

Installation is performed by qualified trades or knowledgeable technicians familiar with compressed air systems. Always depressurize and bleed the air line completely before removing or installing any pneumatic fitting. Apply thread sealant appropriate for compressed air service to the FNPT threads before installation. Do not exceed the rated 300 psi working pressure in service.
