Cody Company 651R6-14X6X8 Insulated Register Boot R8

Product Description

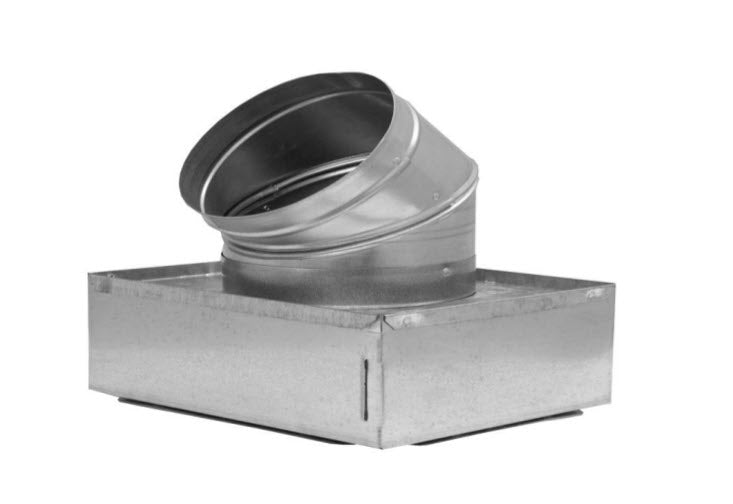

The CODY COMPANY 651R6-14X6X8 is an insulated register boot designed for residential and light commercial HVAC duct systems. It features an R8 insulation liner and a 45-degree adjustable elbow, allowing installers to direct airflow at the register opening without cutting additional fittings. The adjustable elbow accommodates common angle variations during rough-in, making it well suited for tight ceiling or floor applications where a straight boot will not align cleanly with the register opening. HVAC installers use this fitting to terminate flexible or rigid duct runs at supply air registers.

This register boot is appropriate for supply air distribution in forced-air heating and cooling systems. It is commonly installed at the end of a duct run where the transition from the duct to a wall, floor, or ceiling register is required. The R8 liner provides thermal and condensation resistance along the boot body, which is especially useful in unconditioned spaces such as attics, crawlspaces, and garages where duct surface temperatures can vary significantly.

Key Features

• R8 insulation liner reduces heat gain and condensation on the boot exterior
• 45-degree adjustable elbow allows field adjustment to align with register opening without additional fittings
• Designed for supply air register termination in residential and light commercial forced-air systems
• Suitable for installations in unconditioned spaces including attics and crawlspaces

Compatibility

Designed as an OEM-style replacement or new-installation register boot for residential and light commercial forced-air HVAC duct systems requiring a 45-degree adjustable elbow termination with R8 insulation.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and SMACNA duct construction standards. Power down the air handler and close the system dampers before connecting the boot to the duct run. Secure all connections with approved fasteners and seal joints with listed duct mastic or metal-backed tape per code requirements. Verify the elbow angle is set and locked before fastening the register to the boot collar.

Technical Specifications

• Insulation Rating: R8
• Elbow Angle: 45 degrees adjustable
• Boot Size: 14 x 6 x 8 inches

Standard Information

• Brand: CODY COMPANY
• Manufacturer Part Number: 651R6-14X6X8
